BenQ DC 2410 User Manual

Benq dc 2410: users manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

DC 2410
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC 2410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ DC 2410

Summary of Contents for BenQ DC 2410

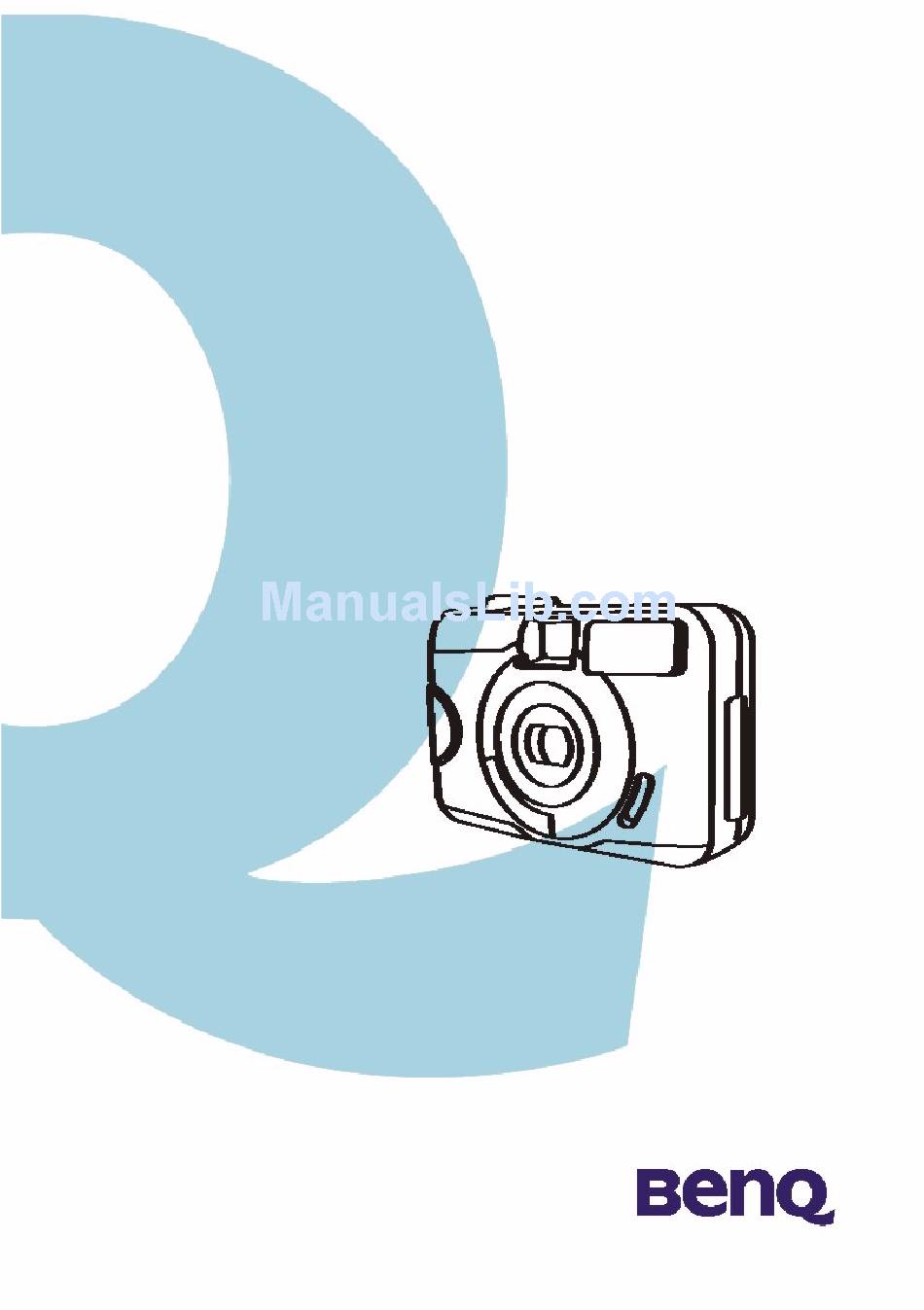

  • Page 1 DC 2410 User’s Manual...

  • Page 2: Taking Care Of Your Camera

    Disclaimer BenQ makes no warranty of any kind with regard to this material, including, but not lim- ited to, the implied warranties of merchantability and fitness for a particular purpose. BenQ assumes no responsibility for any error that may appear in this document. BenQ makes no commitment to update nor to keep current the information contained in this document.

  • Page 3: Table Of Contents

    BenQ DC 2410 User’s Manual 1. Touring your DC 2410 ... 1 1.1. Checking package contents ...1 1.2. Parts of the DC 2410 and their names ...1 1.2.1. Front View ...1 1.2.2. Rear View ...2 1.2.3. Top View ...2 1.2.4. Bottom View ...2 1.2.5.

  • Page 4: Benq Dc 2410 User's Manual 1. Touring Your Dc 2410

    OURING YOUR 1.1. Checking package contents The package should include the following items: DC 2410 digital camera 2 pcs of AA Battery 1.2. Parts of the DC 2410 and their names 1.2.1. Front View Shutter Button Mode Dial Self-timer Indicator LED...

  • Page 5: Rear View

    BenQ DC 2410 User’s Manual 1.2.2. Rear View Viewfinder Indication LED TFT LCD Monitor 1.2.3. Top View 1.2.4. Bottom View Battery/ Memory Card cover 1.2.5. Mode Dial and Focus Range Mode Dial Recording Mode ( Playback Mode ( Video Mode (...

  • Page 6: Preparing Your Dc 2410 For Using

    BenQ DC 2410 User’s Manual 2. P REPARING YOUR 2.1. How to Switch On or Switch Off The Camera Slide the "POWER" switch sideways and hold it a while to switch on the camera. Repeat the action above to switch off the camera.

  • Page 7: Insert And Remove The Sd Card

    BenQ DC 2410 User’s Manual Attach the Hand Strap: Please follow the illustrations. 2.2. Insert and Remove the SD Card Insert the SD Card (1) Switch off the camera. (2) Open the Battery / Memory Card Cover. (3) Insert the SD card into the card slot and press it down until you hear a click sound.

  • Page 8: Lcd Display Icon Definition

    BenQ DC 2410 User’s Manual 2.3. LCD Display Icon Definition Working mode Digital zoom Focus Range Battery status ) Battery power full ) Battery half drained ) Battery drained Memory card inside 2.4. Icon Index Working Modes Focus Range Flash Modes...

  • Page 9: Basic Photography

    DC 2410 SING THE The functions of DC 2410 are mainly composed of five modes: Recording mode, Playback mode, Video Mode, and Setup Mode. In this chapter, we will introduce the functions of DC 2410 according to these four modes.

  • Page 10: Working Mode

    BenQ DC 2410 User’s Manual Working Mode 3.1. Recording Mode Please set the Mode Dial at Recording Mode ( the below functions. I. Set Up Focus Range Before you take pictures, please make sure you set the Focus Switch at the correct focus range or the image may not be clear.
  • Page 11 BenQ DC 2410 User’s Manual b. Auto flash with red-eye reduction( using the flash and reduce the chance of red-eye reduction. c. Slow sync ( light to make good images in low light circumstances. Under this mode, it is suggested to use a tripod to make sure the camera is held still while taking the picture.
  • Page 12 BenQ DC 2410 User’s Manual VI. Set Up Image Size (Preset at 1600 x 1200) Step : To enter the setting mode. Step : To select and confirm the option. Step Four resolutions provided can be selected as follows: ) 2560 x 1920 (XL)
  • Page 13 BenQ DC 2410 User’s Manual VII. Set Up Image Quality (Preset at Fine quality) Step : To enter the setting mode. Step : To select and confirm the option. Step Three levels of image quality can be selected as follows:...
  • Page 14 BenQ DC 2410 User’s Manual VIII. Set Up Voice Memo (Preset at 10 SEC) Step : To enter the setting mode. Step : To select and confirm the option. Step With the Voice Memo, you can view the icon ( With the Voice Memo, the audio is stored in WAV file format.
  • Page 15 BenQ DC 2410 User’s Manual IX. Set Up Exposure (Preset at +0) Step : To enter the setting mode. Step : To select and confirm the option. The higher the value is, the brighter the image will be. Step : To select and enter the option.
  • Page 16 BenQ DC 2410 User’s Manual X. Set Up White Balance (Preset at Auto White Balance) Step : To enter the setting mode. Step : To select and confirm the option. There are five modes can be selected which are: ) Auto White Balance: The camera will adjust the white balance by itself.

  • Page 17: Playback Mode

    BenQ DC 2410 User’s Manual 3.2. Playback Mode I. Exploring An Image Step : To enter the setting mode. Step : To select and confirm the option. Step II. Displaying An Image Information Step : To select and enter the option.
  • Page 18 BenQ DC 2410 User’s Manual III. Playback of A Recorded Movie Clip Press Up ( ) and Down( record and press Right Direction Button ( You can press Right Direction Button ( the pause. IV. Thumbnail Images (Small Images) Display...
  • Page 19 BenQ DC 2410 User’s Manual V. To Delete Image(s) VI. To Format a SD Card Please insert a SD Card in advance. Follow the above steps, selecting "FORMAT" in step 3, "YES" in step 4. Step : To enter the setting mode.
  • Page 20 BenQ DC 2410 User’s Manual VII. Formatting the Built-in Flash Memory Please make sure no memory card is inserted. Refer to page 16 and follow the steps, selecting "FORMAT" in step 3 , "YES" in step 4. VIII. Set Up Slide Show (Preset at 1 second) Step : To enter the setting mode.
  • Page 21 BenQ DC 2410 User’s Manual IX. Setting Image Protection Step : To enter the setting mode. Step : To select and confirm the option. Step After above steps are done, please check if the ( TFT LCD screen. If it is not shown, please repeat the above steps. For cancelling this "PROTECT"...
  • Page 22 BenQ DC 2410 User’s Manual X. Printing Out Images without a PC (Preset : X0) Step : To enter the setting mode. Step : To select and confirm the option. After above steps are done, please check if the ( If it is not shown, please repeat the steps.

  • Page 23: Video Mode (Preset :10 Sec)

    BenQ DC 2410 User’s Manual 3.3. Video Mode (Preset :10 SEC) Please set the Mode Dial at Video Mode ( Setting the Recording Time of a Movie Clip 1. When 10, 20 or 30 seconds is selected, press the Shutter Button and the camera will start the recording and stop automatically according to the set time.

  • Page 24: Set Up Mode

    BenQ DC 2410 User’s Manual 3.4. Set Up Mode Please set the Mode Dial at Set Up Mode ( I. Set Up Beep Sound (Preset at On) II. Set Auto Power Off (Preset at 2 minutes) Step : To enter the setting mode.
  • Page 25 BenQ DC 2410 User’s Manual III. Set Date Stamp (Preset On) If this function is turned "ON", the date will be printed on the image. IV. Set Date Type Step : To enter the setting mode. Step : To select and enter the option.
  • Page 26 BenQ DC 2410 User’s Manual V. Date Set Up VI. Set Up Quick View (Preset at On) This can allow you to view the image on the TFT LCD Monitor right after you take a picture. Step : To enter the setting mode.
  • Page 27 BenQ DC 2410 User’s Manual VII. Set Up Language (Preset at English) VIII. Reset to Default Setting Step : To enter the setting mode. Step : To select and enter the option. Step : To select and confirm the option.

  • Page 28: Pc Dependent Features

    PC. 4.1. Installing digital camera software • If your operation system is Windows 98, please setup the DC 2410 driver first, if the operation system is Windows ME/2000/XP, then it's not necessary for you to setup driver in advance.

  • Page 29: The Software Of This Installation Cd

    BenQ DC 2410 User’s Manual 4.2. The Software of this Installation CD Software 1. PhotoBase 2. PhotoImpression 3. VideoImpression 4. PhotoPrinter Pro. 5. Microsoft DirectX 6. Acrobat reader Description Arcsoft PhotoBase, for you to find and organize your media-files efficiently. You can...

  • Page 30: Downloading The Image(S)

    BenQ DC 2410 User’s Manual 4.3. Downloading the Image(s) Under Windows Operating System (Windows 98/98SE/2000/ME/XP) Downloading Image(s) From Removable Disk 1. Turn on the PC. 2. Switch on the camera. 3. Connect the camera to the PC with USB cable under any working mode.

  • Page 31: Troubleshooting (Error Message Table)

    BenQ DC 2410 User’s Manual 5. T ROUBLESHOOTING Message CARD FULL MEMORY FULL CARD LOCKED (CARD ICON is BLINKING) LOCK NO IMAGE FILE ERROR MEMORY ERROR CARD ERROR USB ERROR LOW LIGHT! HAND SHAKE ICON LENS COVER RROR Cause There is insuffient card mem- ory capacity to store an image.

  • Page 32: Specifications

    BenQ DC 2410 User’s Manual 6. S PECIFICATIONS Image Sensor Lens Digital Zoom Viewfinder LCD Monitor Focusing Focusing Range Shutter Shutter Speed Exposure ISO Equivalent White Balance Flash Flash Range Self-timer Movie Clips Storage File Format 1/2.7” CCD with 3.34 Mega pixels f=5.1mm (35mm film equivalent : 34mm)

  • Page 33: System Requirments

    BenQ DC 2410 User’s Manual Image size Image Play Interface Power Source Dimensions (WxHxD) Weight FOR WINDOWS Extra-Large: 2560x1920 (by interpolated), Large: 2048x1536 pixels, Medium: 1600x1200 pixels, Small : 1280x960 pixels Single image / AVI play / Thumbnails / Slide show Digital output connector: USB 1.1...

  • Page 34: Technical Support

    ERVICE INFORMATION Technical support If you encountered problems using DC 2410 and the camera driver program, please send an E-mail (containing detailed descriptions of the problem you came upon, the hardware and software environment of your system) to the following addresses: USA: support-sc@BenQ.com...
  • Page 35 BenQ DC 2410 User’s Manual <Memo>...
