M-Sure MS-200 Series User Manual

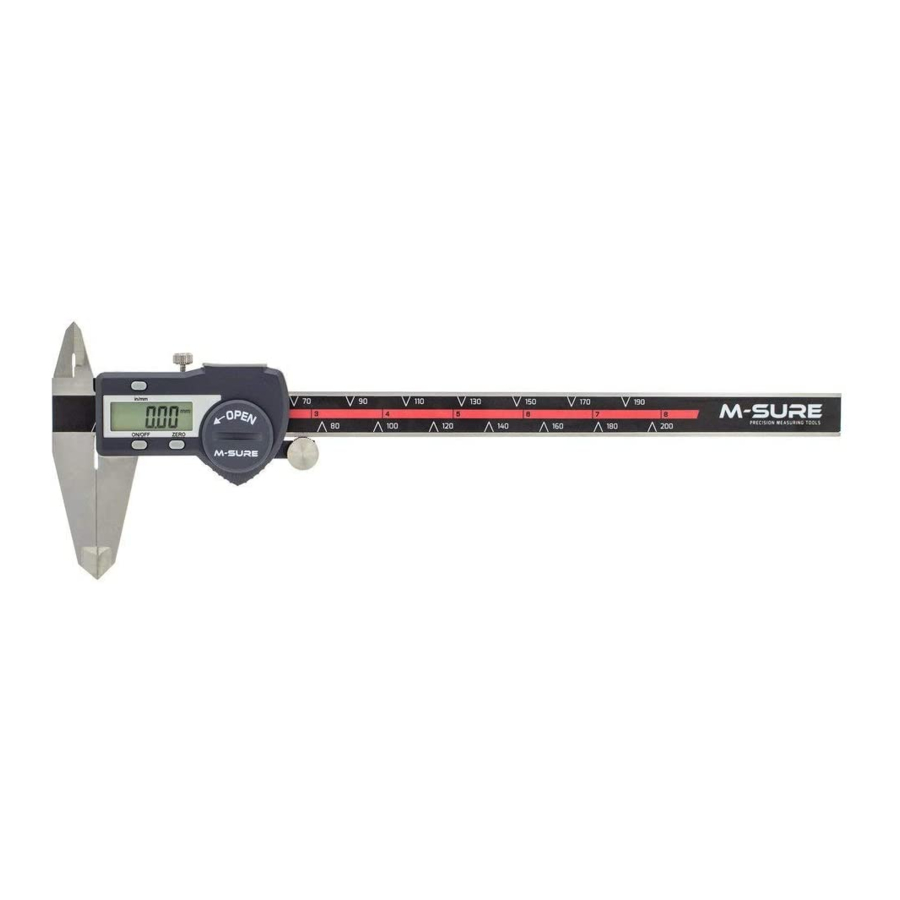

M-SURE Digital Calipers
Precautions
• Before using the Digital Caliper for the fi rst time, wipe the Caliper with a clean cloth ideally soaked with cleaning oil.
• The Caliper is a precision measuring instrument. Avoid using excessive force and treat with care.
• The fi tted battery is intended for the factory test procedure and therefore may not meet the specifi ed battery life.
• Avoid exposure to all liquids, excessive humidity or temperature.
• Avoid exposure to bright sunlight.
• Never apply voltage on any part of this Digital Caliper or electric engrave
the Caliper.
• Remove the battery if the Caliper is not being used for a long period of time.
• Never use solvents to clean the Caliper, only use a soft cloth with cleaning oil.
1
2
10
8
9
a. Check the measuring surface is clean, switch on Caliper.
b. Ensure the locking screw is loose and close Caliper. If the display is not
reading zero, press zero button.
c. Choose the display units as required (mm or inch).
d. Close Caliper on workpiece to take desired measurement. Do not use
excessive force.
Battery Replacement
1
1. Insert the key into the battery cover.
2. Twist to unlock. DO NOT use
excessive force.
7
6
6. Insert the replacement battery with
its edge against the side battery contact.
7. Press down on the opposite edge.
www.m-sure.co.uk - Allendale Group Ltd, Pindar Road, Hoddesdon, Hertfordshire. EN11 0BZ.
Images & Content ©2020 Allendale Group Limited. E&OE - Specifi cations subject to change without prior notice.
4
3
6
6. Thumb Wheel
1. Internal Jaw
7 7. Battery Cover
2. Display
8. Function Buttons
3. Locking Screw
9. External Jaw
4. Beam
10. Step Measurement
5. Depth Bar
2
3. Lift out the battery cover.
8. Locate the two lugs on the battery
cover with the two slots on the Caliper.
Insert the battery cover.
5
3
4. Remove the battery.
be used)
5. Locate the side spring battery contact.
8
9. Twist to lock. DO NOT use excessive
force.
Part No: MS-200 Series
Doc V: 1.0
External Internal
Step Depth
Internal
measurement
on long length
Calipers.
Use preset function
when available.
4
5
(A magnet tip tool can
9
