Quic-Release
®
Model QR-SOFD-2
Parts and Information Manual
NOTE:
This mounting device has been designed for use with QUIC-RELEASE gas cylinder brackets,
Models QR-MV(manual 3030PM1) and QR-GH (manual 3030PM2).
Important: Bearing Blocks (39) must be installed to meet SAE compliance.
Easy - Operating Assembly
Figure 1
ZICO
®
3030PM26
Advertisement
Related Manuals for Zico Quic-Release QR-SOFD-2
Summary of Contents for Zico Quic-Release QR-SOFD-2

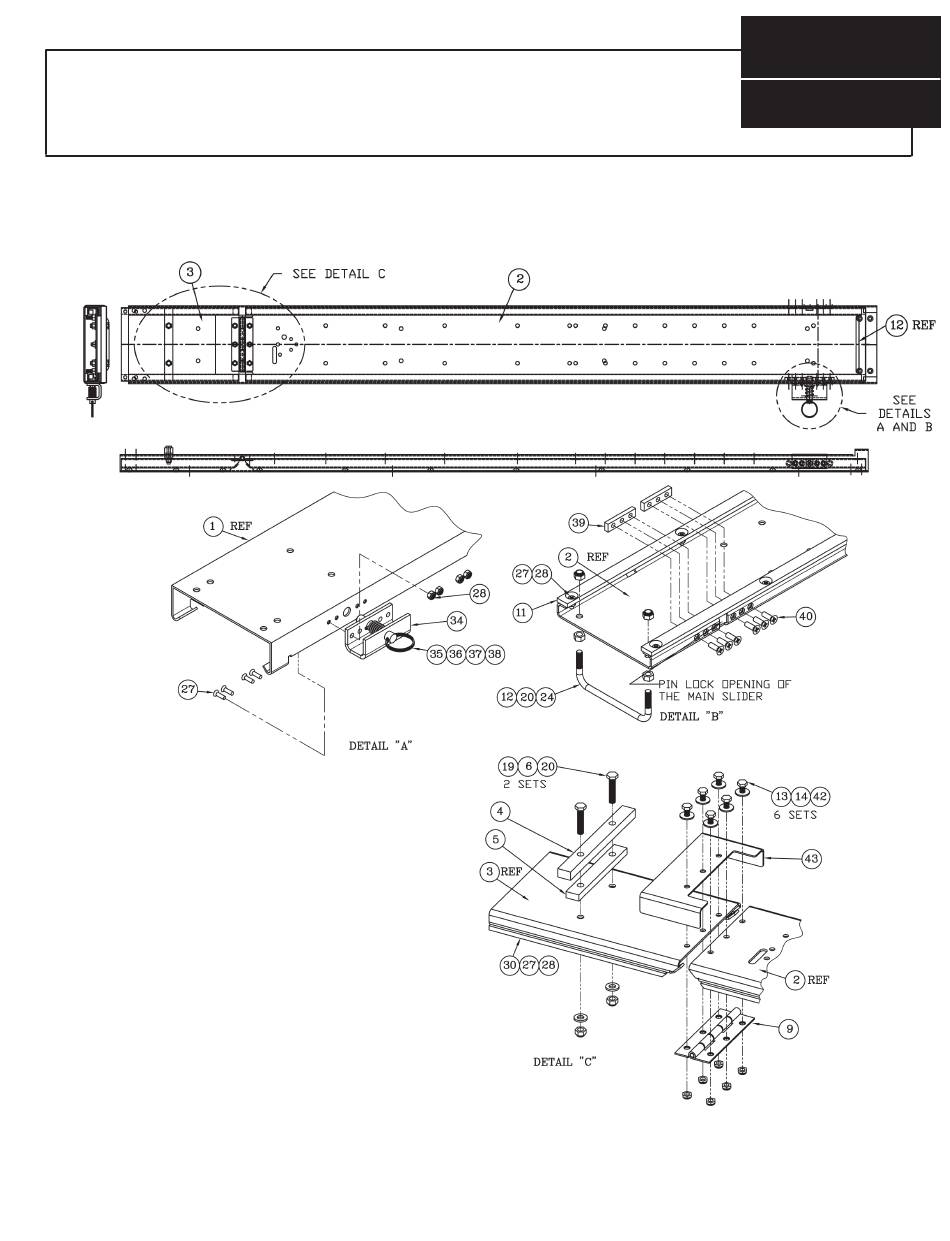

- Page 1 ZICO ® Quic-Release Easy - Operating Assembly ® Model QR-SOFD-2 3030PM26 Parts and Information Manual NOTE: This mounting device has been designed for use with QUIC-RELEASE gas cylinder brackets, Models QR-MV(manual 3030PM1) and QR-GH (manual 3030PM2). Figure 1 Important: Bearing Blocks (39) must be installed to meet SAE compliance.
- Page 2 ITEM PART NO. DESCRIPTION QTY. 3030-160-101 Stationary Housing 3030-160-103 Slider, Main 3030-160-105 Slider, Extension 3030-160-107 Stop Bar 3030-160-109 Spacer Block 9014-183100 5/16 Flatwasher, GR8 3030-160-117 Hinge, Ref: MMC 15665A336 3030-160-125 Wear Strip, Main 3030-160-123 Handle, SS (MMC 11665A31) 9015-102510 Screw, 1/4-20 x 5/8, Hex Hd. 9013-172501 Hex Nut, 1/4-20 Nylon Low-Pro 9010-103124...
- Page 3 Page 3...
- Page 4 Page 4...
- Page 5 Page 5...
- Page 6 Note: Numbers in parentheses correspond to numbers in Parts List for ease of assembly. I. Preparing the QR-SOFD-2 1. Roughly position the QR-SOFD-2 in the apparatus. See Figure 3 (with QR-MV) or Figure 4 (with QR-GH) for overall height dimensions. Note that these dimensions do not include the Gas Cylinder. 2.
- Page 7 Mounting Model QR-GH models to the QR-SOFD-2 Note: See Figure 4 for the following steps and refer to the QR-GH manual. 1. Position the bracket as shown. 2. Mount the bracket using 6x GR5 5/16-18 Hex Head Screws (26), washers (44) and Nuts (20). 3.
- Page 8 TOLL FREE: 800-711-3473 10 West College Avenue, P.O. Box 337, Yardley, PA 19067-0587 • (215) 493-3618 • FAX: (215) 493-1401 Copyright Ziamatic Corp. 10-20 *ZICO is a registered trademark for fire, safety and marine products made by Ziamatic Corp. Page 8...
