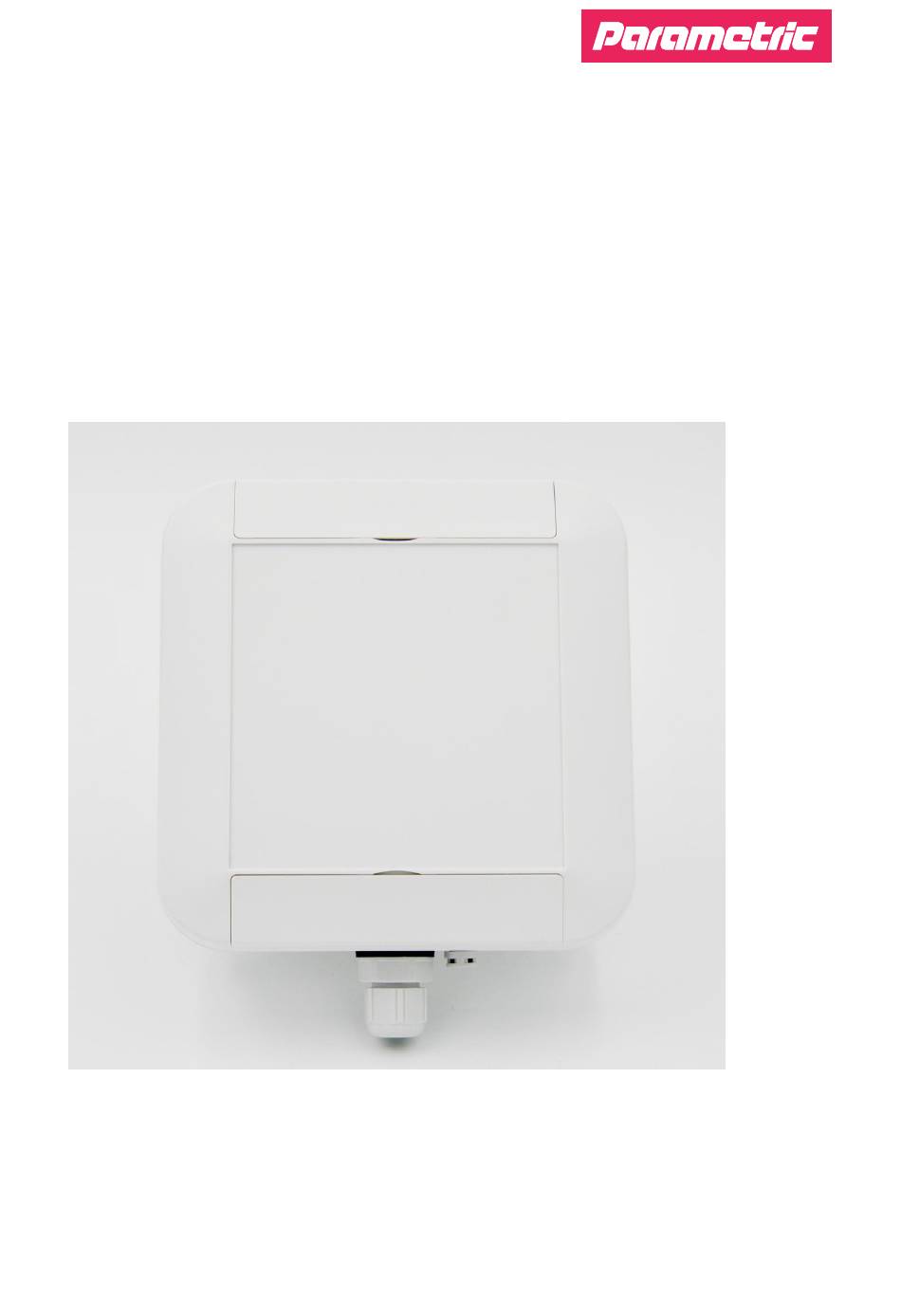

- Page 1 QUICKSTART GUIDE LoRaWAN™ Radar Traffic Counter TCR-EU868 TCR-US915 TCR-AU915 TCR-AS923 TCR_Quickstart_Guide_en-00...
- Page 2 • Connect the sensor to your Computer with a USB Cable using the Config Port. • Download Parametric Device Explorer from https://www.parametric.ch/downlo ads/ www.parametric.ch/product/tcr...
-
Page 3: Electrical Installation
AWG (0.2 – 0.75mm • Guide the cable through the cable gland. • Before closing the casing, make sure that the two components are aligned as depicted. • The cable gland is pointing downwards and should be fastened to ensure water protection www.parametric.ch/product/tcr... - Page 4 • WPMB Universal Mounting Bracket can be attached with 2 screws. • Optional MT40 tiltable pole mount needs to be attached to the TCR-S. www.parametric.ch/product/tcr...
-
Page 5: Optimal Placement
TCR-S are 1D sensors measuring Traffic along a virtual line. The device can be directed horizontal or with a tilt up to -40 Installation scenarios Counting bicycles Place at saddle height Counting people: Place at hips height Counting cars: Place at door handle height www.parametric.ch/product/tcr... - Page 6 Counting functionality can be checked by 2 direction leds. • RTL LED blinks when traffic detected from right • LTR LED blinks when traffic detected from left If both LEDs are blinking, the device is trying to connect to the LPWAN. www.parametric.ch/product/tcr...
