Functional description RF TOUCH for Recticel, 23.07.2013

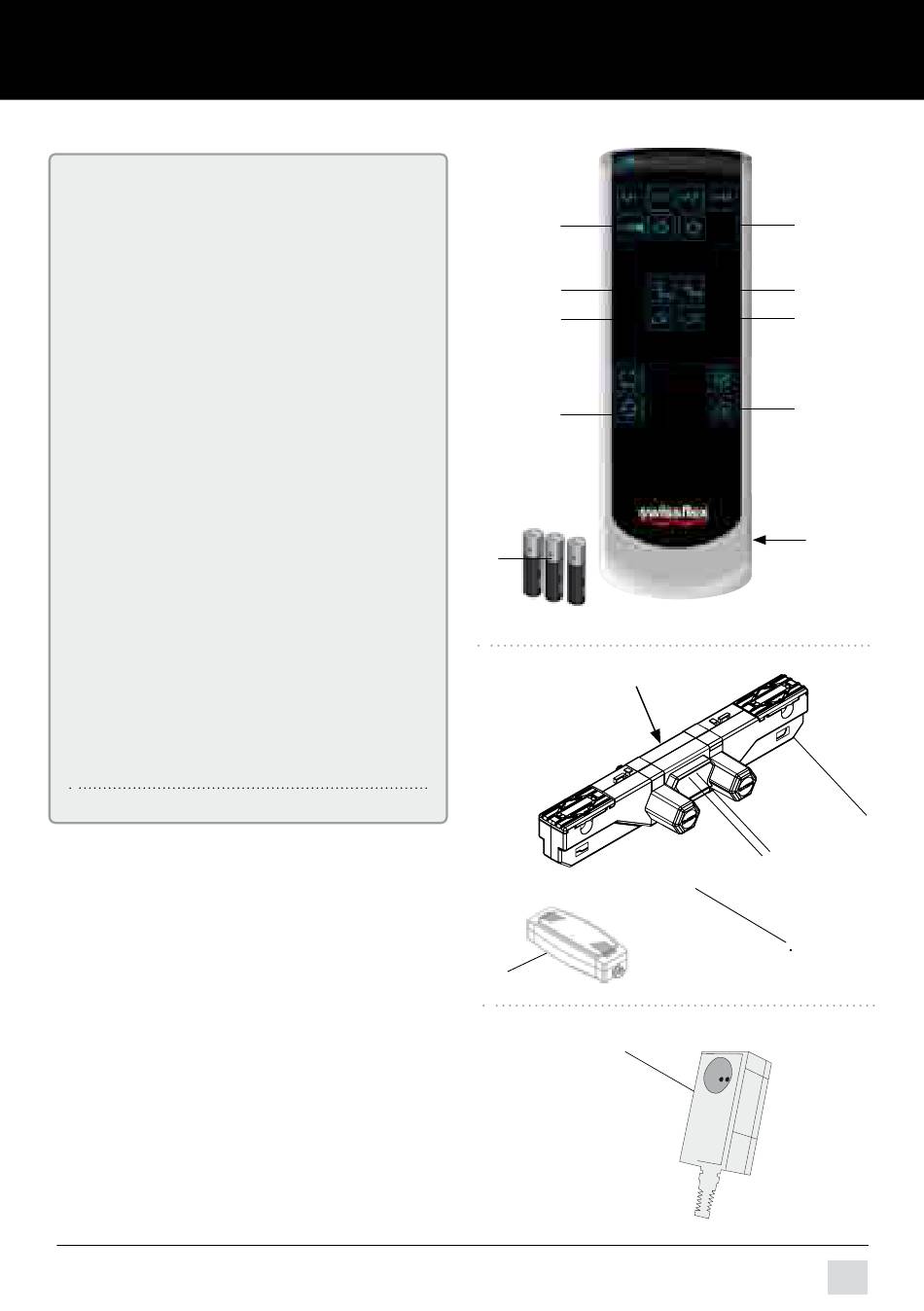

Key
1
Radio remote control
2
1 Pocket lamp
3
4
2 All motors «up»
5
3 All motors «down»
6
4 Control system back section «up»
7
5 Control system back section «down»
8
6 Control system thigh section «up»
9
7 Control system thigh section «down» 10
11
8 User socket on / off
12
9 Key blocking (child safety device)
13
10 Battery compartment
14
(on the back of the radio remote control)
15
In the battery compartment: red teach-in
16
17
button
18
19
11 3x AAA-Battery (included in the delivery)
20
21
Motor control
22
12 Connection for mains supply unit / mains
23
24
cable
25
13 Teach-in button / emergency lowering button
26
(on the external radio receiver)
27
14 Connection for external radio receiver
28
29
15 Switching power supply
30
31
16 Battery compartment for emergency
32
lowering (2x 9V)
(only connect if required)
17 User socket (optionally)
12
Operating instructions
®
Function
Memoryposition 1
Memoryposition 2
Memoryposition 3
Memorposition 4
Pocket lamp
Reset M1 – M4 up
Reset M1 – M4 down
Floor light
no function
Actuator M1 up
Actuator M1 down
no function
no function
Actuator M2 up
Actuator M2 down
no function
no function
Actuator M3 up
Actuator M3 down
no function
no function
Actuator M4 up
Actuator M4 down
no function
Synchro
no function
no function
Memory preset key
power outlet
no function
no function
Child protection
1, 2
4
6
8
10
14
