Owner's
Manual
Airgle

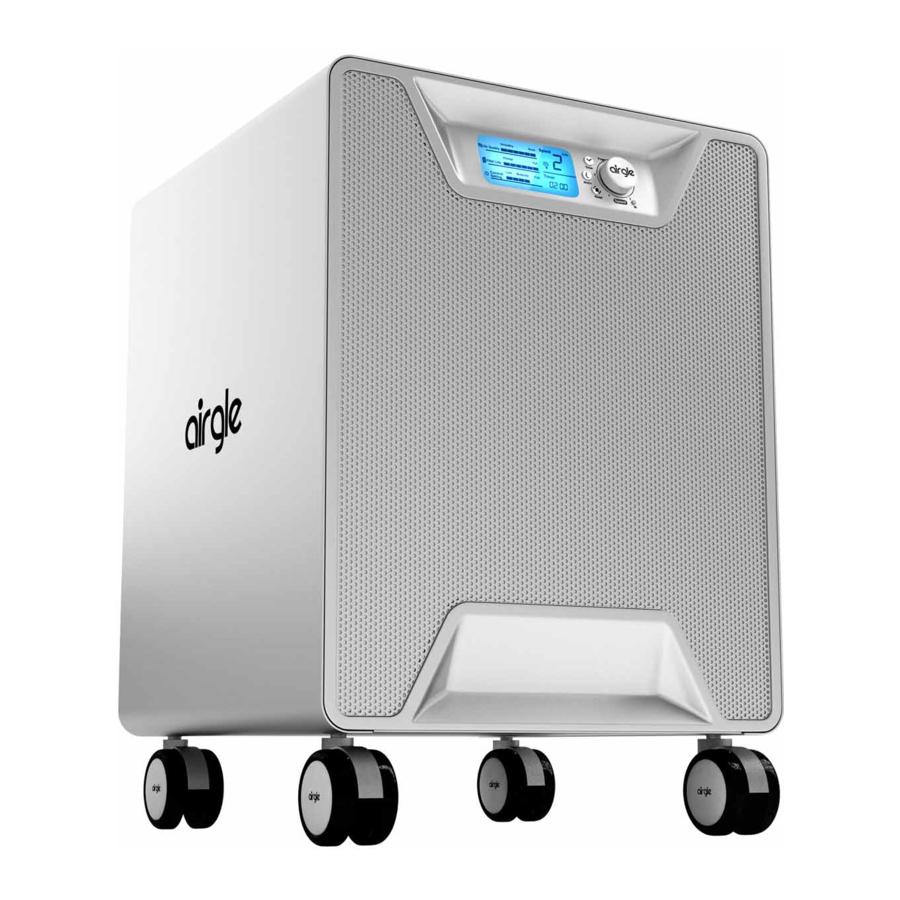

Room Air Purifier (Model: AG600)
®
Airgle
Clean Room Air Purifier (Model: AG900)
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airgle AG600

Summary of Contents for Airgle AG600

  • Page 1 ® Owner’s Manual Airgle Room Air Purifier (Model: AG600) ® Airgle Clean Room Air Purifier (Model: AG900) ®...

  • Page 2: Table Of Contents

    Airgle® Mobile Applica�on ....................11 Installing the App ..........................11 Get Started with the App ......................... 12 Adding an Airgle Device (AP Mode) ....................14 Control a Single Airgle® Device ......................16 Controling Mul�ple Airgle Devices ....................18 Use the Automa�on Features ......................20 Limited Warranty ......................

  • Page 3: Important Safety Precau�Ons

    The rated voltage specified on the data plate at the bo�om of the device must match the local AC outlet voltage. If the rated voltage specified on the data plate on the Airgle® Air Purifier is 100-120V, it may only be plugged into a 100-120V AC outlet and if the rated voltage specified on the data plate is 220-240V, into a 220-240V AC outlet.

  • Page 4: Ag600/900 Air Purifier Systems

    AG600/900 AIR PURIFIER SYSTEMS Medical Grade Air Filtra�on Technology for Microbes | Chemicals | Par�cles in Cri�cal Areas The Airgle AG600/900 air purifiers are specifically engineered for airborne infec�on control. Those who suffer from severe allergies, asthma and cri�cal respiratory problems will experience acute relief a�er use.
  • Page 5 AG900 I NCLUDED AND REINSTALLED OMPONENTS Main Housing Titanium Pro Module (Preinstalled) ® cHEPA Filter (Preinstalled) Gas & Odor Filter (Preinstalled) Rear Door (Preinstalled) Casters (Not Installed) NSTALLING THE NCLUDED ASTERS 1) Flip the machine over onto a blanket or box to prevent the surface from ge�ng scratched. Carefully insert the caster stem by pushing it straight down into receptor tube.

  • Page 6: Using The Air Purifier

    USING THE AIR PURIFIER The Airgle® system is equipped with a state-of-the-art control panel. This advanced control panel allows you to assess the unit’s status with one quick glance. CONTROL KNOB SETTINGS Mode AG600/AG900 Control Panel 1. Timer: Press this bu�on to set the �mer for up to 12 hours of con�nuous opera�on. The �me shows on the bo�om right of the LCD display on the le�-hand side of the panel.

  • Page 7: Opera�On Display

    5. IR: This infrared receiver is used by your remote control to change unit se�ngs. OPERATION DISPLAY 1. Air Quality: The Airgle® system is equipped with an advanced air quality monitoring sensor. The Air Quality Gauge displays the quality of the air in the room – the air you breathe. The six status bars indicate the quality from Unhealthy (one bar) to Good (six bars).

  • Page 8: Advanced Func�Ons

    This se�ng should meet air purifica�on needs in most environments. 1. When you use Models AG600/AG900, make sure the units are powered on (plug in the units and confirm the knob is at the “Speed 1 to 5” posi�on).
  • Page 9 APPENS IN When the unit is set on High, the sensor (on the side of the unit) is more sensi�ve to the environment. The system will auto-ac�vate when it detects small amounts of par�cles in the air. Since it is more responsive to these small amounts of par�cles, it will ac�vate frequently, and this will shorten the life of the filter.

  • Page 10: Using The Handheld Remote

    4. Timer: Set Timer from 1 to 12 hours. The infrared receiver of the Airgle® system is located in the right- hand bo�om corner of the control panel. In order to get the best signal transmission, the remote control should be pointed at the control panel when pressing any bu�on on the remote.

  • Page 11: Airgle® Mobile Applica�On

    Launch the Apple app store on your device and in the search bar, enter "Airgle" and click Search (a). Use the "Get" bu�on to download the app. b. Once the app is installed, launch the app and click the "Register" bu�on to set up your Airgle account (b).

  • Page 12: Get Started With The App

    Launch the Google Play store on your device and in the search bar, enter "Airgle" and click Search. Use the "Install" bu�on to download the app(a). b. Once the app is installed, launch the app and click the "Register" bu�on to set up your Airgle account(b).
  • Page 13 On the Add Device screen, click on the "Air Purifier" image (b). c. Power on your Airgle® and follow the instruc�ons on the app to connect the device to WiFi. This can be done by pressing and holding the "Reset" bu�on on the control panel for more than 5 seconds.

  • Page 14: Adding An Airgle Device (Ap Mode)

    ADDING AN AIRGILE DEVICE (AP MODE) e. Add your device to advanced se�ng (AP Mode) (a). 1. The default networking mode is "EZ Mode". 2. If you have different router and se�ng, you will need to connect via AP Mode by click the "Net Pairing Mode"(1) at the upper right corner of "EZ mode"...
  • Page 15 Use your mobile APP to connect the mobile phone WIFI to the product hotspot. The product hotspot WIFI name should be "SmartLIFE-XXXX". The selected network then prompts to con�nue adding products. Page | 15 of 28...

  • Page 16: Control A Single Airgle® Device

    CONTROL A SINGLE AIRGLE® DEVICE Now that your Airgle® AG600/900 device is connected to your mobile app, you can control the air purifier remotely from your phone. a. Start by clicking on your device name(a). You can then control your device using the bu�ons on the Control tab (b).
  • Page 17 g. A�er comple�ng the se�ngs, the product can be turned on and off regularly at the set �mes and days (5). Page | 17 of 28...

  • Page 18: Controling Mul�Ple Airgle Devices

    CONTROLING MULTIPLE AIRGLE DEVICES If you have other Airgle® devices in the same loca�on, you can control groups or all of them using the mobile applica�on with a single click or automa�on. Each group contains up to 100 devices and mul�ple groups can be created.
  • Page 19 5. Enter a descrip�ve group name which will be easy to recognize on the "My Device" page. 6. You can now view the devices in the group in "All Devices". (There is a group symbol a�er the group name for iden�fica�on) (6). By clicking on this, you can control the group of devices with a single click like powering on/off, adjus�ng the fan speed and other func�ons.

  • Page 20: Use The Automa�On Features

    4. Choose a device or group of devices in the "All Devices" list (4). If you do not see your device listed, ensure you've added it to your account by following the direc�ons in the ADD THE AIRGLE® DEVICE TO YOUR APP sec�on. Page | 20 of 28...
  • Page 21 5. Now that you've selected the device/group of devices for the shortcut, you can select the func�on to be performed using the shortcut. In this example, let's choose "Power" to power on/off the device (5). 6. A�er choosing "Power", you are given the two op�ons of on or off (6). Make your selec�on and click "Save".
  • Page 22 8. A�er selec�ng "Next" on the previous screen, you will then need to set the condi�ons under which your shortcut will run. 9. Finally, you will choose how your shortcut will be displayed on your Smart page. You can edit the name of the short cut for easy reference later, set the color of the �le, and whether it will be displayed on the Smart page (8).
  • Page 23 An "Automa�on" is a series of events that will happen automa�cally based on condi�ons you define. For example – you could create an automa�on to power off any devices a�er 9 PM. 1. Click "Automa�on" tab in the Smart page to get started and click the "+" bu�on (1). 2.

  • Page 24: Limited Warranty

    COMMERCIAL USE Airgle® AG600 Room Air Purifier and AG900 Clean Room Air Purifier are warranted for a period of twelve (12) months from the date of purchase for commercial use. WHAT IS NOT COVERED BY THIS WARRANTY This warranty does not cover the following: Defects resul�ng from damage caused by repairs, service, or altera�ons to the appliance...

  • Page 25: Service

    SERVICE For service under this Limited Warranty or for informa�on you may need about the product, please visit our service website at www.airgle.com/service-and-support/ or call our service hotline at (866) 501-7750. User Servicing Instruc�ons 1) Risk of fire. Do not replace a�achment plug. Contains a safety device (fuse) that should not be removed.

  • Page 26: Specifica�Ons

    SPECIFICATIONS Airgle Room Air Purifier Airgle Clean Room Air Purifier Model Name: (AG600) (AG900) Maximum Clean air delivery 200cfm 400cfm Fan Speeds: 1 to 5 1 to 5 Noise(dB): 32 to 65 32 to 68 Power Consump�on (With 1.2W (Standby) to 56W 1.2W (Standby) to 120W...
