V.20200313
Audax Body Worn Video System
Chest Camera - User Guide
1. System Components
The system is supplied complete with the following:

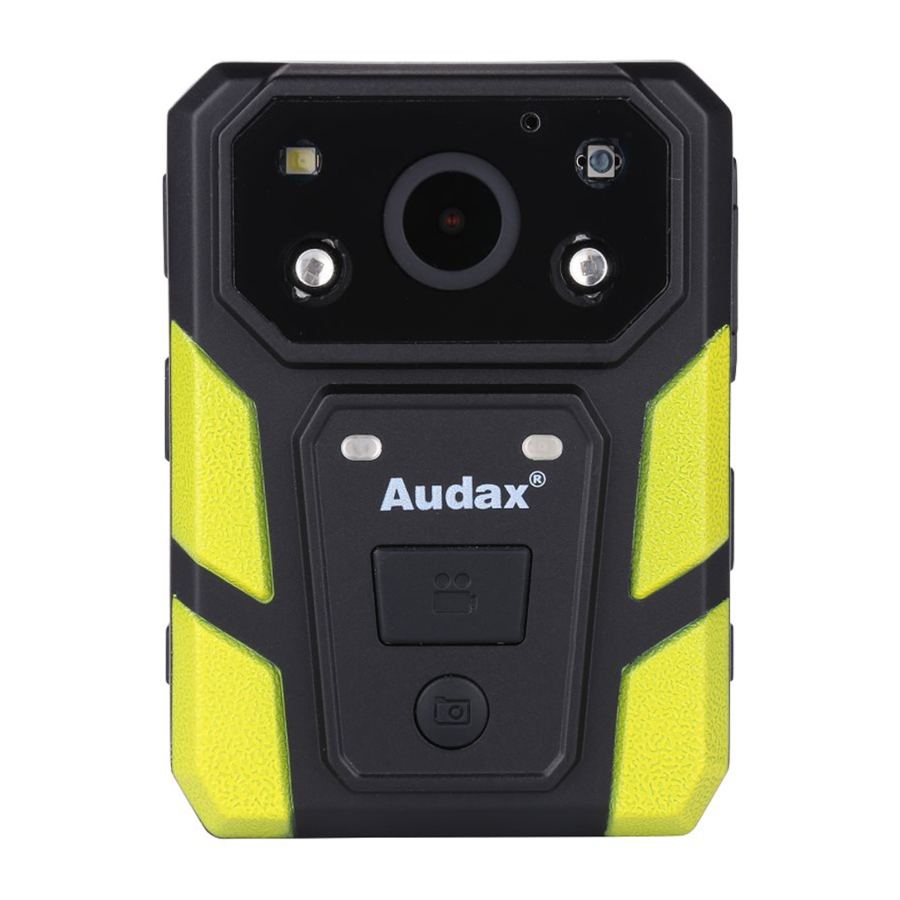

A. Chest Camera (including Screen)
B. Internal (non-removable) 32Gb Solid State memory
C. Universal metal clip with 360° rotation
D. USB 2.0 cable
E. Wall Socket USB Charger
2. System Features
• Full HD video recording
• Solid State memory
• Still image capture
• Audio
• IR (Auto or Manual)
• GPS
• 140° Wide Angle Lens
• Secure, password protected files
• IP67
Advertisement
Related Manuals for AUDAX 19-1
Summary of Contents for AUDAX 19-1
- Page 1 V.20200313 Audax Body Worn Video System Chest Camera - User Guide 1. System Components The system is supplied complete with the following: A. Chest Camera (including Screen) B. Internal (non-removable) 32Gb Solid State memory C. Universal metal clip with 360° rotation D.
-
Page 2: Notes / Warnings
The software will not allow access to settings and downloading without using this password. Audax recommend that this Password is re-set and safely recorded at the earliest opportunity. b. The “Replay” Menu has the password set as 000001 and this can also be changed. - Page 3 4. Views a. Power – RED LED shows the device is charging b. Work – GREEN LED shows the device is ON (when Recording, this LED will show RED) Front a. Top left – White light filter Top right – IR Sensor Centre –...
- Page 4 5. General System Operation (please refer to buttons listed above) a. Power On/ Off 1. Press the POWER ON / OFF button for 1 second; the camera will be turned on and enter the standby mode (the device will vibrate). IMPORTANT NOTE: Please also see section 6 para r regarding the “LCD auto off”...
- Page 5 e. Video Playback The device has been designed and manufactured with a one-touch playback button and quick playback button. When in the “standby” state, press the PLAYBACK button to enter the playback menu. IMPORTANT NOTE: Playback of video, still images and audio only recordings are only available once the correct 6 digit alpha/numeric Password has been entered.
- Page 6 6. Parameter Settings Press the MENU button to go to the “SETUP” screen in order to change parameter settings. a. Resolution Select RESOLUTION (will be highlighted in RED) and select OK. This gives you the option to change the resolution settings. There are seven options to select from: 2560 x 1080 –...
- Page 7 c. Video Duration Select VIDEO DURATION (will be highlighted in RED) and select OK. This gives you the option to change the video file duration times. There are four time intervals to select from: 5 / 10 / 15 / 30 minutes Press “Up”...
- Page 8 f. Volume Select VOLUME (will be highlighted in RED) and select OK. This gives you the option to change the volume of the audio on the device. IMPORTANT NOTE: This setting has NO effect on the sensitivity of the audio recording Microphone e.g.
- Page 9 i. Password Select PASSWORD (will be highlighted in RED) and select OK. This gives you the option to change the password. The DEFAULT Password is set as 000000. IMPORTANT NOTE: When changing Passwords, the current Password MUST be entered first. You will be returned to the Password menu –...
- Page 10 k. Pre Event Recording Select PRE_RECORDING (will be highlighted in RED) and select OK. This gives you the option to select Pre-Event Recording. There are two options to select from: Off – No pre-event recording On – the camera will pre-record for up to 25 seconds prior to the pressing of the “Record”...
- Page 11 m. Beep Sound Select BEEP SOUND (will be highlighted in RED) and select OK. This gives you the option to enable or disable the audible sound on the device. There are two options to select from: On or Off Press “Up” or “Down” to select the required option and press “OK” to confirm. Press “Back”...
- Page 12 p. Infrared Switch Select INFRARED SWITCH (will be highlighted in RED) and select OK. This gives you the option to select the use of the IR Illuminators. There are two options to select from: Manual / Auto Press “Up” or “Down” to select the required option and press “OK” to confirm. Press “Back”...
- Page 13 s. Auto Off Select AUTO OFF (will be highlighted in RED) and select OK. This gives you the option to completely power off the camera off after a certain period (unless any other operation is selected). NOTE: this is different to the “LCD Auto off” settings given in Q above. There are four options to select from: Off –...
- Page 14 u. Time Zone Select TIME ZONE (will be highlighted in RED) and select OK. This option is used to adjust the local time zone when GPS is effective (see below for GPS). Press “Up” or “Down” to select the required option and press “OK” to confirm. Press “Back”...
- Page 15 x. Language Select LANGUAGE (will be highlighted in RED) and select OK. This shows the current Language set on the device. There are three options to select from: English, French or Vietnamese Press “Up” or “Down” to select the required option and press “OK” to confirm. Press “Back”...
- Page 16 7. Computer Connection Instructions NOTES: a. Only ever use the supplied USB cable when connecting the device to a Computer. b. No additional Drivers or Software are supplied for this device. The camera will work on Operating Systems such as Windows XP / 7 / 8 / 10 and any drivers needed should automatically be installed by Windows.
- Page 17 Audax in the first instance © Audax Global Solutions Ltd 2020 This document is not to be reproduced in part or in whole without the prior permission of Audax Global Solutions Ltd Audax Global Solutions Ltd Plymouth, Devon PL1 3JY T: +44 (0)1752 264950 E: info@audaxuk.com...
