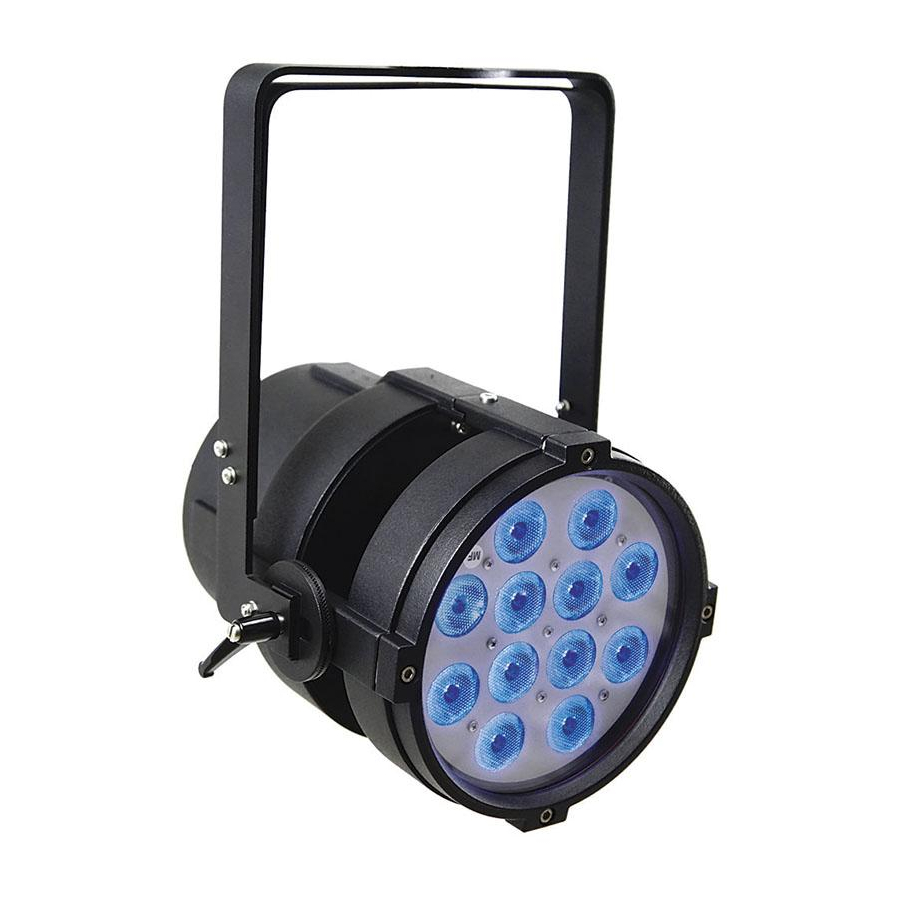

Summary of Contents for DTS Titan Solo HP

  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................5 3- GENERAL WARRANTY CONDITIONS ..............5 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................

  • Page 4: 1- Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “SUITABLE FOR MOUNTING ON NORMALLY FLAMMABLE SURFACES”...

  • Page 5: 2- General Warning

    3- GENERAL WARRANTY CONDITIONS The unit is guaranteed for 36 months from the date of purchase against manufacturing material defects. 4- TECHNICAL FEATURES DTS product codes: 03.LTB001P11FC10 TITAN HP SOLO IP65 FC NARROW lenses Black finishing 03.LTB001P11FC25 TITAN HP SOLO IP65 FC MEDIUM lenses Black finishing 03.LTB001P11FC40...

  • Page 6: 5- Accessories

    Certifications 2014/35/UE ; 2014/30/UE IEC 62471 ; IEC 695-2-1 EN 60598-1 ; EN 62471 ; EN 61347-2-13 EN 60598-2-17 ; EN 55015 EMC ; EN 61347-1 DIMENSIONS 5- ACCESSORIES As standard 1 x PowerCON TRUE1 female cable connector (code 0520P066) 1 x PowerCON TRUE1 male cable connector (code 0520P067) 1 x User’s Manual Optional (on request)

  • Page 7: 6- Important Safety Information

    -High voltage is present inside the unit. Unplug the unit prior to performing any function which involves touching the inside of the projector. -The level of technology inherent in the TITAN SOLO HP requires the assistance of specialised personnel for all servicing.

  • Page 8: Waste Electrical And Electronic Equipment (Weee) Directive

    7- INSTALLATION The unit is suitable for wet locations. TITAN SOLO HP may be either floor or ceiling mounted. For ceiling mounted installation, it is recommended the use of appropriate clamps to fix the unit to the mounting surface.

  • Page 9: 8- Input / Output Connections

    8- INPUT / OUTPUT CONNECTIONS...

  • Page 10: Led Connections

    8.1- LED CONNECTIONS...

  • Page 11: 9- Dmx Signal Connection

    9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis.

  • Page 12: Dmx Addresses

    9.1 DMX addresses TITAN SOLO HP can be controlled with 10 DMX channels (Default). In order to use the unit in 10 DMX channels mode (Default), set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “10”...

  • Page 13: 11- Firmware Updating

    Updating the software version. Please follow the procedure below to perform the update: 1. Install the DTS RED BOX USB-DMX driver on the PC you will use to update the unit software. 2. Connect the DTS RED BOX interface to a spare USB port on the PC (be sure that internal switch on DTS RED BOX is set to COM).

  • Page 14: 12- Display Functions

    Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 15    Allows to select Dimmer White mode (dedicated for TITAN CT)    Custom mode (not implemented on TITAN SOLO HP)    AUX mode (not implemented on TITAN SOLO HP)    Macro function enables channel mapping macro rainbow effects ...
  • Page 16 Shows the total unit life time and the RGBW LEDs life time                 Test mode. (Not implemented on TITAN SOLO HP)     Software version...

  • Page 17: 13- Rec Mode

    13- REC MODE DMX Recorder mode For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX channels are needed. So that in RECORDER mode (via DMX) the unit will need 13 channels to be correctly programmed.

  • Page 18: 15- Periodic Cleaning

    Periodically check all mechanical parts and the gaskets. Please refer to an authorised DTS service centre for any operation involving of the unit if needed. Electrical components: Check for unit proper earthing. Please refer to an authorised DTS service centre for any operation involving of the unit if needed. Fuse replacement: Locate the internal fuse, which protects the electronics, in the TITAN SOLO HP.

  • Page 19: 17- Dmx Protocol

    0..55 No function PROGRAMMED 56..105 Full (R G B W at full) 106..155 DTS White 156..205 Custom White create (RGBW levels selectable by DMX) 206..255 White CTC (channel 8 CTC enabled) 0..255 Linear control temperature correction from 2700K to 8000K...
  • Page 20 Name Dmx Levels MACRO 0..14 No function with MACR = STD 15..29 Macro 1 30..44 Macro 2 45..59 Macro 3 60..74 Macro 4 75..89 Macro 5 90..104 Macro 6 105..119 Macro 7 120..134 Macro 8 135..149 Macro 9 150..164 Macro 10 165..179 Macro 11 180..194...
  • Page 21 “RGBW” MODE (4 CHANNELS) GREEN BLUE WHITE Name DMX levels 0..255 Proportional color from min to max GREEN 0..255 Proportional color from min to max BLUE 0..255 Proportional color from min to max WHITE 0..255 Proportional color from min to max 6 CHANNELS MODE SHUTTER DIMMER...
  • Page 22 “M4CH” MODE (5 CHANNELS) DIMMER GREEN BLUE WHITE Name DMX levels DIMMER 0..255 Proportional dimmer from min to max 0..255 Proportional color from min to max GREEN 0..255 Proportional color from min to max BLUE 0..255 Proportional color from min to max WHITE 0..255 Proportional color from min to max...
  • Page 23 ”16B” MODE (10 CHANNELS) DIMMER DIMMER FINE RED FINE GREEN GREEN FINE BLUE BLUE FINE WHITE WHITE FINE Name DMX levels DIMMER 0..255 Proportional dimmer from min to max DIMMER FINE 0..255 Proportional dimmer from min to max 0..255 Proportional color from min to max RED FINE 0..255 Proportional color from min to max...
  • Page 24 0..55 No function PROGRAMMED 56..105 Full (R G B W at full) 106..155 DTS White 156..205 Custom White create (RGBW levels selectable by DMX) 206..255 White CTC (channel 13 CTC enabled) 0..255 Linear control temperature correction from 2700K to 8000K...
  • Page 25 Name Dmx Levels MACRO 0..14 No function with MACR = STD 15..29 Macro 1 30..44 Macro 2 45..59 Macro 3 60..74 Macro 4 75..89 Macro 5 90..104 Macro 6 105..119 Macro 7 120..134 Macro 8 135..149 Macro 9 150..164 Macro 10 165..179 Macro 11 180..194...
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 ISO 9001:2008 DTS products are designed DTS quality system is certified and manufactured at the to the ISO 9001:2008 standard DTS plants in Italy *0517I085.HP* ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax + 39 0541 611111 info@dts-lighting.it...
