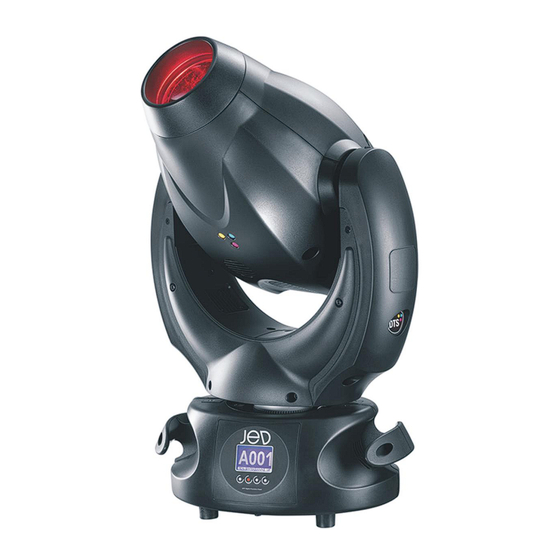

DTS JED User Manual
  1. Manuals
  2. Brands
  3. DTS Manuals
  4. Spotlight
  5. JED
  6. User manual

DTS JED User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS JED

Summary of Contents for DTS JED

  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.

  • Page 3: Table Of Contents

    INDEX: 1 - SYMBOLS ........................ 4 2 - GENERAL WARNING ..................... 5 3 - GENERAL WARRANTY CONDITIONS ..............5 4 - TECHNICAL FEATURES ..................6 5 - ACCESSORIES ....................... 7 6 - IMPORTANT SAFETY INFORMATION ..............8 6.1 Fire prevention...................... 8 6.2 Prevention of electric shock ..................

  • Page 4: Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “SUITABLE FOR MOUNTING ON NORMALLY FLAMMABLE SURFACES” THIS SYMBOL MEANS “SUITABLE FOR INDOOR USE ONLY”...

  • Page 5: General Warning

    2- GENERAL WARNING Read the instruction contained in this user manual carefully, as they give important information regarding safety during installation, use and maintenance. The unit is not for household use and must be installed by a qualified electrician or experienced person.

  • Page 6: Technical Features

    4- TECHNICAL FEATURES DTS Product Code: 03.MS020.L JED Black finishing 60W RBL (Red, Blue, Lime Green) Optical group Custom built optical group 2° - 19° zoom range (Beam-Spot mode) 4,5° - 26° zoom range (Wash mode) Linear motorized focus Auto Focus...

  • Page 7: Accessories

    International certifications CE certification Weight 11,9 Kg Dimensions 5- ACCESSORIES As standard 1 x PowerCON TRUE1 female cable connector (Code 0520P066) 1 x XLR 5 pins female cable connector (Code 0508B147) 1 x XLR 5 pins female cable connector (Code 0508B148) 1 x G-Quick clamp with “Fast Lock”...

  • Page 8: Important Safety Information

    Unplug the unit prior to performing any function which involves touching the inside of the moving head. -The level of technology inherent in the JED requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre.

  • Page 9: Level Of Protection Against The Penetration Of Solid And Liquid Objects

    For EC countries: according to the European Directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, luminaires that are no longer usable must be collected separately and disposed of in an environmentally correct manner. 7- VOLTAGE AND FREQUENCY JED operates at 100-240Vac 50-60 Hz.

  • Page 10: Installation

    8.1- Safety cable A safety cable must be securely fixed to the JED and to the suspension truss in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the safety cable or chain can bear the weight of the entire unit.

  • Page 11: Protection Against Liquids

    8.2 Protection against liquids The projector contains electric and electronic components which should under no circumstances come into contact with oil, water or any other liquid. The proper unit functioning would be compromised should this occur. 8.3- Movement Pan: 540° rotation ; Tilt: 270° rotation. Do not place any object in the path of the projector’s movement.

  • Page 12: Mains Connection

    Max 7 JED units @ 100Vac PowerCON TRUE1 female panel connector FUSE T 2A 250V 9.1- Protection The use of a thermal magnetic circuit breaker is recommended for each JED. A good earth connection is essential for the correct operation of the projector.

  • Page 13: Dmx Signal Connection

    10- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector. Ensure that the conductors do not touch each other.

  • Page 14: Dmx Addresses

    Updating the firmware release. Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 15: Display Functions

    Changing the DTS setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 16 12- DISPLAY FUNCTIONS PAN SPEED Pan Speed control Pan Speed Menu Up-Down ENTER Up-Down ENTER (1-4) Default = 4 PAN SPEED Pan Speed control (1-4) MENU ENTER DOWN TILT SPEED Tilt Speed control Tilt Speed Menu Up-Down ENTER Up-Down ENTER (1-4) Default = 4 TILT SPEED...
  • Page 17 12- DISPLAY FUNCTIONS DMX MODE DMX Mode DMX Mode Menu Up-Down ENTER Up-Down ENTER 28 channels DMX MODE 28 CHANNELS To select DMX mode: 28 channels MENU ENTER DOWN RESET ENABLED = Reset via Reset Menu Up-Down ENTER Up-Down ENTER DMX enabled (Default) BY DMX DISABLED = Reset via...
  • Page 18 Default = ON MENU ENTER DOWN SYSTEM INFO System Info Menu Up-Down ENTER Up-Down ENTER MODEL: JED UNIT LIFE: 0124H RDM: 00010EF2 SYSTEM INFO 10M: R.21 R.27 Unit model; 10 motors board, Pan&Tilt LED: V.1.00 board and LED Driver board software version;...
  • Page 19 12- DISPLAY FUNCTIONS RESERVED Pan Lock = Lock the Pan Reserved ENTER Menu Up-Down ENTER Up-Down to the desired value ENTER CODE Tilt Lock = Lock the Tilt RESERVED to the desired value (Code = 100) Pan Free = Remove power Pan lock-Tilt lock to Pan motor Pan free-Tilt free...
  • Page 20 12- DISPLAY FUNCTIONS NO DMX ACTION No DMX Action Menu Up-Down ENTER Up-Down ENTER KEEP LAST DMX NO DMX ACTION This menu allows to set the desired unit’s behavior in case DMX signal is missing or not available. MENU ENTER DOWN KEEP LAST DMX NO DMX ACTION Keep last valid DMX signal.
  • Page 21 12- DISPLAY FUNCTIONS MANUAL CONTR. Manual control Menu Up-Down ENTER ENTER Up-Down MANUAL CONTROL Manual mode with functions value selectable by user MENU ENTER DOWN RESET To reset head motors only, Pan and Tilt MANUAL CONTR. or all motors RESET RESTORE DEFAULT To restore parameters default settings HEAD MOTORS...

  • Page 22: Autofocus Calibrating Procedure

    13- AUTOFOCUS CALIBRATING PROCEDURE It is possible to calibrate the Autofocus by following a display wizard procedure into Calibration Menu. Reset the unit from RESET display menu (RESET>NOW – press ENTER to confirm) and while the reset is running press MENU and ENTER keys at the same time to access into Calibration Menu.

  • Page 23: Opening The Projector Housing

    14- OPENING THE PROJECTOR HOUSING It is possible to inspect the inside of the projector by removing the cover as indicated below. ATTENTION REMOVE MAINS POWER PRIOR TO ACCESSING THE PROJECTOR’S INTERNAL COMPONENTS. 1) Using a flat bladed screwdriver loose the 2 “¼ turn” screws which fix the head covers on both sides.

  • Page 24: Removing / Replacing The Rotating Gobos

    15- REMOVING / REPLACING THE ROTATING GOBOS JED uses a mechanical system which allows the fixture's gobos to be removed without the use of special tools. When replacing gobos, ensure that the projector is switched off. Open the projector housing as described on page 23 and pull out the gobo holder from the rotating gobo wheel as showed in the picture below.

  • Page 25: Periodic Cleaning

    Fuse replacement Locate the fuse, which protects the lamp and electronics, in the base of JED. Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type (T 2A 250V) if necessary.

  • Page 26: Dmx Protocol

    18- DMX PROTOCOL FIRMWARE RELEASE 21.30 RDM Device Model ID 0x000F 0x01 “28 CHANNELS” DMX Personality ID 28 CHANNELS MODE (Default) LIME GREEN BLUE SHUTTER / STROBE DIMMER LINEAR CTO (priority on MACROS ch7, RED ch1, LIME GREEN ch2, BLUE ch3) LEE FILTERS AND EFFECTS MACROS (priority on all channels active within the selected macro)
  • Page 27 Name Dmx Level Ranges DIMMER 0..255 Proportional master dimmer MSB LINEAR 0..10 No function 11..255 Linear control temperature correction (whites from 2700K to 8000K) 0..15 No function COL 1: LEE FILTER NO. 19 "FIRE" (Blocked channels: R255 L/G32 B0) 16..20 COL 2: LEE FILTER NO.
  • Page 28 Name Dmx Level Ranges 141.. 145 EFFECTS MACRO 1 (Blocked channels: 13, 14, 24, 25, 26. Please refer to Effects Macro Chart on page 39 for channels values). 146..150 EFFECTS MACRO 2 (Blocked channels: 13, 14, 24, 25, 26. Please refer to Effects Macro Chart on page 39 for channels values) 151..155 EFFECTS MACRO 3 (Blocked channels: 13, 14, 24, 25, 26.
  • Page 29 Name Dmx Level Ranges 0..255 PAN Position PAN FINE 0..255 PAN FINE Position TILT 0..255 TILT Position TILT FINE 0..255 TILT FINE Position PAN/TILT 0..10 Standard SPEED 11..25 Max speed 26..127 From Max Speed to Min Speed 128..247 Variable reaction to DMX signal (fast to slow) 248..255 Slow reaction time to DMX signal GOBO...
  • Page 30 Name Dmx Level Ranges GOBO 000-009 Stop SHAKE 010-022 Gobo shake R-L speed 1 023-035 Gobo shake R-L speed 2 036-048 Gobo shake R-L speed 3 049-061 Gobo shake R-L speed 4 062-074 Gobo shake R-L speed 5 075-087 Gobo shake R-L speed 6 088-100 Gobo shake R-L speed 7 101-113...
  • Page 31 Name Dmx Level Ranges FIXED 000-013 Open GOBO 014-027 Gobo 1 028-041 Gobo 2 042-055 Gobo 3 056-069 Gobo 4 070-083 Gobo 5 084-097 Gobo 6 098-111 Gobo 7 112-125 Gobo 8 126-139 Gobo 9 140-153 Gobo 10 154-167 Gobo 11 168-181 Gobo 12 182-195...
  • Page 32 Name Dmx Level Ranges FIXED 000-009 Stop GOBO 010-022 Gobo shake R-L speed 1 SHAKE 023-035 Gobo shake R-L speed 2 036-048 Gobo shake R-L speed 3 049-061 Gobo shake R-L speed 4 062-074 Gobo shake R-L speed 5 075-087 Gobo shake R-L speed 6 088-100 Gobo shake R-L speed 7...
  • Page 33 Name Dmx Level Ranges COLOUR 095-099 Colour 9-10 WHEEL 100-104 Colour 10 105-109 Colour 10-11 110-114 Colour 11 115-119 Colour 11-12 120-124 Colour 12 125-129 Colour 12-13 130-134 Colour 13 135-139 Colour 13-14 140-144 Colour 14 145-149 Colour 14-15 150-154 Colour 15 155-159 Colour 15-16...
  • Page 34 Name Dmx Level Ranges EFFECTS 000-050 No Effect 051-100 Prism inserted after Zoom lens 101-150 Prism inserted between Focus and Zoom 151-255 WASH Mode (Prism/Prism Index/Prism Rotation disabled) (Gobo Wheels shake/rotation/index disabled) PRISM 000-127 Proportional index 0°-360° ROTATION 128-180 Left rotation (max to min) /INDEX 181-202 Stop...
  • Page 35 Name Dmx Level Ranges LIME 0..9 No function GREEN 10..19 Open SHUTTER 20..29 Black-out /STROBE (Priority on 30..119 Strobe (from 3,27 s to 30 ms) SHUTTER/ST ROBE ch4) 120..149 Pulse up (from 42,6 s to 120 ms) 150..179 Pulse down (from 42,6 s to 120 ms) 180..189 Random strobe 190..199...
  • Page 36 Name Dmx Level Ranges 27 FUNCTIONS 0..14 No function Activated by 15..24 SMOOTH OFF staying on desired option 25..26 SMOOTH 1 for 5 seconds 27..28 SMOOTH 2 29..30 SMOOTH 3 31..32 SMOOTH 4 (DEFAULT) 33..34 SMOOTH 5 35..36 SMOOTH 6 37..38 SMOOTH 7 39..40...
  • Page 37 Name Dmx Level Ranges 27 FUNCTIONS OUTPUT FREQUENCY 8500 Hz Activated by OUTPUT FREQUENCY 9000 Hz staying on desired option OUTPUT FREQUENCY 9500 Hz for 5 seconds OUTPUT FREQUENCY 10000 Hz OUTPUT FREQUENCY 11000 Hz OUTPUT FREQUENCY 12000 Hz OUTPUT FREQUENCY 13000 Hz OUTPUT FREQUENCY 14000 Hz OUTPUT FREQUENCY 15000 Hz OUTPUT FREQUENCY 16000 Hz...
  • Page 38 Name Dmx Level Ranges RESET 0..15 No Function 16..75 PAN TILT reset 76..239 HEAD MOTORS reset 240..255 TOTAL Unit reset...
  • Page 39 EFFECTS MACRO CHART Here below the DMX values of blocked channels for each Effects Macro. All the other channels can be adjusted to customize the pre-set Macros.

  • Page 40: Rotating Gobo Wheel

    19- ROTATING GOBO WHEEL...

  • Page 41: Fixed Gobo Wheel

    20- FIXED GOBO WHEEL...

  • Page 42: Colour Wheel

    21- COLOUR WHEEL...
  • Page 43 NOTES...
  • Page 44 *0517I294* ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 ● info@dts-lighting.it www.dts-lighting.it 0517I294...
