Tools needed: Electric Drill (Use Gloves and Eye Protection), Center Punch, Hammer, Pencil, Tape Measure,
Phillips Screwdriver, and one or more Helpers.

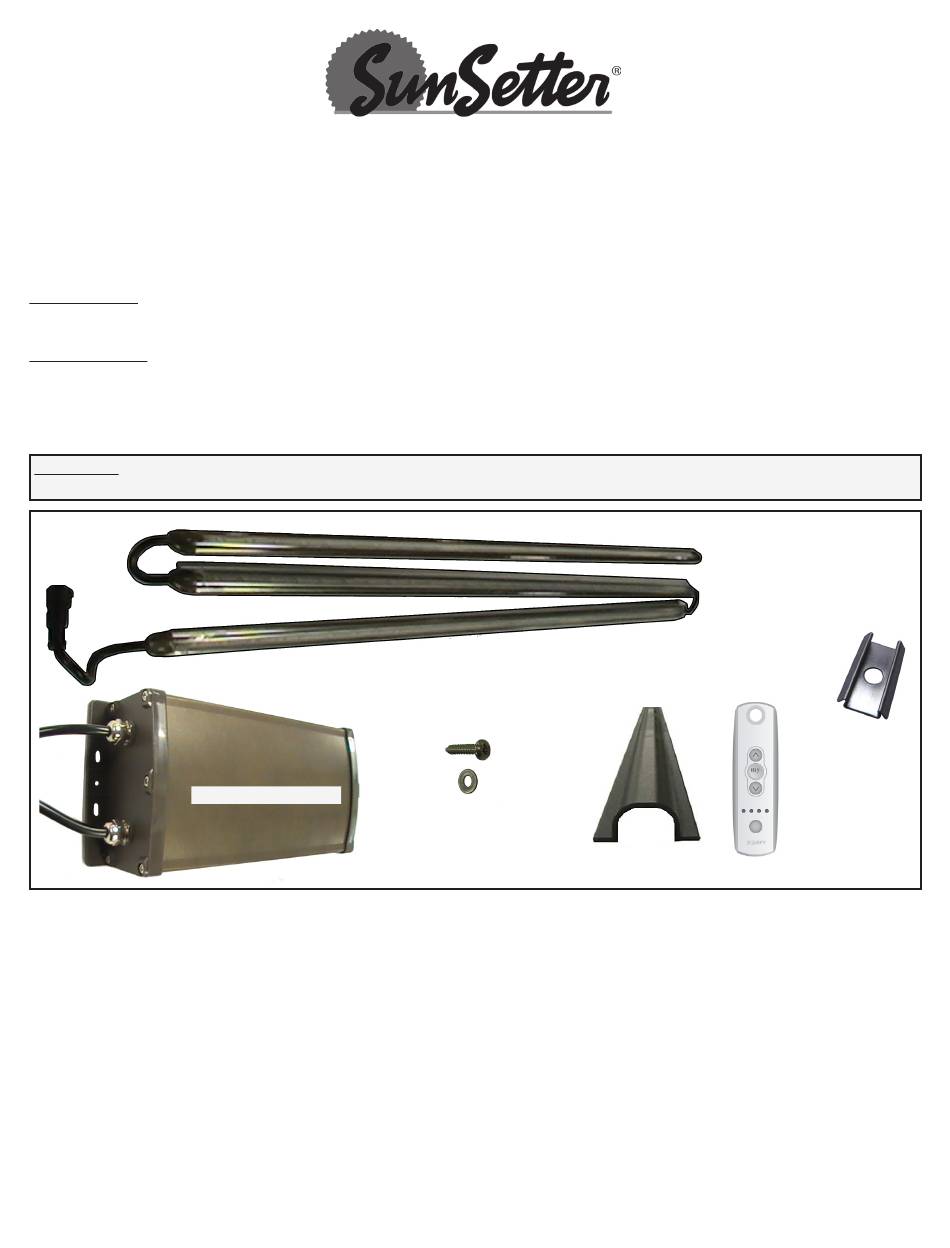

Parts Supplied: LED Light Strips with Cord Assembly, Power Control Box with Power Cord (24 ft),
3.7 mm or #26 (0.147 diameter) Drill Bit (not shown), #8 x 1/4"Screws, #8 x 1/2" Screws, Mounting Clips, Cord
Cover, Velcro Strips (not shown), Multi Channel Remote Transmitter and spare CR2430 Battery (not shown).
See Figure 1.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY! PLEASE READ
THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO COMPLETE THIS INSTALLATION.
Figure 1
Power Control Box

TABLE OF CONTENTS

• Two LED Light System Models: 12 ft and 16 ft wide Oasis . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
• Mark, Punch and Drill Hole Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
• Attach Mounting Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
• Attach Power Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
• Attach LED Light Strips to Mounting Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
• Attach Cord Cover to Square Bar Upright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
• The Multi Channel Remote Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
• How to Program the Multi Channel Remote Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
• Operation of Your LED Light System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
• Master Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148
RETRACTABLE AWNINGS
For Technical Support visit us at www.sunsetter.com/ownerscorner
or Call Toll Free 800-670-7071 • Fax 877-224-4944
SunSetter LED Light System
Oasis Awning Installation
*Helper Needed*
LED Light Strips with Cord Assembly
#8 x 1/2" Screws
for mounting the
Power Control Box
#8 x 1/4" Screws
(not shown) w/
Mounting Clips for
mounting the LED
Cord Cover
Light Strips
Multi-Channel
Remote
Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Light System and is the answer not in the manual?

Questions and answers

Related Manuals for SunSetter LED Light System

Summary of Contents for SunSetter LED Light System

  • Page 1: Table Of Contents

    • Two LED Light System Models: 12 ft and 16 ft wide Oasis ......Page 2...

  • Page 2: Two Led Light System Models: 12 Ft And 16 Ft Wide Oasis

    Two LED Light System Models: 12 ft and 16 ft Wide Oasis Motor or Drive Gear Top Bracket Horizontal Corner Braces Notes: Square Bar • The LED Light Strips mount to the Square Bar underside of the Horizontal Square Bar, Upright with LED Light Strips facing down.

  • Page 3: Attach Mounting Clips

    Attach Mounting Clips 6. Secure the Mounting Clips to the Horizontal Square Bar using the supplied Figure 5 Figure 6 #8 x 1/4” Phillips screws. • Make sure that the Mounting Clips are aligned parallel to the Horizontal Square Bar and the open channel faces down. •...

  • Page 4: Attach Cord Cover To Square Bar Upright

    13. Locate the Cord Cover and position the Cover over Figure 11 Figure 12 the LED Light System Electric Cord and flat against Cord Cover the inside of the Square Bar Upright. See Figure 11. 14. Using the supplied Velcro Straps, secure the Cord Electric Cord Cover in place.

  • Page 5: How To Program The Multi Channel Remote Transmitter

    Program the Multi Channel Remote Transmitter to the LED Light System Use either Section A, B or C Section A A1. Set the Remote Transmitter to operate on Channel 2 (see Figure 14). Note: Channel 1 operates your Oasis, use Channel 2 for the LED Lights.

  • Page 6: Operation Of Your Led Light System

    Operation of Your LED Light System The LED Dimmer can be used to dim the level of the LED Light strip to either full ON, full OFF, or in increments. The different levels can be achieved either by pressing and releasing a button, or pressing and holding a button as described below.

  • Page 7: Master Reset

    LED Light Strips blink again, then release the Programming button. 6. Go to “Program the MultiChannel Remote Transmitter to the LED Light System” on Page 5. WARNING: DO NOT ATTEMPT TO OPEN THE POWER CONTROL BOX FOR ANY REASON, AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE.
  • Page 8 Thank you for choosing SunSetter SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148 January 2, 2019 INS080-LED_OASIS-2018...
