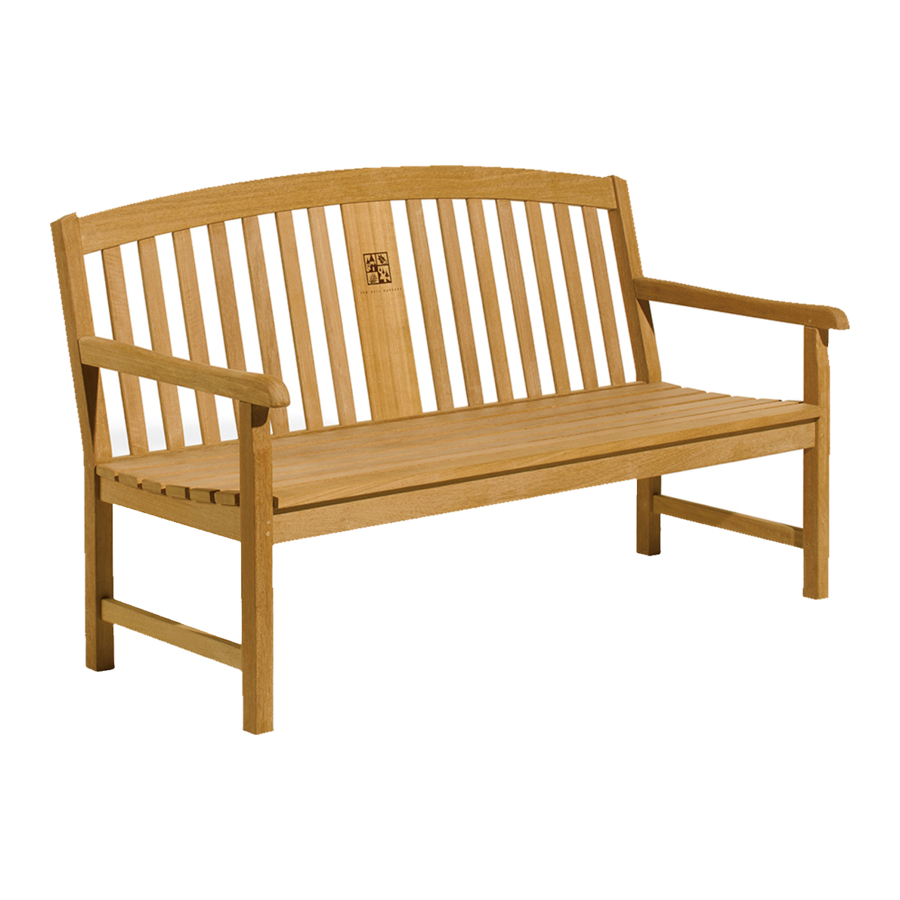

SIGNATURE BENCH 5' - SIG60
ASSEMBLY INSTRUCTIONS
COMPONENTS
Right Arm Assembly
Quantity: 1
4
Seat
Quantity: 1
HARDWARE
Dowel
A
Quantity: 12
FINISHING ITEMS
Medium Grit Sandpaper
NOTE: A hammer and a phillips head screwdriver (not provided) will be needed for the assembly of this bench.
NOTE: If the furniture is going to be placed on a concrete or tile patio, it should first be rinsed well to remove the
sawdust that may cause some staining.
15 Kingbrook Parkway, Suite 100 Simpsonville, KY 40067 p. 877.866.3331
2
Left Arm Assembly
Quantity: 4
5
Front Rail
Quantity: 1
Wood Screw
B
Quantity: 8
3
Back
Quantity: 1
f. 502.719.8888 oxfordgarden.com
Ver. 06.30.20
Advertisement
Table of Contents
Related Manuals for Oxford Garden SIG60
Summary of Contents for Oxford Garden SIG60
- Page 1 Ver. 06.30.20 SIGNATURE BENCH 5’ - SIG60 ASSEMBLY INSTRUCTIONS COMPONENTS Left Arm Assembly Back Right Arm Assembly Quantity: 1 Quantity: 4 Quantity: 1 Seat Front Rail Quantity: 1 Quantity: 1 HARDWARE Wood Screw Dowel Quantity: 8 Quantity: 12 FINISHING ITEMS Medium Grit Sandpaper NOTE: A hammer and a phillips head screwdriver (not provided) will be needed for the assembly of this bench.
- Page 2 INSTRUCTIONS STEP 1 STEP 2 On a clean flat surface, lay right leg assembly on its Locate the small label on the bottom of the seat that side mortise holes facing up. Place the back into the reads “front”. With the front of the seat toward the front mortise of the right leg assembly.
