Rath SmartView Visual Installation & Operation Manual page 7

1. Follow the previous installation
steps, omitting steps involving the
SmartView Display.
2. Mount the CE Elite PI Display in the
elevator.

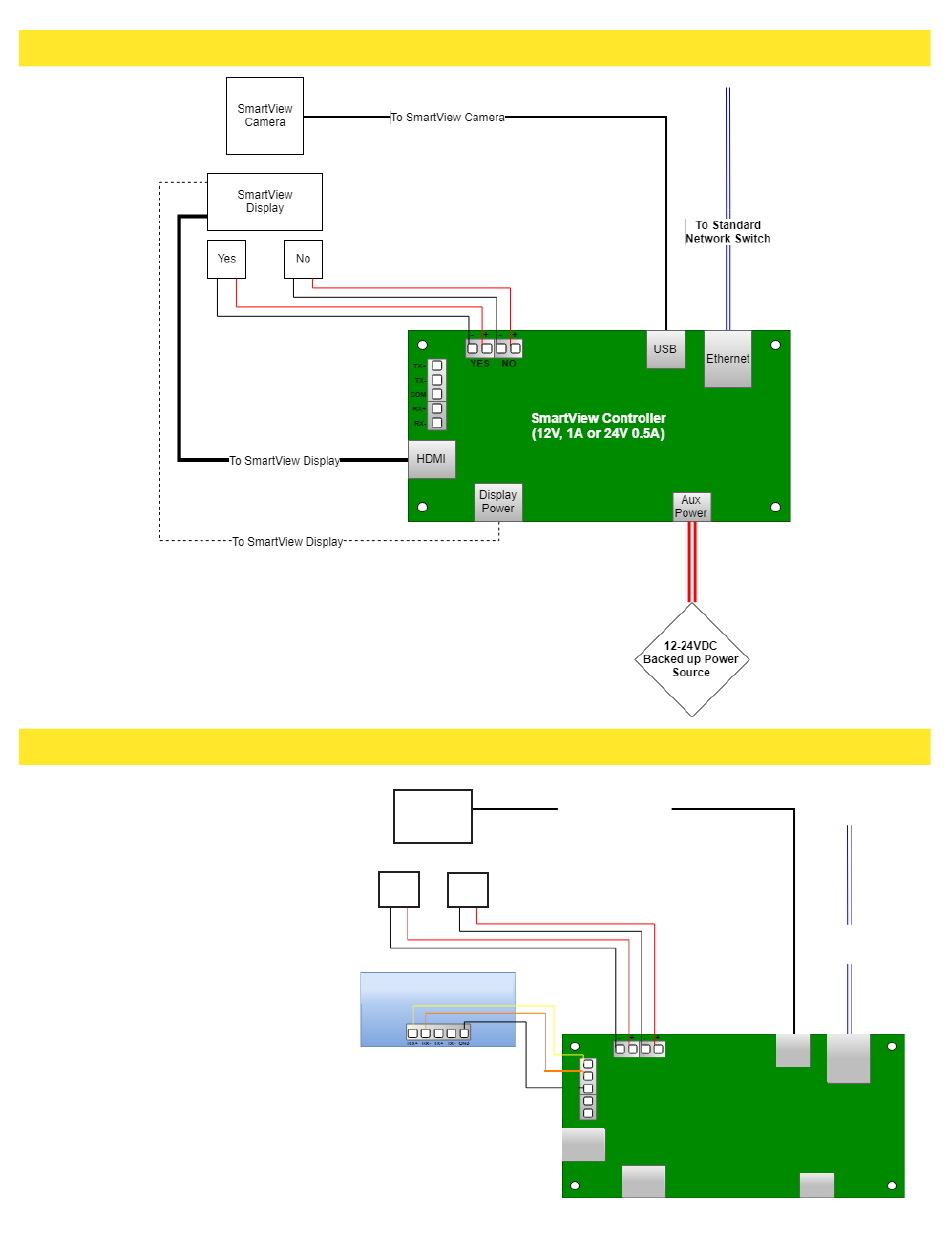

3. Follow the wiring schematic
for connecting the SmartView
Controller with a CE Elite PI Display
via the RS485/422 connectors.
Wiring with Standard Network Switch
Wiring with CE Elite PI Displays
SmartView
Camera
NO
YES
CE Elite PI Display
**Minimum CAT5E Cable**
To SmartView Camera
YES NO
TX+
TX-
COM
RX+
SmartView Controller
RX-
(12v, 1A or 24v 0.5A)
HDMI
Display
Power
To Network Switch
or
Ethernet Extender
USB
Ethernet
Aux
Power
Page 7
