Summary of Contents for Rath SmartView Visual

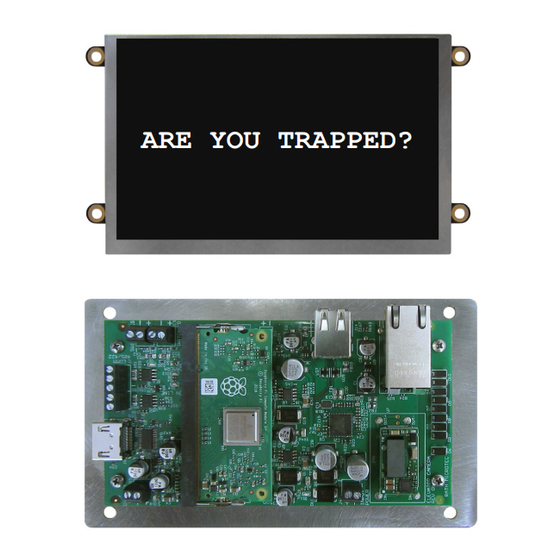

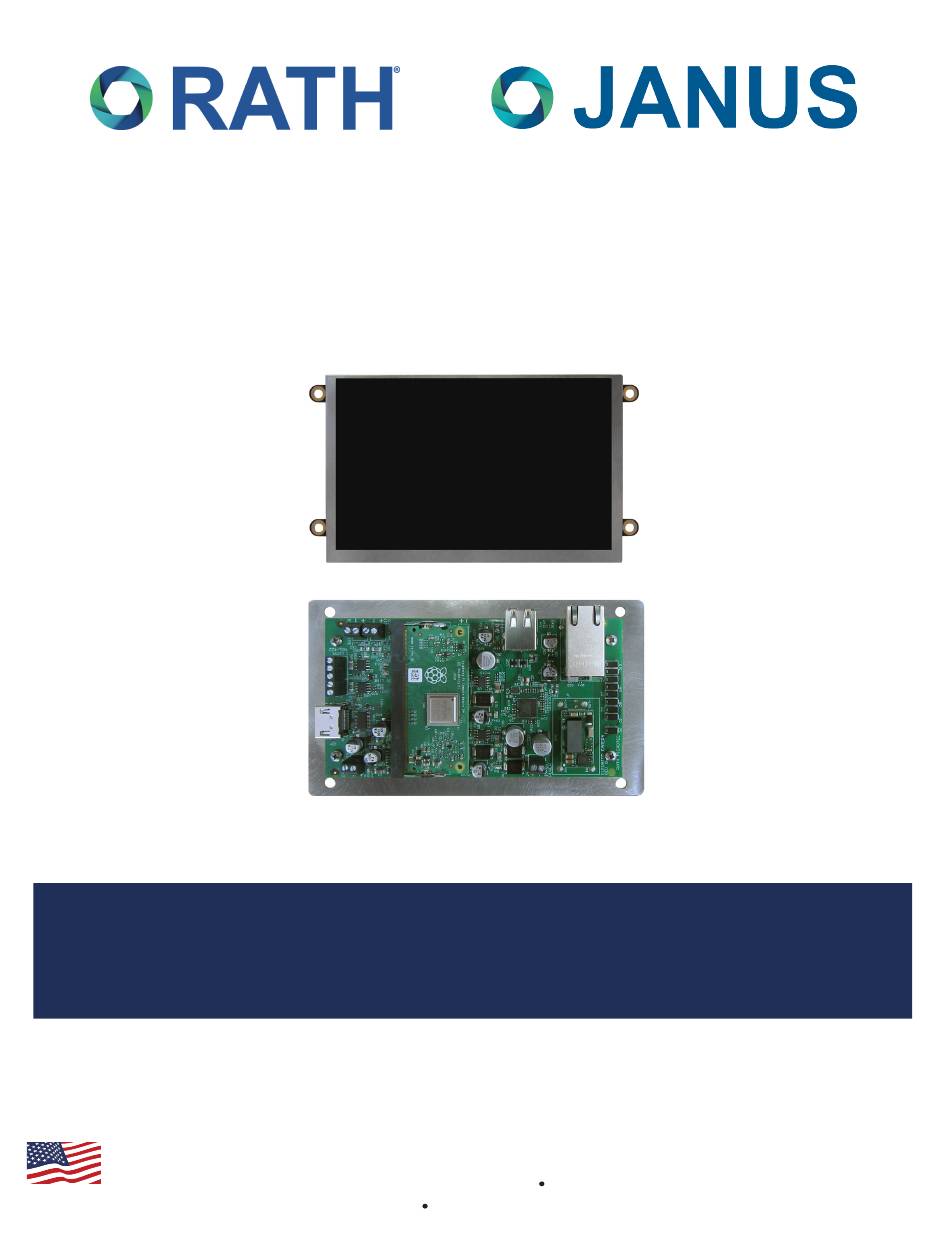

- Page 1 Installation & Operations Manual ARE YOU TRAPPED? SmartView Visual Communication System N56W24720 N. Corporate Circle Sussex, WI 53089 RP850001SV Made in the USA Ver. 5 800-451-1460 www.rathmicrotech.com 3 Year Warranty 03/21...
-
Page 2: Table Of Contents
Thank you for purchasing the SmartView Visual Communication System. We are the largest Emergency Communication Manufacturer in North America and have been in business for over 35 years. We take great pride in our products, service, and support. Our Emergency Products are of the highest quality. -
Page 3: Pre-Installation Requirements
Note: Only apply one of the above options. The Controller Board cannot accept more than one power input. 2. Internet Requirements: • Routed internet connection using DHCP, OR • Wireless data device (cellular modem with data) (provided by RATH ® 3. SmartView Controller, SmartView Display, or CE Elite PI Display, and SmartView Camera 4. -
Page 4: Operations And Testing
1. Plug the provided flash drive into your laptop or computer. 2. Open the SmartView link located on the flash drive. Note: If you have lost the provided flash drive, contact RATH ® 3. Enter one of the IDs associated with your job. -
Page 5: Controller Layout
RP7700104S RP7700104S (Power Supply/UPS/Battery) (Power Supply/UPS/ Battery) Elevator Car Elevator Car RATH Components SmartView Components Single Pair Single Pair Wire to pins 1 and 2 of the RJ45 connector. Wire to pins 1 and 2 of the RJ45 connector 2100-SVCB... - Page 6 Wiring Example (Preferred Option for Standard Travel Cable): • Extender Power: Supplies 1A to the SmartView Controller • Extender Wiring: • Extends up to 1,640 feet over single pair of wiring between Extenders (requires single pair, 18-24ga, shielded or unshielded) RJ45 Adapters Included •...
- Page 7 Wiring with Standard Network Switch **Minimum CAT5E Cable** Wiring with CE Elite PI Displays 1. Follow the previous installation steps, omitting steps involving the To SmartView Camera SmartView Camera SmartView Display. 2. Mount the CE Elite PI Display in the elevator.
-
Page 8: In-Building Intercom Master Setup
In-Building Intercom Master Setup Click the SmartView icon to begin linking the Head-End Controller. For initial setup, the SmartView Head-End will need to be connected to the internet. Provide a 120v backed up power source or RATH RP7700104S. Reference manual ®... - Page 9 Appendix A SmartView Controller Specifications: • Power Requirements: 12v or 24v or PoE or PoE+ • Curent Draw: 12v Active = 1A 12v Idle = 0.5A 24v Active = 0.5A 24v Idle = 0.25A • Operating Temperature: 32°F to 158°F (0°C to 70°C) •...
- Page 10 Appendix B Example ID Table: SmartView ID Location/Description 10020 Elevator 1 10021 Elevator 2 ID Table: SmartView ID Location/Description Page 10...
