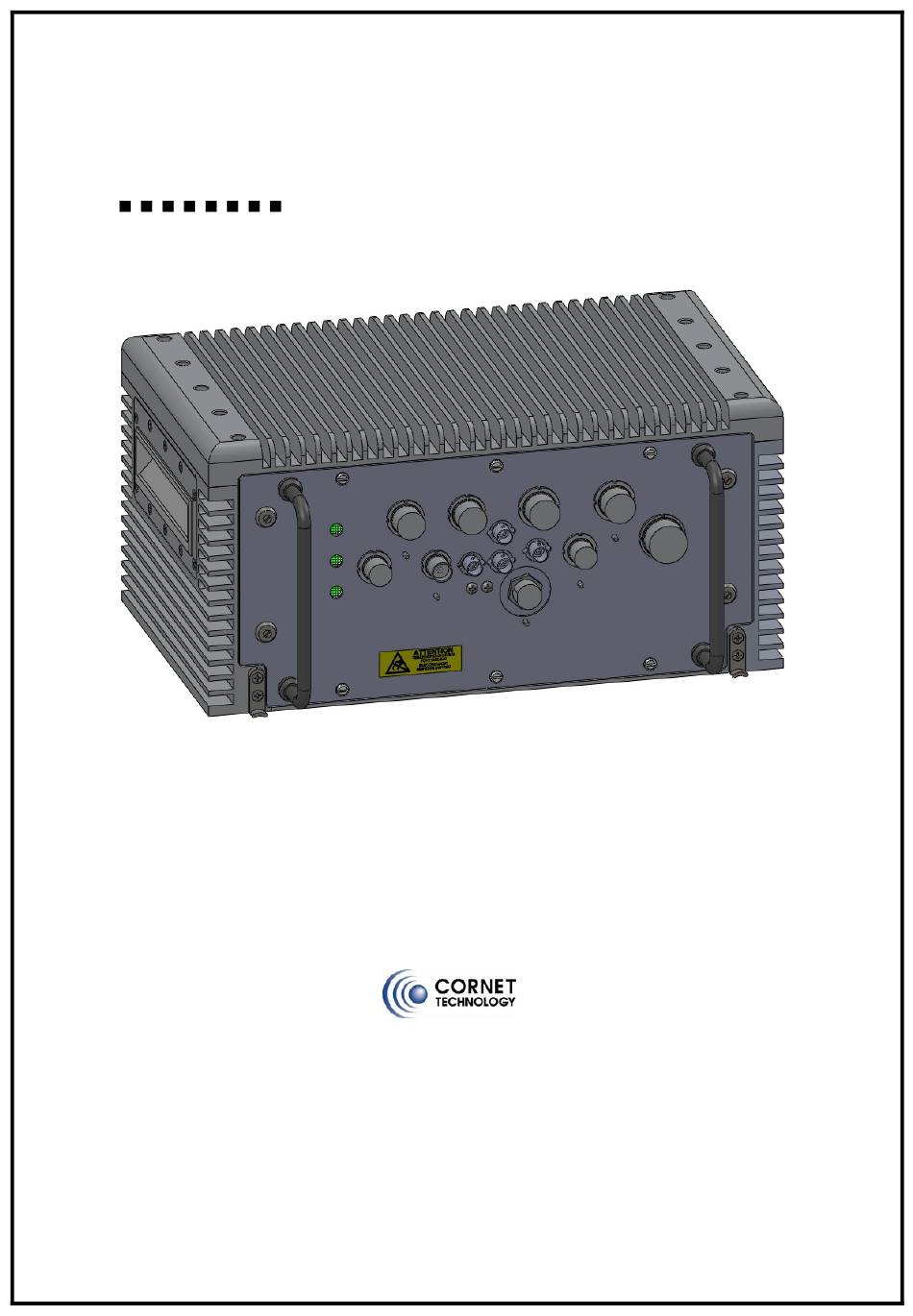

CORNET iVDO Multi E+2 Technical Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
iVDO
Multi E+2
Commercial Technical Manual
April 2012
Cornet Technology, Inc.
6800 Versar Center Drive
Springfield, VA 22151
USA
www.cornet.com
CAGE Code OKPC5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iVDO Multi E+2 and is the answer not in the manual?

Questions and answers

Related Manuals for CORNET iVDO Multi E+2

Summary of Contents for CORNET iVDO Multi E+2

  • Page 1 ® iVDO Multi E+2 Commercial Technical Manual April 2012 Cornet Technology, Inc. 6800 Versar Center Drive Springfield, VA 22151 www.cornet.com CAGE Code OKPC5...
  • Page 3 Multi E+2 Commercial Technical Manual Security Notice This Technical Manual contains information that is proprietary to Cornet Technology, Inc. This document comes under the terms of the executed non-disclosure agreement. Document Objectives This technical manual provides information on the installation, principles of ®...
  • Page 4 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Intentionally Left Blank Page 4 UNCLASSIFIED IVDO MULTI E+2 E+2...

  • Page 5: Table Of Contents

    Power Supply Board (C09203)..................28 INSTALLATION........................29 6.1..................29 ENERAL NSTALLATION ROCEDURE 6.2....................29 NSTALLATION IAGRAMS 6.3..................31 ENERAL ABLE NSTALLATION 6.4. IVDO MULTI E+2 C ..............31 NSTALLATION OF HASSIS 6.4.1. Securing the IVDO MULTI E+2 Chassis...............31 HW Manual UNCLASSIFIED Page 5...
  • Page 6 ONCEPT 9.2. IVDO MULTI E+2 M ................... 101 AINTENANCE 9.2.1. Power On – IVDO MULTI E+2 Self Test and Indicators ..........101 9.2.2. Control PC to IVDO MULTI E+2 Communications............ 102 9.2.3. WEB GUI Start-Up ...................... 103 9.2.4. WEB GUI Fault Detection.................... 103 9.3.
  • Page 7 ISSION CREEN 8-43 LAN S ......................68 IGURE ETTINGS 9-1 E .......................88 IGURE XAMPLE LOCK 10-1: IVDO MULTI E+2 LED I ................102 IGURE NDICATORS 10-2: S IVDO MULTI E+2 C ..........102 IGURE UCCESSFUL ING OF THE HASSIS 10-3: F (IVDO MULTI E+2 H )........
  • Page 8 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table of Tables 1-1: D ....................9 ABLE OCUMENT ISTORY ETAILS 7-1 IVDO MULTI E+2 LED .....................32 ABLE 7-2 C .......................33 ABLE ONNECTOR YPES 7-3 C ......................35 ABLE ONNECTOR OUTS 8-1 D & U ID ..................41...

  • Page 9: Introduction

    All hyperlinks have a page number associated with them to facilitate finding the information when reading a hard copy of this manual. Version number in parenthesis refers to Cornet Technology, Inc. Quality Management System Control Number HW Manual...
  • Page 10 MULTI E+2. It also includes this section which explains link information and the major divisions of the manual. (9) IVDO MULTI A quick overview of the IVDO MULTI E+2. (11) Overview Acronyms A listing of commonly used terms in this document.

  • Page 11: Ivdo Multi E+2 Overview

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 2. IVDO MULTI E+2 Overview ® The iVDO Multi E+2 is a multi channel Video Encoder that will encode four independent video and audio channels, multiplex them along with Key-Length-Value (KLV) metadata to generate four separate STANAG 4609 compliant MPEG2 transport streams.

  • Page 12: Acronyms

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 3. Acronyms 3.1. Acronyms and Abbreviations Acronym Definition CODEC Encoder Decoder Cornet Technology Inc. Digital Signal Processor EO/IR Electro-Optic / Infra-Red ETSEC Enhanced Triple Speed Ethernet Controller FPGA Field Programmable Gate Array Group of Pictures...

  • Page 13: Definitions

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Acronym Definition Transport Stream Time To Live 3.2. Definitions Word or Term Definition 100 BaseT A networking standard that supports data transfer rates up to 100 Mbps (100 megabits per second). 100BASE-T is based on the older Ethernet standard.
  • Page 14 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Word or Term Definition more robust protocols and networks. Standards are being developed to support Multicasting over a TCP/IP network such as the Internet. These standards, IP Multicast and Mbone, will allow users to easily join Multicast groups.

  • Page 15: Specifications

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 4. Specifications 4.1. IVDO MULTI E+2 Specifications 4.1.1. V IDEO NTERFACE Specification Description Format NTSC Color or Monochrome, Composite / S – Video (Y/C), 30 frames per second (fps) (29.97), 2:1 interlaced, compliant...

  • Page 16: Power

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Item Specification Unicast and Multicast IP Packets File Transfer New or saved firmware can be transferred to a new or existing Encoder using TFTP via the Ethernet connection. Reset Recovery The recovery time from a Reset will be less than 30 seconds.

  • Page 17: Security

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 4.1.8. S ECURITY Flash is the only non-volatile device on the unit. The Flash contains operational code only. No recorded data will be written to the device. 4.2. GPS Specifications Item Specification GPS receiver Channels 16-channels Frequency L1 (1575.42 MHz)

  • Page 18: Interface Connectors

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual (Video Encoder) 4.4.1. I NTERFACE ONNECTORS Connector Part Numbers No. of Pins Function Ethernet 805-005-07M9-10SA Composite/S-Video 805-005-07M12-26SA Loop Composite/S-Video 805-005-07M12-26SC Input SDI-1 Video Input 5221336-4 BNC SDI Video Loop 805-005-07M9-10SD Audio Loop 805-005-07M11-19SC...

  • Page 19: Principles Of Operation

    Inter-Communications System (ICS) and produces MPEG-2 Transport Streams (TS) compliant with STANAG 4609. The IVDO MULTI E+2 consist of the IVDO MULTI E+2 Hardware with a Graphic Users Interface (GUI). The primary Human Machine Interface (HMI), for both operator and maintenance functions, is through the IVDO MULTI E+2 GUI.

  • Page 20: Ethernet Interfaces

    5.1.5. DSP F UNCTION The IVDO MULTI E+2 design incorporates four DSPs each running various customer specified video/audio algorithms. Each DSP is independent from the other 3 and therefore gives a very flexible architecture to the system design. Communication and control come from the main Central Processing Unit (CPU) to the DSPs via an internal Ethernet switch.

  • Page 21: Design Considerations

    HERMAL ESIGN The thermal design for IVDO MULTI E+2 is conduction cooled utilizing both a heat frame and wedge lock system to move heat from the internal unit to finned heat sinks located on the surfaces of the chassis. The unit is designed to work with airflow across the external heat sink surfaces provided in the installation.

  • Page 22: Shock

    Figure 5-1: Overall System Block Diagram Internally, the connections are via to the backplane; however, all connectors are accessed from the front of the IVDO MULTI E+2 unit. The boards are mounted from top to bottom as follows: Page 22...

  • Page 23: Backplane (C09200)

    The Main Board is responsible for the control of the data flow and the processing of video data, audio data and metadata in the IVDO MULTI E+2. The control of the data flow includes the data conditioning at the interfaces (i.e. ADC), multiplexing (data selection) and routing the encoded data to the appropriate outputs.
  • Page 24 5.3.2.1. Processor The Main Board for the IVDO MULTI E+2 is based on a main processor running at 1.0 GHz. The Main Board takes advantage of the high-speed PCI Express technology by attaching to a PCIe bridge. The PCI side of the bridge attaches to a USB bridge to allow external storage of data if required.
  • Page 25 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 5.3.2.4. USB Port A USB 2.0 port is available for use to move data to external storage devices. A standard USB to SATA adapter or external SATA cable could also be used if a SATA drive is available.
  • Page 26 5.3.2.6.4. SDI Video Interface The IVDO MULTI E+2 has four (4) SDI inputs or four (4) SD inputs, each capable of supporting rates up to 2 Mbps. Each input automatically adjusts for various cable lengths to provide optimum signal strength. These inputs supports SMPTE 292M for cable lengths up to 200 meters.
  • Page 27 DSP Encoders. 5.3.2.8. DSP Circuits The IVDO MULTI E+2 design incorporates four (4) DSPs each running various customer-specified video compression/encoding algorithms. Each DSP is independent from the other 3 and therefore gives a very flexible architecture to the system design.

  • Page 28: Power Supply Board (C09203)

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 5.3.3. P (C09203) OWER UPPLY OARD This card incorporates a military industry proven power input filter and DC-DC converter operating from +28V input source. The various filters and supplies are designed to meet all standard aircraft specifications. A “hold-up” module has been added, along with 6000 µF of Hold-up capacitance, to pass the 50 ms dropout...

  • Page 29: Installation

    19 to gain an understanding of the equipment. The IVDO MULTI E+2 consists of a single component (unit). Control or the setup of the encoder is performed via the IVDO MULTI E+2 GUI. The following steps are a guide to successfully installing the IVDO MULTI E+2 and associated equipment: 1.
  • Page 30 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 6-1 System Configuration Page 30 UNCLASSIFIED IVDO MULTI E+2...

  • Page 31: General Cable Installation

    This keying also ensures that the connector goes on properly. When the connector is properly in place it can be tightened to the unit by turning it clockwise. 6.4. Installation of IVDO MULTI E+2 Chassis ® Figure 6-2 iVDO Multi E+2 Front View 6.4.1.

  • Page 32: Ivdo Multi E+2 Chassis Leds

    Figure 6-4 Front Hold Down Brackets 6.4.2. IVDO MULTI E+2 C HASSIS ® The iVDO Multi E+2 main chassis contains three LEDS on the main unit. Table 6-1 IVDO MULTI E+2 LEDs Name Color Definition Power Green ON = Power is applied...
  • Page 33 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual input into the video output connector. The spacing for all connector keys is illustrated Table 6-3 Connector Pin-outs starting on page 35. The J5 part number ends with a “D”, indicating key spacing different from all the others. The “P” and “S” in the part numbers indicate Plug and Socket respectively.
  • Page 34 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 6-5: IVDO MULTI E+2 Connector Locations (Front) Page 34 UNCLASSIFIED IVDO MULTI E+2...
  • Page 35 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 6.4.3.3. Connector Pin Outs All pin-out numbers listed in the following table are as viewed ¾ from the front of the chassis, looking into the connector. Connectors that have the same number of pins and same shell size are differentiated by the key locations.
  • Page 36 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 6-3 Connector Pin-outs Illustration Name Pins Function S-Video Y Loop Shield 1 S-Video Y Loop 1 S-Video C Loop 1 S-Video Y Loop 3 S-Video C Loop Shield 1 S-Video Y Loop 2...
  • Page 37 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 6-3 Connector Pin-outs Illustration Name Pins Function Audio Left Loop 1 Audio Loop Left GND 1 Audio Left Loop 4 Audio Right Loop 1 Audio Loop Right GND 1 Audio Loop Left GND 4...

  • Page 38: Chassis Views

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 6.5. Chassis Views ® The following figures illustrate the iVDO MULTI E+2 from the front and the rear. Figure 6-6 Chassis ¾ Front View Figure 6-7 Chassis ¾ Rear View Page 38 UNCLASSIFIED...

  • Page 39: Configuration And Control

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 7. Configuration and Control After the main unit has been installed and powered up, go to the control PC and start the WEB browser. 7.1. Starting the WEB Browser ® Access to the iVDO Multi E+2 Encoder control requires use of a WEB browser such ®...
  • Page 40 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-1 Login Page Click on Supervisor, Operator, or Technician to open either of the logon windows illustrated in Figure 7-2 below. The default Passwords and User IDs are listed in Table 7-1 on page 41.
  • Page 41 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Enter the User Name and Password to open the main menu and IVDO MULTI E+2 Home page as illustrated in Figure 7-6 on page 44. Table 7-1 Default Password & User ID Access Level User ID...
  • Page 42 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Click on a menu item with a “+” in the box to open a submenu for that item with additional selections. The submenu will remain open until the box with a “+” is clicked again.

  • Page 43: Ivdo Multi E+2 Home Page

    Amber Degraded / Partial Non Operational / Not Connected To shut down the iVDO Multi E+2 Encoder, deselect the Audio Enabled, Metadata Enabled and Output Enabled check boxes and then click the Submit button for all the streams. HW Manual...
  • Page 44 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-6 IVDO MULTI E+2 Home Page 7.3.3.1. Overall Status ® The “Overall Status” LED indicates the overall health of the iVDO Multi E+2 Encoder. If the unit is fully operational, then the status will denote “Fully Operational”...
  • Page 45 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 7.3.3.5. Encoders / Multiplexers ® The DSPs (encoders) of the iVDO Multi E+2 are given their parameters for operation from the main processor over the internal Ethernet network. The communications between the DSPs (encoders), multiplexers and the processor are continuously monitored.

  • Page 46: Video Settings

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-7 TCDL Options (Available Outputs) A user can individually enable metadata and audio for these streams as well as enable/disable transmission (output) of these streams to TCDL by checking/un- checking the selection boxes.
  • Page 47 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-9 Video 1 Configuration Page Figure 7-10 Video 2, 3, and 4 Configuration Pages 7.3.4.1.1. Input resolution The user has the ability to configure the resolution and frame rate combination of the incoming video.
  • Page 48 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-11 Input Resolution Selections 7.3.4.1.2. Encoder frame rate The “Encoder Frame Rate” lets the user pick the number of frames out of the available frames every second to be encoded. The default for this field is “60.”...
  • Page 49 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-14 Video Encoding Selections 7.3.4.1.5. Brightness, Contrast, Hue and Saturation (This applies to SD video only.) The changes to “Brightness”, “Contrast”, “Hue”, and “Saturation” are applied prior to encoding the video input. The range of each parameter is 0 to 100, with default values of 50 for Brightness and Contrast, 0 for Hue and 50 for Saturation.

  • Page 50: Audio Settings

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 7.3.4.1.7. Encoder frame rate The “Encoder Frame Rate” let the user pick the number of frames out of the available frames every second to be encoded. The default for this field is “30.”...

  • Page 51: Metadata Settings

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-18 Audio Configuration Page 7.3.5.2. Input Volume The “Input Volume” field allows a user to configure the volume of the incoming audio. The changes to the volume are applied prior to encoding the audio. The range of each parameter is 1 to 100, with default values of 20.
  • Page 52 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 7.3.6.1. Mission Data The Mission Data page opens as the default metadata screen. Static metadata ® associated with a particular mission is entered into the iVDO Multi E+2 via this page. Figure 7-20 Mission Data Configuration Page ®...
  • Page 53 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-21 Security Data Configuration ® These fields are converted by the iVDO Multi E+2 to key length value (KLV) per MISB Standard 102.6 Security Metadata Universal and Local Sets for Digital Motion Imagery and inserted into the four generated MPEG2 Transport Stream once a second.
  • Page 54 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-22 Metadata Mission Data Screen Page 54 UNCLASSIFIED IVDO MULTI E+2...
  • Page 55 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-23 Metadata Security Data Screen Setting for Security Classification, Releasing Instructions, and Object Country Coding can be chosen from drop-down menus. Figure 7-24 Metadata Security Classification HW Manual UNCLASSIFIED Page 55...
  • Page 56 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-25 Metadata Releasing Instructions The Metadata Selection Figure 7-26 Metadata Selection There are two columns available: Metadata Elements and Selected Elements, with three buttons between them. Select data for use with the three buttons as follows:...

  • Page 57: Mpeg Streams

    Commercial Technical Manual ® The iVDO Multi E+2 Encoder receives the dynamic metadata from the IFD interface as defined in GM-0124A002-S IFD to IVDO MULTI E+2 Interface Requirements Specification. ® The iVDO Multi E+2 Encoder converts data received from the IFD into Key,...

  • Page 58: Ivdo Multi E+2 Outputs

    7.3.8. IVDO MULTI E+2 O UTPUTS Click on the IVDO MULTI E+2 Outputs button to open the IVDO MULTI E+2 Output configuration page. A user can select the source of the stream to the TCDL, Recorder (MDR) and the user laptops (LAN) on this page. The streams can be enabled or disabled as needed.

  • Page 59: System Settings

    7.3.9.1. Date and Time . The current date and time of the iVDO Multi E+2 will be displayed in the date and time box. This time is used by the transport stream multiplexer to accurately align the KLV metadata with the corresponding video frames.
  • Page 60 The date and time information cannot be manually entered. If the GPS is disabled, GPS signal is unavailable, or the GPS is non-operational, the IVDO MULTI E+2 will use an internally generated time for time stamping of the Packetized Elementary Streams.
  • Page 61 PC to the IVDO MULTI E+2 (by selecting the Upload button)or downloaded from the IVDO MULTI E+2 to the PC (by selecting the Download button). These files can be downloaded, edited, and then uploaded back to the IVDO MULTI E+2 to change the start-up configuration.
  • Page 62 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-34 Configuration File Upload/Download Page Clicking on the Browse button will open the Upload/Download file in the PC. This file must be configured in the PC so it can be accessed by this window.
  • Page 63 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual The system information page also displays the ambient temperature and the processor core temperature continuously. This page will auto refresh every five seconds to show the current temperature. Figure 7-36 System Information Page 7.3.9.5.
  • Page 64 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-38 Detailed Status Page 7.3.9.7. Network Settings Click on the Network Settings button to open the Network Settings Page illustrated below. This page contains read only values for the network parameters of the host processor and the DSP’s.
  • Page 65 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 7.3.9.7.2. Subnet Mask The “subnet mask” field is used to display the subnet mask for the selected node. The default subnet mask is 255.255.255.0 for both the host and the DSPs. A subnet mask of 255.255.255.1 allows 253 devices to reside on that network.
  • Page 66 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual A total of two streams can be sent to the TCDL. 7.3.9.8.1. TCDL Output Mode The user can select either Unicast (UDP/IP) or multicast (UDP/IP) depending on the configuration of the TCDL. Figure 7-41 TCDL Output mode Selection 7.3.9.8.2.
  • Page 67 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-42 MDR Settings Page ® The stream from the recorder to the iVDO Multi E+2 is Unicast (UDP/IP). ® If the iVDO Multi E+2 is able to send the stream to the recorder, then the indicator will show green.

  • Page 68: Control

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-43 LAN Settings Page 7.3.9.10.1. Payload Size Users can configure the “payload size” for the Ethernet packets to the LAN. This entry should be a multiple of 188 (Transport Stream Packet). The default packet size is 1,316 bytes.
  • Page 69 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-44 LED Brightness Settings Figure 7-45 Control Page Activity/Error Log: Click on the words LOG File to open the activity/error log. (An example of the log is illustrated in Figure 7-.) Clear LOG file: Click on the Clear LOG file button to remove all entries in the log file.

  • Page 70: Password

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-46 Activity Log Example 7.3.11. P ASSWORD Click on the Password button to open the password page illustrated below. Users will be able to change their own password. Figure 7-47 Password Page 7.3.12.

  • Page 71: Menu Structure

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 7-48 Help Screen (.pdf copy of this manual) 7.3.13. M TRUCTURE The menu structure is detailed below in Table 7-4. Menu level 1 is the top level menu displayed on the left hand side of the GUI. Menu level 2 is the submenu, displayed when the ‘+’...
  • Page 72 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level IVDO MULTI E+2 Home Overall Status Video Inputs Audio Input Metadata Input Encoders / Mux Replay Stream 1...
  • Page 73 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level Video Input HD-SDI Video Encoding H.264 Brightness No options Contrast No options No options Saturation No options Encoder Resolution 480p –...
  • Page 74 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level Mission Data Entry of Static Mission Data Mission ID Platform Tail Number Platform Designation Image Source Sensor...
  • Page 75 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level UMID Video UMID Audio UMID Data UMID System Stream ID Transport Stream ID Item Designator ID Metadata Selection...
  • Page 76 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level SENSOR IMAGE Slant Range Target Width Frame Center Latitude Frame Center Longitude Frame Center Elevation Offset Corner Latitude...
  • Page 77 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level Image Source Sensor Image Coordinate System Platform Call Sign UAS LDS Version Number Event Start Time - UTC...
  • Page 78 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level Transport Stream ID Item Designator ID MPEG Streams Video 1, 2, 3, 4 Encode Bit Rate / Date...
  • Page 79 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level DSP-3 Version Model Number DSP-4 Version Model Number Product ID FPGA Version (J5) Host CPU Temp (...
  • Page 80 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level TX Port Number Multicast TTL (Time-to- Live) MDR Settings MDR 1 TX Port Number Rx Port Number...
  • Page 81 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 7-4 Menu Structure Menu Menu Label Data Elements Information / Notes Supervisor Operator Technician Level Re-Type New Password Help Page Intentionally Left Blank HW Manual UNCLASSIFIED Page 81...

  • Page 83: Software Configuration

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 8. Software Configuration 8.1. System Default File ® The iVDO Multi E+2 obtains default power-up settings for all of parameters (except metadata) from the “global_config.sh” configuration file. This file can be edited using ®...
  • Page 84 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_aud_bitrate='12'; VAR_video1_rate='8000'; VAR_video1_audEnable='1'; VAR_video1_metaEnable='1'; VAR_video3_rate='8000'; VAR_video3_audEnable='1'; VAR_video3_metaEnable='1'; VAR_video2_rate='2000'; VAR_video2_audEnable='2'; VAR_video2_metaEnable='1'; VAR_video4_rate='2000'; VAR_video4_audEnable='2'; VAR_video4_metaEnable='1'; VAR_tcdl1_str='3'; VAR_tcdl1_outEnable='1'; VAR_tcdl2_str='4'; VAR_tcdl2_outEnable='1'; VAR_mdr1_str='1'; VAR_mdr1_outEnable='1'; VAR_mdr2_str='2'; VAR_mdr2_outEnable='1'; VAR_mdr3_str='3'; VAR_mdr3_outEnable='1'; VAR_lan1_str='1'; VAR_lan1_outEnable='1'; VAR_lan2_str='2'; VAR_lan2_outEnable='1'; VAR_lan3_str='3'; VAR_lan3_outEnable='1'; VAR_lan4_str='4'; VAR_lan4_outEnable='1'; VAR_gps_Enable='1'; VAR_ntp_ip='';...

  • Page 85: Metadata Configuration Default File

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_dsp3_ip='192.168.235.103'; VAR_dsp3_subnet='255.255.255.0'; VAR_dsp3_gateway='192.168.235.1'; VAR_dsp4_ip='192.168.235.104'; VAR_dsp4_subnet='255.255.255.0'; VAR_dsp4_gateway='192.168.235.1'; VAR_tcdl_txtype='1'; VAR_tcdl_payload='1316'; VAR_tcdl1_ip='239.255.0.1'; VAR_tcdl1_port='1234'; VAR_tcdl1_ttl='64'; VAR_tcdl2_ip=`239.255.0.1’; VAR_tcdl2_port='16408'; VAR_tcdl2_ttl='64'; VAR_mdr1_txport='16402'; VAR_mdr1_rxport='16502'; VAR_mdr2_txport='16404'; VAR_mdr2_rxport='16504'; VAR_mdr3_txport='16406'; VAR_mdr3_rxport='16506'; VAR_lan_payload='1316'; VAR_lan1_ip='239.192.2.1'; VAR_lan1_port='16408'; VAR_lan1_ttl='64'; VAR_lan2_ip='239.192.2.2'; VAR_lan2_port='16410'; VAR_lan2_ttl='64'; VAR_lan3_ip='239.192.2.3'; VAR_lan3_port='16412'; VAR_lan3_ttl='64'; VAR_lan4_ip='239.192.2.4'; VAR_lan4_port='16414'; VAR_lan4_ttl='64';...
  • Page 86 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_img_src_sensor='STAR SAFIRE HD'; VAR_img_src_sensor_Enable='enable'; VAR_img_coord_sys=''; VAR_img_coord_sys_Enable='enable'; VAR_sen_rel_roll_ang='0'; VAR_sen_rel_roll_ang_Enable='enable'; VAR_plat_call_sign=''; VAR_plat_call_sign_Enable='enable'; VAR_uds_lds_vno_Enable='enable'; VAR_Evt_start_time=''; VAR_Evt_start_time_Enable='enable'; VAR_sec_clasifi='1'; VAR_sec_clasifi_Enable='enable'; VAR_coun_coding_met='1'; VAR_coun_coding_met_Enable='enable'; VAR_classi_country='AU'; VAR_classi_country_Enable='enable'; VAR_sci_shi_info=''; VAR_sci_shi_info_Enable='enable'; VAR_caveats=''; VAR_caveats_Enable='enable'; VAR_Release_info=''; VAR_Release_info_Enable='enable'; VAR_classi_by=''; VAR_classi_by_Enable='enable'; VAR_derived_from=''; VAR_derived_from_Enable='enable'; VAR_classi_reason=''; VAR_classi_reason_Enable='enable'; VAR_declassi_date=''; VAR_declassi_date_Enable='enable';...

  • Page 87: Edit The Files

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_pt_head_agl='enable'; VAR_pt_pitch_agl='enable'; VAR_pt_roll_agl='enable'; VAR_pt_true_airspeed='enable'; VAR_wind_direction='enable'; VAR_wind_speed='enable'; VAR_pt_ground_speed='enable'; VAR_pt_magnet_heading='enable'; VAR_ground_range='enable'; VAR_gen_flag_data_01='enable'; VAR_sen_v_fld_view='enable'; VAR_sen_h_fld_view='enable'; VAR_sen_fld_view_name='enable'; VAR_sen_lati='enable'; VAR_sen_longi='enable'; VAR_sen_true_alti='enable'; VAR_sen_relat_azimuth='enable'; VAR_sen_relat_eleva='enable'; VAR_slant_range='enable'; VAR_frm_cen_lati='enable'; VAR_frm_cen_longi='enable'; VAR_frm_cen_eleva='enable'; VAR_offset_lati_pt1='enable'; VAR_offset_longi_pt1='enable'; VAR_offset_lati_pt2='enable'; VAR_offset_longi_pt2='enable'; VAR_offset_lati_pt3='enable'; VAR_offset_longi_pt3='enable'; VAR_offset_lati_pt4='enable'; VAR_offset_longi_pt4='enable'; VAR_trg_loc_lati='enable'; VAR_trg_loc_longi='enable'; VAR_trg_loc_eleva='enable';...

  • Page 88: Configuration Options

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_video1_type='1'; VAR_video1_resol='1'; VAR_video1_fps='60'; VAR_video1_i2p='100'; Figure 8-1 Example Block All of the configuration blocks follow this pattern. Each of the following tables has a corresponding section in the GUI pages. Go to the GUI page, determine which values you want preset and then use the tables below to configure a file that will create the setup automatically.

  • Page 89: Table 9-2 Video 3 Settings

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_video2_bright Brightness 1 to 100 VAR_video2_contrast Contrast 1 to 100 VAR_video2_hue 0 to 100 VAR_video2_satur Saturation 1 to 100 VAR_video2_resol Resolution 1 – 480p 2 – 720p60 3 – 1080p25 4 – 1080p30 5 –...

  • Page 90: Table 9-4 Audio Settings

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_video4_bright Brightness 1 to 100 VAR_video4_contrast Contrast 1 to 100 VAR_video4_hue 0 to 100 VAR_video4_satur Saturation 1 to 100 VAR_video4_resol Resolution 1 – 480p 2 – 720p60 3 – 1080p25 4 – 1080p30 5 –...
  • Page 91 VAR_video4_audEnable Audio Enable/Disable 1 – Enable 2 – Disable VAR_video4_metaEnable Metadata 1 – Enable Enable/Disable 2 – Disable Table 9-6 IVDO MULTI E+2 Outputs S.No Variable Meaning Valid Values Default Value VAR_tcdl1_str TCDL 1 Stream Type 1 – Video1 2 – Video2 3 –...

  • Page 92: Table 9-7 Date & Time Settings

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 2 – Disable VAR_lan2_str LAN 2 Stream Type 1 – Video1 2 – Video2 3 – Video3 4 – Video4 5 – Replay 1 6 – Replay 2 VAR_lan2_outEnable LAN 2 Output 1 – Enable 2 –...
  • Page 93 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 8-11 DSP2 Network Settings S.No Variable Meaning Valid Values Default Value VAR_dsp2_ip IP Address Class A/B/C IP Address 192.168.235.102 VAR_dsp2_subnet Subnet Mask IP Subnet Mask 255.255.255.0 VAR_dsp2_gateway Default Gateway IP Default Gateway 192.168.235.1...

  • Page 94: Metadata Configuration

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Table 9-14 TCDL Settings S.No Variable Meaning Valid Values Default Value VAR_tcdl_txtype Transmit Type 1 – Multicast 2 - Unicast VAR_tcdl_payload Payload Size 376 to 1316 1316 (Multiple of 188byte) VAR_tcdl1_ip IP Address Multicast / Unicast 192.168.235.249...

  • Page 95: Table 9-18 Security Datas

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_img_src_sensor_Enable Image Source enable/disable enable Sensor enable VAR_img_coord_sys Image Coordinate Up to 127 bytes Blank System VAR_img_coord_sys_Enable Image Coordinate enable/disable enable System enable VAR_sen_rel_roll_angle Sensor Relative 0-360 Roll Angle VAR_sen_rel_roll_angle_Enable Sensor Relative enable/disable...
  • Page 96 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_caveats Caveats Maximum Length Blank (Bytes) 32 VAR_caveats_Enable Caveats enable enable/disable enable VAR_Release_info Releasing Maximum Length Blank Instructions (Bytes) 40 VAR_Release_info_Enable Releasing enable/disable enable Instructions enable VAR_classi_by Classified By Maximum Length Blank (Bytes) 40...

  • Page 97: Table 9-19 Metadata

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_classi_comments_Enable Classification enable/disable enable Comments enable VAR_umid_video UMID Video Maximum Length Blank (Bytes) 32 VAR_umid_video_Enable UMID Video enable enable/disable enable VAR_umid_audio UMID Audio Maximum Length Blank (Bytes) 32 VAR_umid_audio_Enable UMID Audio enable enable/disable...
  • Page 98 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual VAR_sen_relat_eleva Sensor Relative enable / disable enable Elevation VAR_slant_range Slant Range enable / disable enable VAR_frm_cen_lati Frame Center enable / disable enable Latitude VAR_frm_cen_longi Frame Center enable / disable enable Longitude VAR_frm_cen_eleva Frame Center...
  • Page 99 UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual metadata is multiplexed asynchronously per RP- 217) VAR_meta_static_delay_s Static Metadata 1-60 Muxing Frequency in Seconds HW Manual UNCLASSIFIED Page 99...

  • Page 100: Resolution And Frame Rate

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual 8.4.3. R ESOLUTION AND RAME Table 9-21 For Resolution 480p, 720p/60 & 1080i S.No Option Value 60 fps 30 fps 25 fps 20 fps 15 fps 10 fps 5 fps 3 fps 2 fps...

  • Page 101: Maintenance And Troubleshooting

    EST AND NDICATORS Power is indicated by the POWER LED located on the IVDO MULTI E+2 front panel (left side). When power is applied it will flash and then turn on and be green at all times. Periodically check the system power to make sure it is delivering +28VDC to the IVDO MULTI E+2.

  • Page 102: Control Pc To Ivdo Multi E+2 Communications

    MULTI E+2, as well as the Flash and DDR memory. This LED is green and should be flashing at all times. When power is applied to the IVDO MULTI E+2 it performs a power- on self test. This power-on self test takes one to two minutes to run and the visual indications include the following: 1.

  • Page 103: Web Gui Start-Up

    9.2.3. WEB GUI S TART Use the WEB browser on the control PC to open the IVDO MULTI E+2 GUI as described in section 7.1 on page 39. Enter the IP Address of the IVDO MULTI E+2 to access the control interface.
  • Page 104 Check all video inputs for failed item. Replace have failed or are failed input with a known good source. LED missing. should turn green, if not, IVDO MULTI E+2 is bad, replace unit. Audio Input Green System Operational No action required.

  • Page 105: Troubleshooting Procedure

    9.3. Troubleshooting Procedure The primary tool for determining the system health is the IVDO MULTI E+2 Home page of the GUI. Information on the items contained therein will be found in Section 7.3.3 starting on page 43.

  • Page 106: Configuration File Procedures

    9.6 Restore Configuration Settings on page 109. 9.4. Configuration File Procedures The IVDO MULTI E+2 comes from the factory with two configuration files loaded; the global_config.sh) listed in Section 9.4.1 (page 90) Global configuration file ( and the metadata_config.sh) listed in Section 9.4.2 (page 96). This...

  • Page 107: Update The Files

    PC folder to the IVDO MULTI E+2. 9.4.5. R ESTORE THE ILES In the event that a file in the IVDO MULTI E+2 should become corrupted, perform the Upload Files procedure for the corrupted file. HW Manual UNCLASSIFIED...

  • Page 108: Firmware Upgrade

    Multi E+2 Commercial Technical Manual 9.5. Firmware Upgrade Periodically the Host and DSP firmware may be upgraded by Cornet Technology, Inc. When this occurs, CTI will e-mail the new files to the customer for uploading into the IVDO MULTI E+2.

  • Page 109: Restore Configuration Settings

    They are illustrated in the figure below. When the Upgrade is complete, Update Successful will appear on the screen. 9. When all upgrades are complete, power cycle the IVDO MULTI E+2 to force a hard reboot of the system. Host Upgrade Messages...

  • Page 110: Index

    UNCLASSIFIED iVDO Multi E+2 Commercial Technical Manual Figure 9-8 Restore Configuration Settings 2. Click on the Global button to restore Global values in the Global Configuration File. 3. Click on the Metadata button to restore Metadata values in the Global Configuration File.
