- Page 1 Manual Rev. 02...
- Page 2 Thank you for choosing To get the most out of your CSL Pedals Load Cell Kit, please read this manual before first use. It contains important health and safety informa- tion and should be retained for future reference.
-
Page 3: Table Of Contents
INDEX 1. General ......................... 2. Compatibility ......................3. Package Contents ....................4. Assembly ......................4-14 4.1 Plan Your Setup ................... 4.2 Attachment ....................4.3 Pedal Plate Adjustment ................4.4 Connections ....................9-12 4.5 Tuning Options ..................... 13-14 5. Cleaning ....................... 6. - Page 4 WARNING! Photosensitive Seizures A small percentage of people may experience a seizure when exposed to certain visual images, including flashing lights or patterns that may appear in video games. Even people who have no history of seizures or epilepsy may have an undiagnosed condition that can cause these “photosensitive epileptic seizures”...
-
Page 5: General
WARNING! Electrical Safety: The CSL Pedals Load Cell Kit must be connected to the appropriate wheel base port or PC USB port: • If the CSL Pedals Load Cell Kit becomes damaged in any way, stop usage immediately and contact Fanatec Customer Support: Fanatec.com/support/faq. -
Page 6: Compatibility

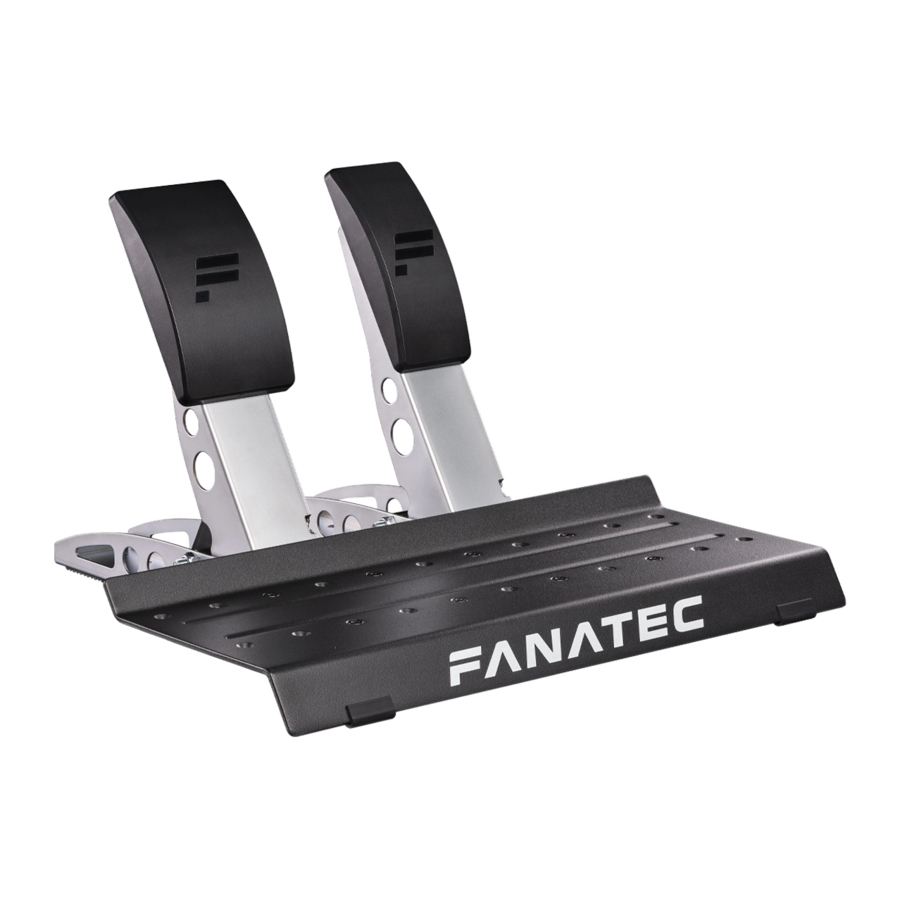

COMPATIBILITY The CSL Pedals Load Cell Kit can be used with all CSL, CSL Elite, ClubSport, and Podium series wheel bases as well as standalone on a PC when attached to a CSL Pedals set. IMPORTANT: We always recommend updating... -
Page 7: Package Contents
PACKAGE CONTENTS 1x CSL Pedals Load Cell Module 1x USB Cable 1x RJ12 Cable (~ 180 cm) (~ 45 cm) 4x Countersunk Torx Bolts 1x T20 Torx Key... -
Page 8: Assembly
ASSEMBLY PLAN YOUR SETUP To get started with using the CSL Pedals Load Cell Kit, decide on your preferred pedal module position, and pedal plate position. then connect the CSL Pedals Load Cell Kit to your wheel base via the included RJ12 cable or to a PC via USB. -
Page 9: Attachment
ATTACHMENT Remove the RJ12 cable of the standard brake module from the accelerator pedal module of your CSL Pedals and remove the cable from the cable management clips. BRAKE Remove the bolts of the brake and accelerator pedal units modules from the heel rest of... - Page 10 Move the brake and accelerator pedal modules outwards. (Exclude the standard brake module if you choose to not use the standard brake module as a clutch) Place the CSL Pedals Load Cell Kit module under the heel rest in your preferred position. ATTENTION:...
- Page 11 Insert the included bolts of the CSL Pedals Load Cell Kit unit and the bolts of the brake and accelerator pedal modules, then firmly secure the pedal units to the heel rest. (Exclude the standard brake if you choose to not use the standard brake as a clutch) OPTIONAL STEP: Remove the foam insert from the standard brake module if you choose to use the standard brake as a clutch.
-
Page 12: Pedal Plate Adjustment
PEDAL PLATE ADJUSTMENT The CSL Pedals Load Cell Kit module features a height-adjustable pedal plate. There are 3 height settings that can be adjusted in descending increments of 15 mm. Use the included T20 Torx key to loosen the bolts... -
Page 13: Connections
CONNECTIONS Connect the included RJ12 cable to the ‘Wheel Base / Load Cell’ port of the accelerator module and to the ‘Load Cell’ port of the CSL Pedals Load Cell module. Wheel Base / Load Cell... - Page 14 Connect the standard brake module cable to the ‘Clutch’ port of the accelerator module. (If you choose to use the standard brake module as a clutch) Brake Clutch BRAKE Insert the cables into the cable management clips...
- Page 15 IMPORTANT! Do not connect the Pedals via RJ12 and USB at the same time! OPTION 1 Connect the CSL Pedals Load Cell module to a Windows PC via the included USB cable Windows PC Windows PC...
- Page 16 OPTION 2 Connect the CSL Pedals Load Cell module to a Fanatec wheel base via the RJ12 cable included with the Windows PC standard CSL Pedals. Windows PC PC Mode Update Firmware Installing... Update wheel base firmware...
-
Page 17: Tuning Options
TUNING OPTIONS After installing the Fanatec PC Driver (Fanatec Control Panel) open the Fanatec Control Panel, then navigate to ‘Pedals’ as shown below: BRF (Brake Force) 010 ... 100 BRF default: 050 Brake Force changes the force needed to reach 100% brake input for load cell brake pedals and is available when a pedal set featuring a load cell brake is connected to a wheel base via RJ12 and to a PC via USB. - Page 18 BRF (Brake Force) acts as the maximum value setting for the load cell brake and is accessible via the wheel base Tuning Menu as well. The brake ‘Min’ and ‘Max’ / ‘Min’ options for the other pedals are only accessible via the Fanatec Control Panel.
-
Page 19: Cleaning
Clean only with a dry or slightly damp microfibre cloth. Using cleaning solutions may damage your CSL Pedals Load Cell Kit. TROUBLESHOOTING The CSL Pedals Load Cell Kit must not be modified in any way, other than what is explicitly described in this manual. Endor AG expressly prohibits ®... - Page 20 Problem description Solution Connect the CSL Pedals LC to a PC or a wheel base. Start the Fanatec Control Panel and check the indicator bars of each pedal Pedal signal of the CSL Pedals and / or CSL while pressing each corresponding pedal.
-
Page 21: Video Manual
CSL Pedals Load Cell Kit: ……………...…..…………..The serial number is located at the bottom of the gas pedal unit. The serial number of the CSL Pedals Load Cell Kit starts with letters ‘LC’ and has additional 8 numbers, for example: LC021000370. -
Page 22: Compliance
Imported and distributed by Endor America LLC 8200 Wilshire Blvd. Suite 200 - Beverly Hills CA 90211 - USA Telephone: +1 321-655-3524 Email: webshop@fanatec.com Website: www.fanatec.com - www.endor.ag Endor Australia Pty Ltd 3 Staley Street, California Gully, Vic, 3556 - Australia Telephone: 661 453 979 40 Email: webshop@fanatec.com... -
Page 23: Warranty
In case of issues apparently related to system software / firmware as well as any other product related issues, Endor recommends checking the FAQ database at fanatec.com/ support/faq to see if your problem can be solved there. - Page 24 E.ON-Allee 3 - 84036 Landshut - Germany EU: 00800 0 FANATEC or +49 (871) 9221 -122 US/CANADA: 011 800 0 FANATEC or +49 (871) 9221 -122 AUSTRALIA: 00800 0 FANATEC or +49 (871) 9221 -122 JAPAN: +81 306 7172 -719 Email: info.webshop@fanatec.com...
