Tri Climb - Trifix - Bottom Joints
GB - ASSEMBLY INSTRUCTIONS, MAINTENANCE
AND SAFETY INFORMATION
TRIFIX JOINTS
The Tri Fix joint system consists of two top joints (already connected to your attachment) and two
bottom joints which you will need to connect. Connecting the bottom joints is straightforward.
TOP JOINT (already connected)
IMPORTANT - The top and bottom joints are NOT the same. The top joints have shallow cutouts whereas
the bottom joints have deeper cut outs. This is important to remember.
WARNING: Connecting the accessory should be attempted by adults only. The locking connector is an
important safety feature and should always be fully engaged prior to use.
Once assembled - Suitable for ages 0+ Weight limit – 100kg

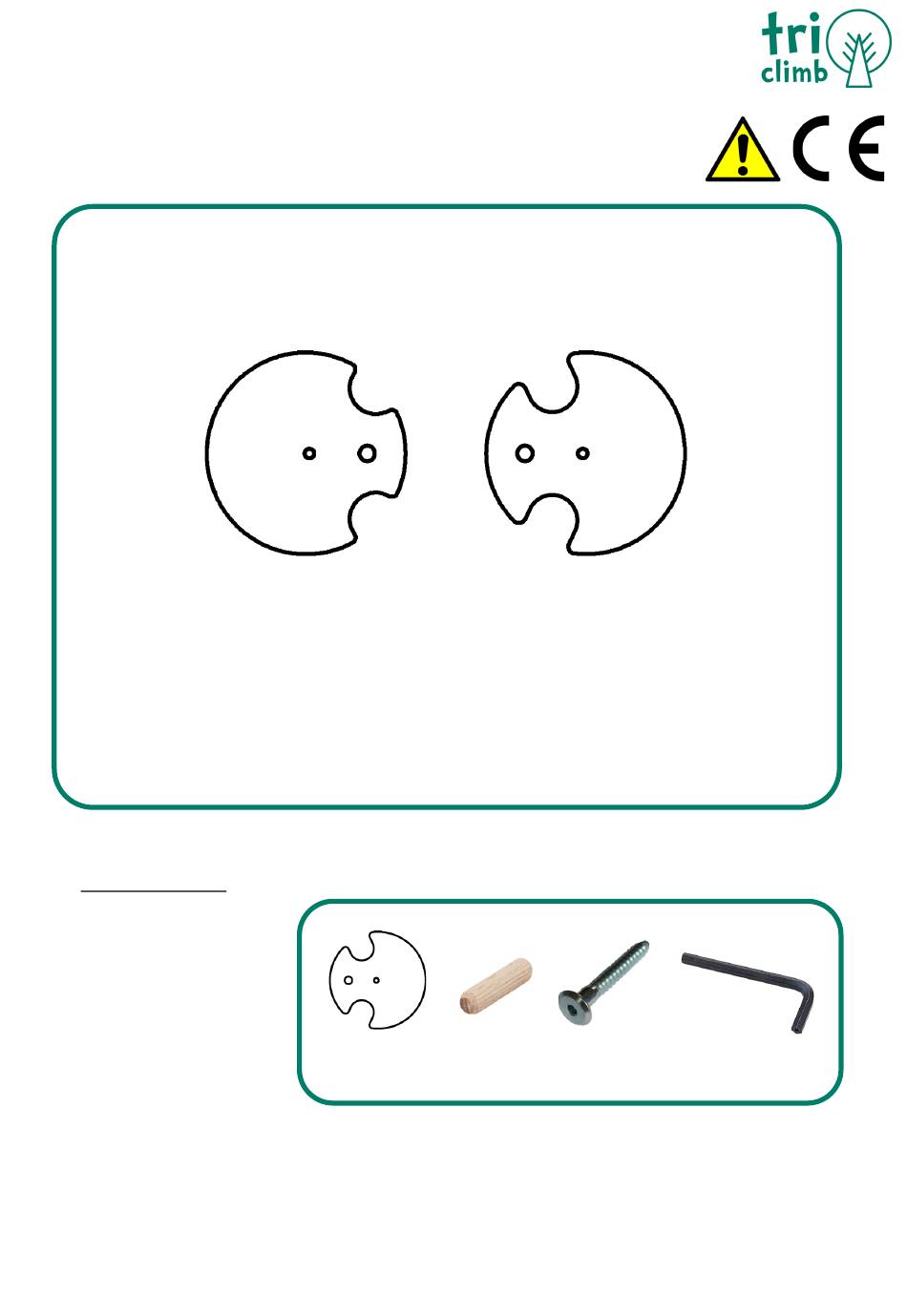

ASSEMBLY GUIDE
CONTENTS
A - Bottom Joints x 2
B - Dowels x 2
C - Screw x 2
D - Allen Key
Tools needed:
Hammer
Hex head Allen key (provided)
Check all parts are present.
BOTTOM JOINT
A
B
C
D
Advertisement
Table of Contents
Related Manuals for Triclimb Trifix Bottom Joints
Summary of Contents for Triclimb Trifix Bottom Joints
- Page 1 Tri Climb - Trifix - Bottom Joints GB - ASSEMBLY INSTRUCTIONS, MAINTENANCE AND SAFETY INFORMATION TRIFIX JOINTS The Tri Fix joint system consists of two top joints (already connected to your attachment) and two bottom joints which you will need to connect. Connecting the bottom joints is straightforward. TOP JOINT (already connected) BOTTOM JOINT IMPORTANT - The top and bottom joints are NOT the same.
- Page 2 REMOVE STEP 1 At the bottom of your attachment you will find pre-drilled holes on both sides. Immediately adjacent to these holes there will be a screw that you will need to remove. Once you remove both bottom screws you can begin to attach your bottom joints.
- Page 3 Important – Connecting your Attachment As the names suggest, when connecting an attachment (e.g. a MIRI or ladder) between two base units (e.g. a Triclimb frame or Archi), the top joints must always be higher than or at the same level as the bottom joints. this will ensure the locking system works well.
- Page 4 BOTTOM JOINT TOP JOINT Do I need to remove the bottom joints to use my attachment with only one frame? You do not need to remove your bottom joint to use the attachment as a stand-alone product or when only using one unit. Please note: In some configurations, there will be some slight linear movement.
- Page 5 Do not use abrasive cleansers. * Do not modify the unit. Triclimb Ltd is not responsible for any injury arising as a result of modifications made by customers to our products without our supervision, testing, or evaluation.
- Page 6 Product: Trifix Bottom Joints Finish: Natural Code: TC BJ: A WARNINGS: For interior, domestic use only. Suitable for ages: 0+ Weight limit: 100kg...
