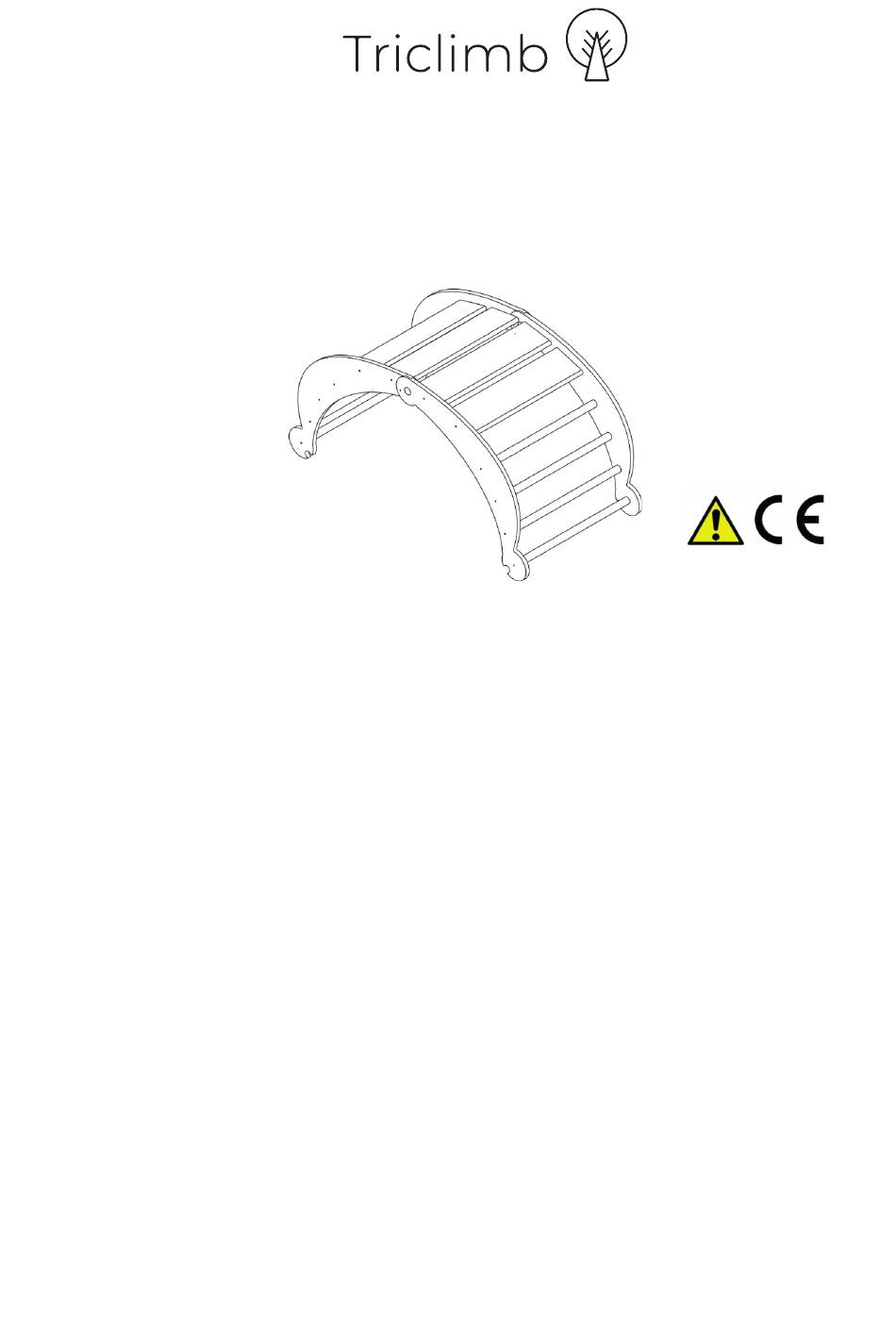

ARCHI – Folding Rocker and Climber
GB - ASSEMBLY INSTRUCTIONS, MAINTENANCE AND SAFETY INFORMATION
Suitable for ages 0+ | Weight limit – 50kg (100kg when connected to the Triclimb base unit)
ENCOURAGE – ENHANCE – ENGAGE
TRICLIMB - Encouraging children to develop motor skills independently in their own time, to enhance their
creativity and to become engaged in problem solving.
Benefits of Play – Triclimb products provide a surface designed for climbing which is intended for young
children. Younger children are still developing a sense of judgement and learning the strength of their own
bodies. They will be testing how far and how high they can jump and move. Their balance is still under
development, and they are learning how to solve physical problems using their bodies. The Triclimb products
therefore provide a chance to develop all sorts of skills appropriate to their age; climbing gives them the
opportunity to test, retest and perfect their strength, coordination, self-confidence, concentration and
independence.
Designed and built to the highest safety standards using FSC certified timber, our products are extremely
strong and sturdy. All products are independently tested (EN71:1, 2, 3 and 8) giving you peace of mind.

CARE INSTRUCTIONS

Caring for your Triclimb Archi is not only essential for ensuring safety, but will also add years to its life for
your children to play on and enjoy it as they grow.
WARNING: If the checks and maintenance of the Triclimb Archi are not carried out the activity toy could
overturn or otherwise become a hazard.
*All bolts and fixings should be checked regularly and tightened if necessary.
*It is important to check your Triclimb Archi for wear and damage regularly. If you are unsure as to the
integrity of any component, replace it immediately.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCHI and is the answer not in the manual?

Questions and answers

Summary of Contents for Triclimb ARCHI

  • Page 1 All products are independently tested (EN71:1, 2, 3 and 8) giving you peace of mind. CARE INSTRUCTIONS Caring for your Triclimb Archi is not only essential for ensuring safety, but will also add years to its life for your children to play on and enjoy it as they grow.
  • Page 2 finish. Do not use abrasive cleansers. * Do not modify the unit. Triclimb is not responsible for any injury arising as a result of modifications made by customers to our products without our supervision, testing, or evaluation.
  • Page 3 Tools needed: Hex head Allen key (provided) | Mallet or hammer. A rubber mallet is ideal; if using a wooden mallet or claw hammer please ensure suitable protection is applied to surface of the Archi. Cut out facing up Cut out facing down Place the pre-assembled legs (D) flat on the floor with the larger rung holes facing up.
  • Page 4 Ensure all rails are flush with the leg. Turn the Connect the rungs (A) x 8 to one pair of legs. One assembly on its side. Insert flat head screws (D) at a time, place the rungs into the recessed holes into each rail and tighten using the hex key on the legs.
  • Page 5 E x 12 CHECK POINT Check whether your Archi sits flat on the ground. If not, you will need a book (or something similar) about 40mm thick to act as a raiser. Perform the following steps: 1) Open the Archi frame and insert the thumb screws.
  • Page 6 The rocker has our innovative Trifix system built in which means you can connect it directly to a second Archi or a Triclimb frame without the need for any additional joints or tools – it works in the same way as the Triclimb attachments (e.g.
  • Page 7 - First to first CLIMBING rungs of the Triclimb/Mini (Fig 4) or First to second CLIMBING rungs of the Triclimb/Mini PLEASE NOTE: Archi has been independently laboratory tested (EN71:1, 2, 3 and 8) as a rocker and as climber on and off the Triclimb base units.
  • Page 8 Prior to use you must ensure you lock the attachment in place using our specially designed locking method to ensure it does not move whilst in use. The connection is the same as that used on the Triclimb to connect an attachment.
