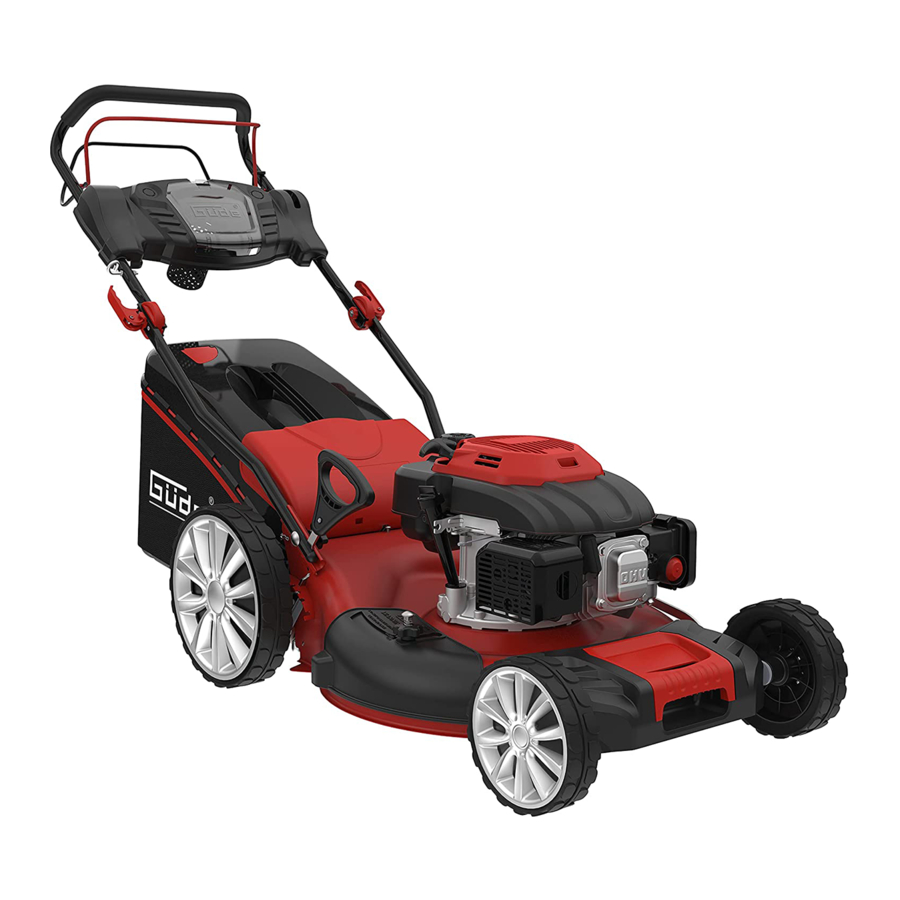

Big Wheeler 554.2 R
95434
Benzin-Rasenmäher
Petrol Lawnmower
Tondeuse thermique
Rasaerba a scoppio
Cortadora de césped a gasolina
Benzine grasmaaier
Benzinová sekačka na trávu
Benzínovej kosačky
Benzinmototos Kaszaloge
Benzines fűnyíró

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIG WHEELER 554.2 R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GÜDE BIG WHEELER 554.2 R

  • Page 1 ------- Překlad originálního návodu k provozu Benzinová sekačka na trávu ------- Preklad originálneho návodu na prevádzku Benzínovej kosačky ------- Tłumaczenie oryginalnej instrukcji obsługi Benzinmototos Kaszaloge ------- Az eredeti használati utasítás fordítása Benzines fűnyíró Big Wheeler 554.2 R 95434...
  • Page 2 DEUTSCH Bitte lesen Sie die Betriebsanleitung vor Inbetriebnahme sorgfältig durch. ENGLISH Please read the instructions carefully before starting the machine. FRANÇAIS Veuillez lire avec soin le mode d‘emploi avant la mise en service ITALIANO Leggere attentamente le istruzioni per l‘uso prima di mettere in funzione l‘elettroutensile. ESPAÑOL Por favor, lea este manual de instrucciones detalladamente antes de la puesta en funcionamiento.
  • Page 3 Lieferumfang Scope of delivery Fourniture Dotazione Piezas suministradas Meegeleverd van de IT IT levering Rozsah dodávky Rozsah dodávky Zakres dostawy Szállítási terjedelem...
  • Page 4 Gerätebeschreibung Device description Description du dispositif Dotazione Descripción del dispositivo EN  EN  FR  FR  IT  IT  ES  ES  Beschrijving van het apparaat Popis zařízení Opis zariadenia Opis urządzenia Eszközleírás. NL  NL  CZ  CZ  SK  SK  PL  PL  (2a) (2b) (2c) (2d) (3a) (3b)
  • Page 5 Gerätebeschreibung Device description Description du dispositif Dotazione Descripción del dispositivo EN  EN  FR  FR  IT  IT  ES  ES  Beschrijving van het apparaat Popis zařízení Opis zariadenia Opis urządzenia Eszközleírás. NL  NL  CZ  CZ  SK  SK  PL  PL  (2b) Oberer Führungsholm (8a) Füllstandsanzeige Upper handlebar Guidon supérieur...
  • Page 6 Deutsch Technische Daten / Gerätebeschreibung / Sicherheitshinweise / Bestimmungs- gemäße Verwendung / Verhalten im Notfall / Symbole / Wartung / Entsorgung / Gewährleistung / Service ��������������������������������������������� English Technical Data / Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service �������������������������������������������������������������������...
  • Page 7 Montage Assembly Assemblage Montaggio Montaje EN   EN   FR   FR   IT   IT   ES   ES   Montage Montáž Montáž Montaż Szerelés ���������������� NL   NL   CZ   CZ   SK   SK   PL   PL   HU   HU   Inbetriebnahme starting-up the device Mise en service Messa in funzione EN  EN ...
  • Page 11 DE   Vor Erstinbetriebnahme muss der Vóór de eerste ingebruikname dient NL   NL   Motor unbedingt mit Motorenöl de motor beslist met motorolie befüllt werden. Überprüfen Sie vor gevuld worden. Controleer voor jeder Inbetriebnahme den Ölstand. iedere inbedrijfstelling de oliestand. 10W-40 Vul eventueel de motorolie bij. Check the oil level whenever the EN ...
  • Page 12 Test 0,6 l 10W-40 0,6 l...
  • Page 13 Aus Gründen der Qualitätssi- Z důvodů zajištění kvality se každé cherung wird jedes Gerät einem zařízení podrobuje zkušebnímu cho- Probelauf unterzogen und mit du a naplní motorovým olejem. Před Motorenöl befüllt. transportem se olej zase vypustí, na Vor dem Transport wird das Öl měřící...
  • Page 14 SUPER SUPER PLUS SUPER E10 NORMAL NORMAL E10 min. 3,00 m S T A R T...
  • Page 15 1 - 3 5 - 6 25 mm 75 mm CLICK...
  • Page 19 20° max.
  • Page 20 ca. 2 m...
  • Page 21 S T A R T S T A R T S T O P...
  • Page 22 Mehrzweckfett Multi-purpose grease Graisse multi-usage Grasso multiuso Grasa multiu- EN   EN   FR   FR   IT   IT   ES   ES   Universeelvet Víceúčelové mazivo Viacúčelový tuk Smar uniwersalny NL   NL   CZ   CZ   SK   SK   PL   PL   többcélú zsír HU   HU  ...
  • Page 23 0,6-0,8 mm...
  • Page 24 Papierfilter nur mit Schaumstoff Filtereinsatz Druckluft reinigen! foam filter insert mousse filtrante Niemals Wasser benutzen! inserto filtro in schiuma filtro de espuma Paper filter to be cleaned with com- Schuimrubberen filterelement pressed air only! Never use water! Pěnová vložka filtru Penová...
  • Page 25 95367...
  • Page 26 Der Motor startet nicht The motor does not start Le moteur ne démarre pas Motore non parte El motor no arranca ES ES IT IT   De motor start niet Motor nestartuje Motor neštartuje Silnik się nie uruchamia  A motor  ...
  • Page 27 S T A R T S T O P 10 min...
  • Page 28 30° max.
  • Page 30 >20 kg (44 lbs)
  • Page 31: Technische Daten

    DEUTSCH Technische Daten Benzin-Rasenmäher BIG WHEELER 554.2 R Artikel-Nr. 95434 1.590 x 586 x 943 Abmessungen L x B x H Power Engine S Motor Gewicht Netto/Brutto 33,7 / 37,4 kg 630 V Motortyp 4-Takt-Motor Motorleistung 3,5 / 4,8 (kW / PS)
  • Page 32: Bestimmungsgemäße Verwendung

    DEUTSCH Anforderungen an den Bediener Benutzen Sie das Gerät erst nachdem Sie die Bedienungsanleitung Der Bediener muss vor Gebrauch des Gerätes aufmerk- aufmerksam gelesen und verstanden sam die Bedienungsanleitung gelesen und verstanden haben. Machen Sie sich mit den Bedienungselementen haben. und dem richtigen Gebrauch des Gerätes vertraut.
  • Page 33 DEUTSCH Symbole Halten Sie in der Nähe stehende Personen auf sicheren Abstand zur Maschine (min- destens 5 m). Achtung! Vor allen Arbeiten am Gerät Motor aus- schalten. Zur Verringerung eines Verletzungsrisikos Betriebsanleitung lesen Gehörschutz tragen. Rauchen und offenes Feuer verboten. Schutzbrille tragen.
  • Page 34 DEUTSCH Maschine eingesetzt wird, und entfernen Sie alle Überprüfen Sie vor jeder Inbetriebnahme Gegenstände, die erfasst und weggeschleudert werden sämtliche Schraub- und Steckverbindungen sowie können. Schutzeinrichtungen auf Festigkeit und richtigen Sitz Seien Sie aufmerksam, achten Sie darauf, was Sie tun, und ob alle beweglichen Teile leichtgängig sind.
  • Page 35: Wartung

    DEUTSCH abkühlen lassen. Nur Originalzubehör und Originalersatzteile verwenden. Bauteile, deren Austausch nicht beschrieben wurde, nur Bewahren Sie niemals die Maschine mit Benzin im Tank beim Hersteller auswechseln lassen. innerhalb eines Gebäudes auf, in dem möglicherweise Das Verwenden nicht originaler Ersatzteile ist nicht gestat- Benzindämpfe mit offenem Feuer oder Funken in Be- tet.
  • Page 36: Störungssuche

    DEUTSCH Inspektions- und Wartungsplan Bei Nichteinhaltung des Wartungsplanes kann es zu Schäden am Motor kommen! Regelmäßige Wartungsperiode Vor jeder Nach 1 Nach 3 Nach 6 Nach 12 Nach 24 Inbetrieb- Monat Monaten Monaten Monaten Monaten nahme Betriebs- Betriebs- Betriebs- Betriebs- Betriebs- stunden stunden...
  • Page 37: Technical Data

    ENGLISH Technical Data Petrol Lawnmower BIG WHEELER 554.2 R Art. No 95434 1.590 x 586 x 943 Dimensions L x W x H Power Engine S Engine Net/gross weight 33,7 / 37,4 kg 630 V Engine Type 4-stroke motor Motor power...
  • Page 38: Specified Conditions Of Use

    ENGLISH Emergency procedure Read and understand the operating instructions before using the appliance. Familiarise with the control Risk of injury elements and how to use the appliance properly. Abide Never put your hands and feet near the rotating by all the safety measures stated in the service manual. parts.
  • Page 39: Safety Warnings

    ENGLISH Safety Warnings Activate the primer 3x if the motor is warm. Warning Activate the primer 6x if the motor is cold. Read all safety warnings and all instructions.  Failure to follow the warnings and instructions may result in Mulching MULCHEN electric shock, fire and/or serious injury.
  • Page 40: Maintenance

    ENGLISH Switch the mower off whenever carrying or inclining it Risk of poisoning! or when being outside a grass area. Wait until all rotating parts have stopped. Exhaust fumes, fuel and lubricants are toxic substan- ces. Breathing in exhaust fumes may be fatal! If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and Use the appliance only outside, never use it in confi-...
  • Page 41: Inspection And Maintenance Plan

    ENGLISH Guarantee Service The guarantee solely covers inadequacies caused by ma- Do you have any technical questions? Any claim? Do terial defect or manufacturing defect. Original payment you need any spare parts or operating instructions? We voucher with the sales date needs to be submitted for will quickly help you and without needles bureaucracy any claim in the guarantee period.
  • Page 42: Defects Searching

    ENGLISH Defects searching Failures Causes Removal The motor does not start Start-Stop lever has not been pressed Press the Start-Stop lever Primer pump not activated Activate primer pump Lack of fuel Add some fuel Bowden cables are too long Adjust the Bowden cables using the coupling nut.
  • Page 43: Caractéristiques Techniques

    FRANÇAIS Caractéristiques techniques Tondeuse thermique BIG WHEELER 554.2 R N° de commande 95434 1.590 x 586 x 943 Dimensions L x l x H Power Engine S Moteur Poids net/brut 33,7 / 37,4 kg 630 V Type de moteur Moteur à 4 temps...
  • Page 44: Utilisation Conforme Aux Prescriptions

    FRANÇAIS la notice. Une formation spéciale n’est pas nécessaire. Lisez attentivement ce mode d‘emploi avant la première utilisation de la Conduite en cas d’urgence pompe et assurez-vous de l‘avoir bien compris. Familiarisez-vous avec les éléments de commande et l‘utilisation correcte de l‘appareil. Danger de blessures ! Respectez toutes les consignes de sécurité...
  • Page 45 FRANÇAIS Sens de pose Vérifiez le niveau d‘huile, éventuelle- ment en rajouter. Marque TÜV / GS Faites le plein d‘essence. Faites fonctionner l‘amorce 3 fois lorsque le moteur est chaud. Faites fonctionner l‘amorce 6 fois lorsque le moteur est froid. Mulchage MULCHEN Éjection...
  • Page 46 FRANÇAIS Instructions De Sécurité Particulieres Risque d‘intoxication! Avertissement Les fumées d‘échappement, le carburant et les lubrifiants sont des substances toxiques. Respirer des Lisez toutes les consignes et instructions de sécurité.  fumées d‘échappement peut être mortel ! Le non-respect des avertissements et instructions indiqués ci après peut entraîner un choc électrique, un Utilisez l‘appareil uniquement à...
  • Page 47: Entretien

    FRANÇAIS Marchez ! Ne courez pas ! moteur et le pot d’échappement doivent être exempts d’herbe, de feuilles et de graisse excédentaire. Soyez particulièrement prudents lorsque vous tournez ou lorsque vous tirez l‘appareil vers vous. Traitez toutes les pièces mobiles avec une huile écolo- gique.
  • Page 48: Recherche Des Pannes

    FRANÇAIS Plan des révisions et de l’entretien En cas de non-respect du plan de maintenance, le moteur peut se trouver endommagé ! Période d‘entretien régulière Avant Après 1 Après 3 Après 6 Après 12 Après 24 chaque mois mois mois mois mois mise en marche...
  • Page 49: Dati Tecnici

    ITALIANO Dati tecnici Rasaerba a scoppio BIG WHEELER 554.2 R N°. Articolo 95434 1.590 x 586 x 943 Dimensioni L x P x H Power Engine S Motore Peso netto/lordo 33,7 / 37,4 kg 630 V Tipo di motore Motore a 4 tempi...
  • Page 50: Utilizzo Conforme

    ITALIANO Requisiti all’operatore Usare l‘apparecchio solo dopo aver letto con attenzione e capito le L’operatore è obbligato, prima di usare la macchina, istruzioni per l‘uso. Prendere in leggere attentamente il Manuale d’Uso.  conoscenza gli elementi di comando e l’uso corretto dell’apparecchio. Rispettare tutte le istruzioni di Il presente apparato non è...
  • Page 51: Norme Di Sicurezza

    ITALIANO Simboli Tenere le persone in piedi nei dintorni dell‘utensile a una distanza di sicurezza adeguata dalla macchina (almeno 5 m). Attenzione! Prima di qualsiasi intervento sull‘apparec- chio spegnere il motore Per ridurre il rischio di lesioni, l’utente deve leggere il manuale di istruzioni Utilizzare le protezioni per l’udito.
  • Page 52 ITALIANO È importante concentrarsi su ciò che si sta facendo e Prima di ogni messa in funzione controllare tutti i maneggiare con giudizio l’elettroutensile durante le raccordi a vite e ad inserimento, anche i dispositivi di operazioni di lavoro. Non utilizzare mai l’elettroutensile protezione, riguardando la rigidità...
  • Page 53: Manutenzione

    ITALIANO Garanzia chiusi; far la raffreddare all‘aperto. Mai depositare la macchina avente la benzina nel La garanzia include esclusivamente gli inconvenienti serbatoio all‘interno dell‘edificio dove i vapori di benzina dovuti dal difetto del materiale oppure dal difetto dalla possano eventualmente venire a contatto con fiamme produzione.
  • Page 54: Ricerca Dei Guasti

    ITALIANO Programma delle ispezioni e della manutenzione Il mancato rispetto del programma di manutenzione può causare danni al motore! Periodi di manutenzione pro- Prima Dopo 1 Dopo 3 Dopo 6 Dopo 12 Dopo 24 grammata di ogni mese mesi mesi mesi mesi messa in...
  • Page 55: Datos Técnicos

    ESPAÑOL Datos técnicos Cortadora de césped a gasolina BIG WHEELER 554.2 R N.º de artículo 95434 1.590 x 586 x 943 Dimensiones La x An x Al Power Engine S Motor Peso neto/bruto 33,7 / 37,4 kg 630 V Motor de 4...
  • Page 56: Comportamiento En Caso De Emergencia

    ESPAÑOL Comportamiento en caso de No utilice el dispositivo hasta que haya leído detenidamente y emergencia entendido el manual de instrucciones. Familiarícese con los elementos de manejo y el uso correcto del dispositivo. Respete todas las instrucciones ¡Riesgo de lesiones! de seguridad de este manual.
  • Page 57: Indicaciones De Seguridad

    ESPAÑOL Símbolos Mantenga a las personas cercanas a una distancia segura respecto a la máquina (como mínimo, 5 m). Atención! Apague el motor antes de realizar cualquier trabajo en el dispositivo. Para reducir el riesgo de lesiones, el usua- rio debe leer el manual de instrucciones. Usar protectores auditivos.
  • Page 58 ESPAÑOL Esté atento a lo que hace y emplee la herramienta eléc- Antes de cada puesta en marcha, compruebe la trica con prudencia. No utilice la herramienta eléctrica resistencia y el asiento correcto de todas las uniones si estuviese cansado, ni tampoco después de haber atornilladas y de los obturadores, así...
  • Page 59: Mantenimiento

    ESPAÑOL Nunca guarde la máquina con gasolina en el depósito Emplear únicamente accesorios y piezas de recambio dentro de un edificio en el que los vapores de gasolina originales. Dejar reemplazar aquellos componentes, puedan entrar en contacto con fuego abierto o chispas. cuyo recambio no fue descrito, únicamente por parte del fabricante.
  • Page 60: Plan De Inspección Y Mantenimiento

    ESPAÑOL Plan de inspección y mantenimiento ¡El incumplimiento del plan de mantenimiento puede provocar daños en el motor! Períodos de mantenimiento Antes Después Después Después Después Después regulares de cada de 1 mes de 3 meses de 6 meses de 12 de 24 arranque meses...
  • Page 61: Technische Gegevens

    NEDERLANDS Technische gegevens Benzine grasmaaier BIG WHEELER 554.2 R Artikel-Nr. 95434 1.590 x 586 x 943 Afmetingen l x b x h Power Engine S Motor Netto/bruto gewicht 33,7 / 37,4 kg 630 V Motortype Viertaktmotor Motorvermogen 3,5 / 4,8 (kW / PS)
  • Page 62: Voorgeschreven Gebruik Van Het Systeem

    NEDERLANDS Gebruik het apparaat pas nadat u de enig passend onderricht, door een vakman, resp. de be- gebruiksaanwijzing gelezen en dieningsaanwijzing, voldoende. Een speciale scholing begrepen hebt. Maakt u zich met de is niet noodzakelijk. bedieningselementen en het juiste gebruik van het apparaat vertrouwd. Let op alle, in de gebruiksaanwij- Handelswijze in noodgeval zing aangegeven, veiligheidsinstructies.
  • Page 63 NEDERLANDS Verpakkingsoriëntering boven Het oliepeil controleren, eventueel bijvullen. TÜV / GS keurmerk Benzine tanken. Druk 3x op de primerbalg als de motor Veiligheidsadviezen warm is. Druk 6x op de primerbalg als de motor Waarschuwing koud is. Lees alle veiligheidsinstructies en aanwijzingen. Als de waarschuwingen en voorschriften niet worden op- Mulchen MULCHEN...
  • Page 64 NEDERLANDS Start de motor enkel dan als uw voeten op een veilige Brandstof is licht ontvlambaar: afstand van de maaiwerktuigen zijn. Kantel bij het starten de machine niet. Bewaar brandstof slechts in daarvoor goedgekeurd jerrycans. Start de machine niet, als u voor de uitwerpopening staat.
  • Page 65 NEDERLANDS Onderhoud kunnen wij niet instaan voor een correcte werking. Enkel een regelmatig onderhouden en een goed verzorgd apparaat kan een tot tevredenheid werkend Vóór alle werkzaamheden aan het apparaat de hulpmiddel zijn. Onderhoudsen verzorgingsfouten motor uitschakelen en de bougiestekker uitne- kunnen tot onvoorziene ongevallen en letsels leiden.
  • Page 66 NEDERLANDS Inspectie- en onderhoudsschema Als het onderhoudsschema niet wordt nageleefd, kan er schade aan de motor ontstaan! Regelmatige onderhoudsperiode Vóór Na 1 Na 3 Na 6 Na 12 Na 24 iedere maand maanden maanden maanden maanden inbedrij- fneming Bedrijfs- Bedrijfs- Bedrijfs- Bedrijfs- Bedrijfs-...
  • Page 67: Technická Data

    ČEŠTINA Technická data Benzinová sekačka na trávu BIG WHEELER 554.2 R Obj. č. 95434 1.590 x 586 x Rozměry d x š x v Power Engine S Motor 630 V Hmotnost netto/brutto 33,7 / 37,4 kg Typ motoru 4-taktní motor Výkon motoru...
  • Page 68: Oblast Využití

    ČEŠTINA Chování v případě nouze Čerpadlo použijte teprve po pozorném přečtení a porozumění návodu k obsluze Seznamte se s Nebezpečí zranění! ovládacími prvky a správným použitím přístroje. Ruce a nohy nikdy nedávejte do blízkosti rotujících Dodržujte všechny v návodu uvedené bezpečnostní dílů.
  • Page 69 ČEŠTINA Speciální Bezpečnostní Upozornění Když je motor teplý, stiskněte palivovou pumpičku 3x. Varování Když je motor chladný, stiskněte palivovou Přečtěte si všechny bezpečnostní pokyny a instrukce. pumpičku 6x. Zanedbání při dodržování varovných upozornění a pokynů mohou mít za následek úder elektrickým Mulčování...
  • Page 70 ČEŠTINA Sekačku vypněte vždy, když ji přenášíte, nakláníte nebo Nebezpečí otravy! se pohybujete mimo travnaté plochy. Počkejte, až se všechny rotující díly zastaví. Spaliny, paliva a maziva jsou jedovaté. Vdechování spalin může být smrtelně nebezpečné! Pokud narazíte na cizí předmět nebo stroj začne vibro- vat, musíte ho vypnout a vytáhnout nástrčku zapalovací...
  • Page 71 ČEŠTINA Záruka Servis Záruka se vztahuje výhradně na nedostatky způsobené Máte technické otázky? Reklamaci? Potřebujete náhrad- vadou materiálu nebo výrobní vadou. Při reklamaci v ní díly nebo návod k obsluze? Na naší domovské stránce záruční době je třeba přiložit originální doklad o koupi s www.guede.com Vám v oddílu Servis pomůžeme datem prodeje.
  • Page 72: Vyhledávání Poruch

    ČEŠTINA Plán prohlídek a údržby V případě nedodržení harmonogramu údržby může dojít ke škodám na motoru! Pravidelné údržbové období Před Po 1 měsíci Po 3 Po 6 Po 12 Po 24 každým měsících měsících měsících měsících uvede- ním do Provozní provozu Provozní...
  • Page 73: Technické Údaje

    SLOVENSKÝ Technické údaje Benzínovej kosačky BIG WHEELER 554.2 R Obj. č. 95434 1.590 x 586 x 943 Rozmery D x Š x V Power Engine S Motor Hmotnosť netto/brutto 33,7 / 37,4 kg 630 V Typ motora 4-taktný motor Výkon motora...
  • Page 74: Použitie Podľa Predpisov

    SLOVENSKÝ Správanie v prípade núdze Čerpadlo použite až po pozornom prečítaní a porozumení návodu k obsluhe. Oboznámte sa s ovládacími Nebezpečenstvo zranenia! prvkami a správnym použitím prístroja. Dodržujte všetky Ruky a nohy nikdy nedávajte do blízkosti rotujúcich bezpečnostné pokyny uvedené v návode. Správajte sa dielov.
  • Page 75: Špeciálne Bezpečnostné Pokyny

    SLOVENSKÝ Špeciálne Bezpečnostné Pokyny 3x stlačte primer, keď je motor teplý. Varovanie 6x stlačte primer, keď je motor studený. Prečítajte si všetky bezpečnostné pokyny a inštruk- cie. Zanedbanie dodržiavania Výstražných upozornení a Mulčovanie MULCHEN pokynov uvedených v nasledujúcom texte môže mať za následok zásah elektrickým prúdom, spôsobiť...
  • Page 76 SLOVENSKÝ sebe. Nebezpečenstvo otravy! Kosačku vypnite vždy, keď ju prenášate, nakláňate alebo Výfukové plyny, pohonné hmoty a mazacie sa pohybujete mimo trávnatej plochy. Počkajte, až sa prostriedky sú jedovaté. Vdychovanie výfukových všetky rotujúce diely zastavia. plynov môže byť smrteľné! Ak narazíte na cudzí predmet alebo stroj začne vibrovať, Prístroj používajte iba vonku, nikdy nie v uzatvo- musíte ho vypnúť...
  • Page 77 SLOVENSKÝ Servis starostlivosť môže viesť k nepredvídaným nehodám a úrazom. Máte technické otázky? Reklamáciu? Potrebujete náh- Záruka radné diely alebo návod na obsluhu? Na našej domovs- kej stránke www.guede.com vám v oddiele Servis po- Záruka sa vzťahuje výhradne na nedostatky spôsobené môžeme rýchlo a nebyrokraticky.
  • Page 78: Vyhľadávanie Porúch

    SLOVENSKÝ Plán prehliadok a údržby Pri nedodržaní plánu údržby môže dôjsť k poškodeniam motora! Pravidelné údržbové obdobie Pred Po 1 Po 3 me- Po 6 me- Po 12 me- Po 24 me- každým mesiaci siacoch siacoch siacoch siacoch uvedením do pre- Prevádzko- vádzky Prevádzko-...
  • Page 79: Dane Techniczne

    POLSKI Dane techniczne Benzinmototos Kaszaloge BIG WHEELER 554.2 R Nr artykułu 95434 1.590 x 586 x 943 Wymiary dł. x szer. x wys. Power Engine S Motor Masa netto/brutto 33,7 / 37,4 kg 630 V Typ silnika Silnik 4-suwowy Moc silnika 3,5 / 4,8 (kW / PS) Pojemność...
  • Page 80: Warunki Użytkowania

    POLSKI Postępowanie w nagłym przypadku Używać urządzenia dopiero po dokładnym zapoznaniu się i zrozumie- niu instrukcji obsługi. Należy Ryzyko obrażeń! zaznajomić się z elementami obsługi i prawidłową Nigdy nie trzymać rąk ani stóp w pobliżu eksploatacją urządzenia. Należy przestrzegać wszystkich obracających się...
  • Page 81: Instrukcje Dotyczące Bezpieczeństwa

    POLSKI Orientacja paczki u góry Sprawdzić poziom oleju, w razie konieczności uzupełnić. Znak TÜV / GS Dolać paliwa. Instrukcje Dotyczące Bezpieczeństwa Włączyć pompkę paliwa 3x, gdy silnik jest Ostrzeżenie gorący. Włączyć pompkę paliwa 6x, gdy silnik jest Prosimy o dokładne zapoznanie się z instrukcją zimny.
  • Page 82 POLSKI Paliwo jest łatwopalne. Urządzenie nie może być używane, jeżeli jest uszkodzone lub uszkodzone jest któreś z Przechowywać paliwo tylko w dopuszczonych do zabezpieczeń. Wymienić części zużyte lub tego celu zbiornikach. uszkodzone. Uzupełniać paliwo w maszynie tylko na wolnym po- Silnik uruchamiać...
  • Page 83 POLSKI Konserwacja Gwarancja Gwarancja dotyczy wyłącznie wad materiałowych i błędów zaistniałych w procesie produkcji. W przypadku Przed przeprowadzeniem jakichkolwiek prac wytoczenia powództwa z powodu wady towaru należy przy urządzeniu należy wyłączyć silnik i wyjąć zgodnie z warunkami gwarancji przedstawić dowód końcówkę...
  • Page 84: Wykrywanie I Usuwanie Usterek

    POLSKI Plan inspekcji i konserwacji Nieprzestrzeganie harmonogramu konserwacji może prowadzić do uszkodzenia silnika! Regularne okresy konserwacji Przed Po 1 Po 3 Po 6 Po 12 Po 24 każdym miesiącu miesiącach miesiącach miesiącach miesiącach urucho- mieniem Godziny Godziny Godziny Godziny Godziny pracy pracy pracy...
  • Page 85: Műszaki Adatok

    MAGYAR Műszaki adatok Benzines fűnyíró BIG WHEELER 554.2 R Megrend.szám 95434 1.590 x 586 x 943 Méret (ho x szé x ma) Power Engine S Motor Tömeg nettó/bruttó 33,7 / 37,4 kg 630 V Motortípus 4 ütemű motor Motorteljesítmény 3,5 / 4,8 (kW / PS)
  • Page 86: Rendeltetésszerű Használat

    MAGYAR Viselkedés kényszerhelyzetben Csak azután használja a szivattyút, miután figyelmesen elolvasta és megértette a kezelési útmutatót. Sérülésveszély! Ismerkedjen meg az irányító elemekkel és a berendezés Kezeit és lábait ne tegye a gép forgó alkatrészei szabályszerű használatával! Tartsa be a biztonsági közelébe! Tartsa be a fűszóró...
  • Page 87 MAGYAR Szimbólumok A közelben álló személyeket tartsa bizton- ságos távolságban (legalább 5 m). Figyelem! A gépen végzendő munkák előtt kapcsolja ki a motort. A sérülésveszély csökkentése érdekében a felhasználónak el kell olvasnia a használati utasítást Viseljen hallásvédő eszközt. Tilos a dohányzás és nyilt láng használata Viseljen védőszemüveget.
  • Page 88 MAGYAR csinál és meggondoltan dolgozzon az elektromos ké- Minden üzembe helyezés előtt ellenőrizze a ziszerszámmal. Ha fáradt, ha kábítószerek vagy alkohol csavaros és a toló csatlakozókat, szintén a biztonsági hatása alatt áll, vagy orvosságokat vett be, ne használja berendezéseket tartanak-e, helyesen be vannak-e a berendezést.
  • Page 89 MAGYAR Soha ne raktározza el a készüléket úgy, hogy a Csak eredeti tartozékokat és eredeti pótalkatrészeket tartályában benzin van, olyan épületben, amelyben a alkalmazzon! Azokat az alkatrészeket, amelyek cseréje nincs benzingőzök esetlegesen nyílt lánggal vagy szikrákkal leírva, csak a gyártónál cseréltesse ki! érintkezhetnek.
  • Page 90 MAGYAR Gépszemle és karbantartási terv A karbantartási terv be nem tartása a motor károsodásához vezethet! Rendszeres karbantartási idő- Minden 1 havonta 3 Hóna- 6 Hóna- 12 Hóna- 24 Hóna- közök üzembe- ponként ponként ponként ponként helyezés előtt Munkaórák Munkaórák Munkaórák Munkaórák Munkaórák Motorolaj...
  • Page 91 Original – EG-Konformitätserklärung Fordítása azonossági nyilatkozat EU Hiermit erklären wir, dass die nachfolgend bezeichneten Ezzel kijelentjük mi, a hogy a lentiekben megjelölt gépipari Geräte aufgrund ihrer Konzipierung und Bauart sowie in den termék, koncepciója és tervezése, az általunk forgalomba von uns in Verkehr gebrachten Ausführungen den einschlägi- kerülő...
  • Page 92 Kaszaloge; Benzines fűnyíró норми | Primijenjeni harmonizirani standardi | Wykorzystane zharmonizowane normy | Kullanılan uyum normları | Normas armonizadas aplicadas 95434 BIG WHEELER 554.2 R EN ISO 5395-1:2013+A1 Einschlägige EG-Richtlinien Appropriate EU Directives | Directives CE applicables| EN ISO 5395-2:2013+A1+A2 Prohlášení...
  • Page 94 GÜDE GmbH & Co. KG Birkichstrasse 6 74549 Wolpertshausen Deutschland Tel.: +49-(0)7904/700-0 Fax.: +49-(0)7904/700-250 eMail: info@guede.com...
