The Legend Brands
ter vapor from the air. The PHD 200 is ideal for crawlspace drying, humidity control and other applications
requiring high-performance dehumidification. (Not intended for professional water damage restoration.)
R E A D A N D U N D E R S T A N D B E F O R E O P E R A T I N G
WARNING
SAFETY INSTRUCTIONS
WARNING! Do not alter or modify your unit in any
way. Use only replacement parts authorized by Leg-
end Brands, Inc. Modifications or use of unapproved
parts could create a hazard and will void your war-
ranty. Contact your authorized distributor for assis-
tance.

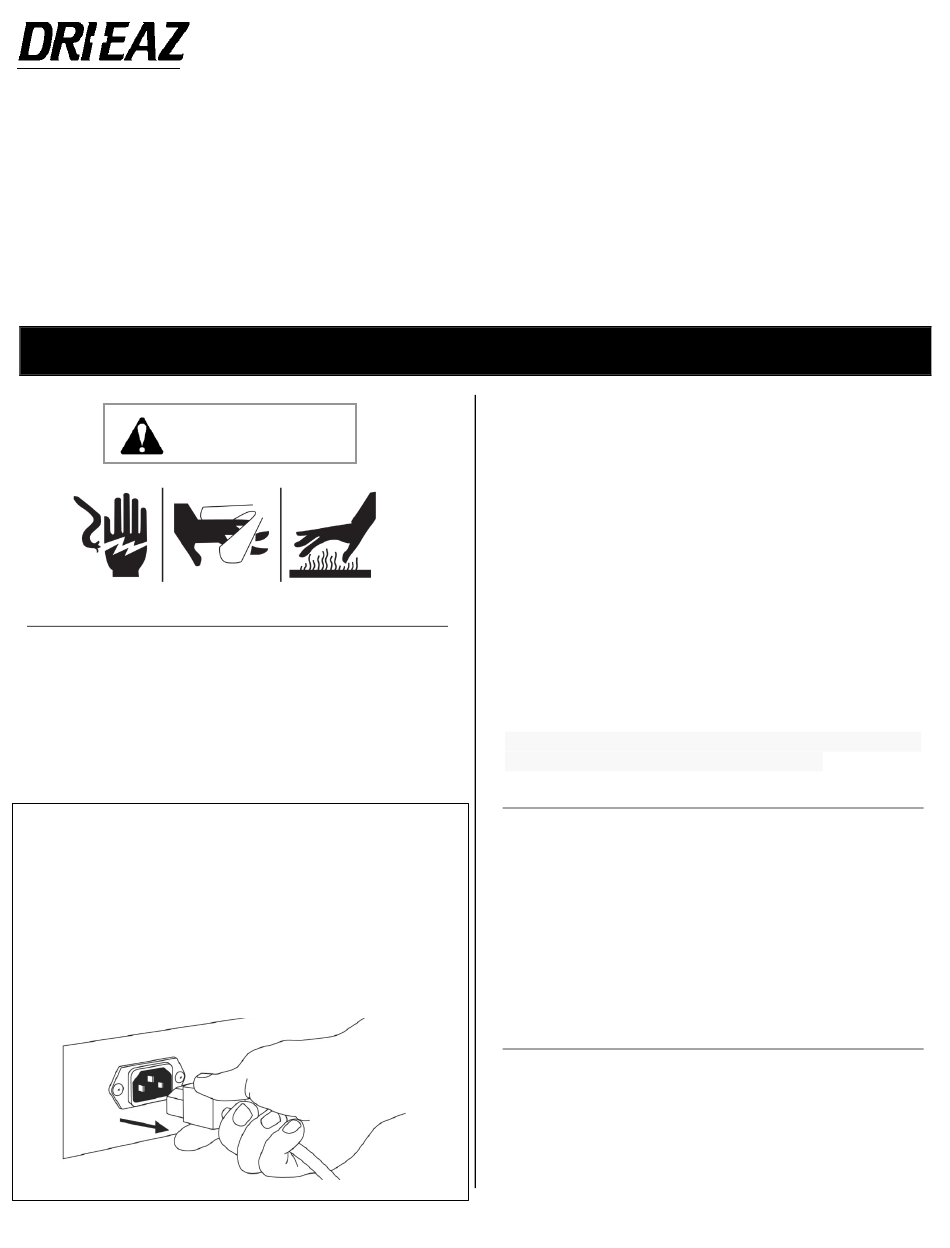

CORRECT PLUG REMOVAL
Grasp IEC plug and pull straight out
IMPORTANT: Damage to IEC receptacle or dehu-
midifier resulting from improper removal of the
power cord is not covered by warranty. The IEC
power cord is a wear item and is not covered by
warranty.
110482P (07-01913) #103806 (F515)
Owner's Manual
PHD 200 Dehumidifier
LEGEND BRANDS, INC.
15180 Josh Wilson Road, Burlington, WA 98233
Phone: 800-932-3030 Fax: 360-757-7950 CrawlspaceDry.com
®
PHD 200 Dehumidifier reduces humidity in enclosed environments by removing wa-
Patents: LBpatents.com
Model #103806 (F515)
WARNING! Electric shock hazard, rotating fan, hot
surface hazards. Unplug unit before opening cover
for cleaning or servicing. Unit must be grounded.
• Inspect the power cord before use. If cord is dam-
aged, do not use. Always grasp the plug (not the
cord) to unplug.
• Insert three-prong plug on power cord into a match-
ing electrically grounded outlet. Do not use adapter.
Never cut off third prong. Do not use an extension
cord.
• The unit must be operated on a 115V/60Hz circuit
protected by a Ground Fault Circuit Interrupter
(GFCI) device.
• Keep motor and wiring dry.
• Do not attempt to repair the unit. For Authorized
Service Centers, contact Legend Brands.
NOTICE: Do not use in environments where corrosive
chemicals are present, such as chlorine.
BEFORE YOU BEGIN
Warranty registration
Visit warranty.LegendBrandsRestoration.com to register
your purchase. Registration allows us to better assist
you with using, maintaining or servicing your equipment
and to contact you in case we have important safety in-
formation concerning your Legend Brands product. If
you determine service is required, have your equipment
model, serial number and original proof of purchase
available and call your distributor for assistance with ob-
taining a return material authorization (RMA).
INTRODUCTION

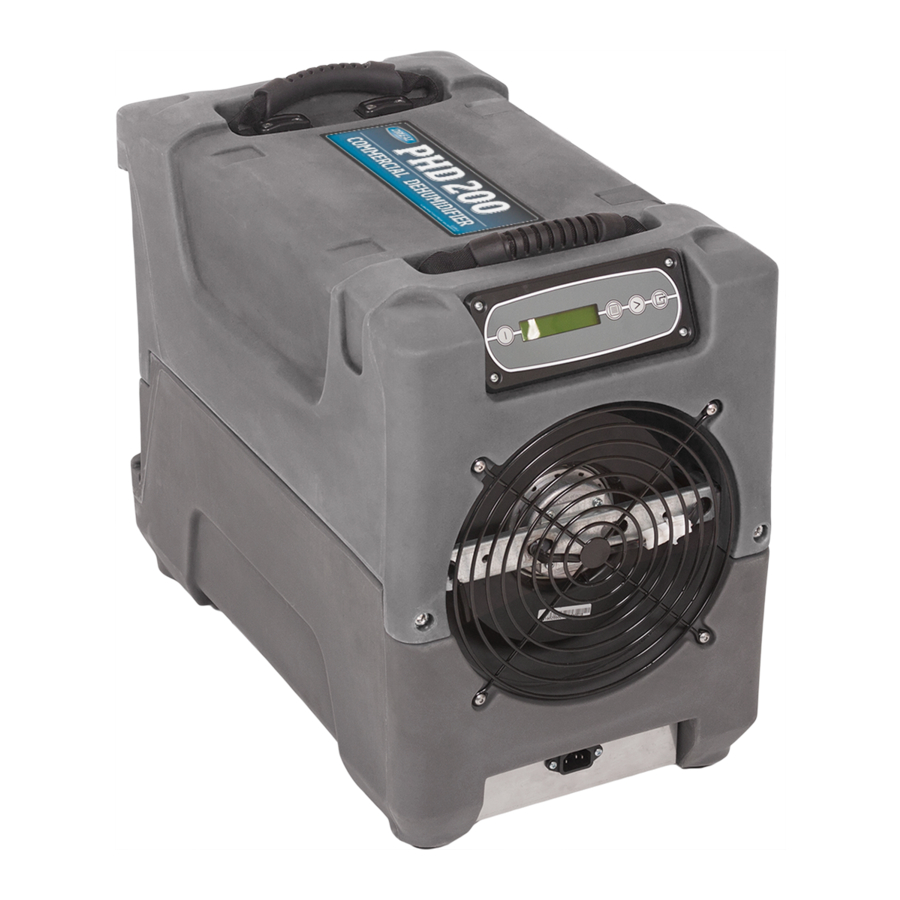

The PHD 200 Dehumidifier reduces humidity in enclosed
structural environments by removing water vapor from
the air. With proper use, the PHD 200 can help to dry out
damp structural materials, insulation, and contents, and
maintain a healthy level of humidity. Using the PHD 200
may also prevent secondary damage caused by high hu-
midity.
1
Legend Brands, Inc.
