Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!

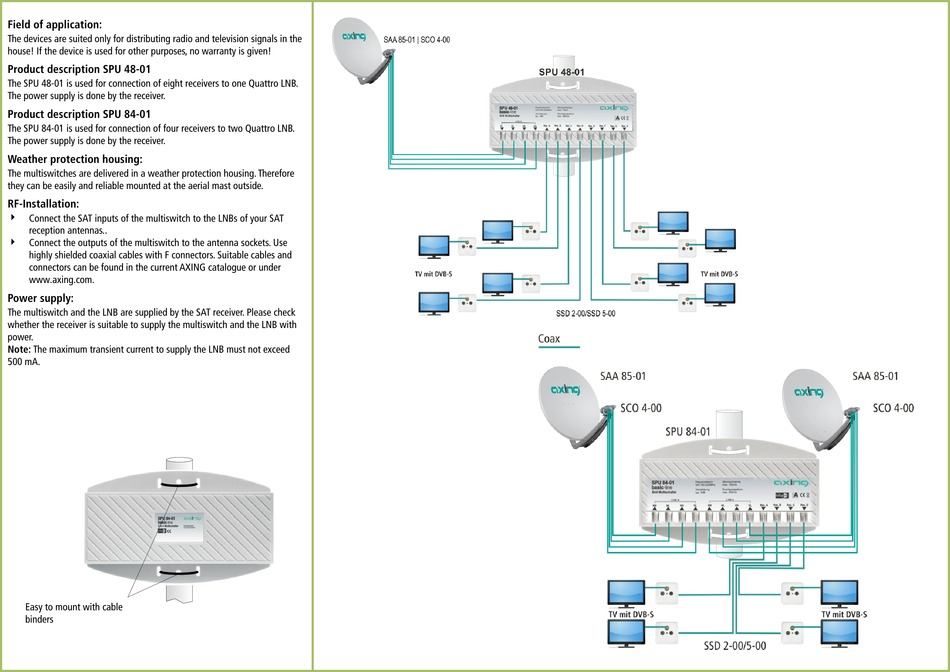

Product description SPU 48-01
The SPU 48-01 is used for connection of eight receivers to one Quattro LNB.
The power supply is done by the receiver.
Product description SPU 84-01
The SPU 84-01 is used for connection of four receivers to two Quattro LNB.
The power supply is done by the receiver.
Weather protection housing:
The multiswitches are delivered in a weather protection housing. Therefore
they can be easily and reliable mounted at the aerial mast outside.
RF-Installation:
4
Connect the SAT inputs of the multiswitch to the LNBs of your SAT
reception antennas..
4
Connect the outputs of the multiswitch to the antenna sockets. Use
highly shielded coaxial cables with F connectors. Suitable cables and
connectors can be found in the current AXING catalogue or under
www.axing.com.
Power supply:
The multiswitch and the LNB are supplied by the SAT receiver. Please check
whether the receiver is suitable to supply the multiswitch and the LNB with
power.
Note: The maximum transient current to supply the LNB must not exceed
500 mA.
Easy to mount with cable
binders
