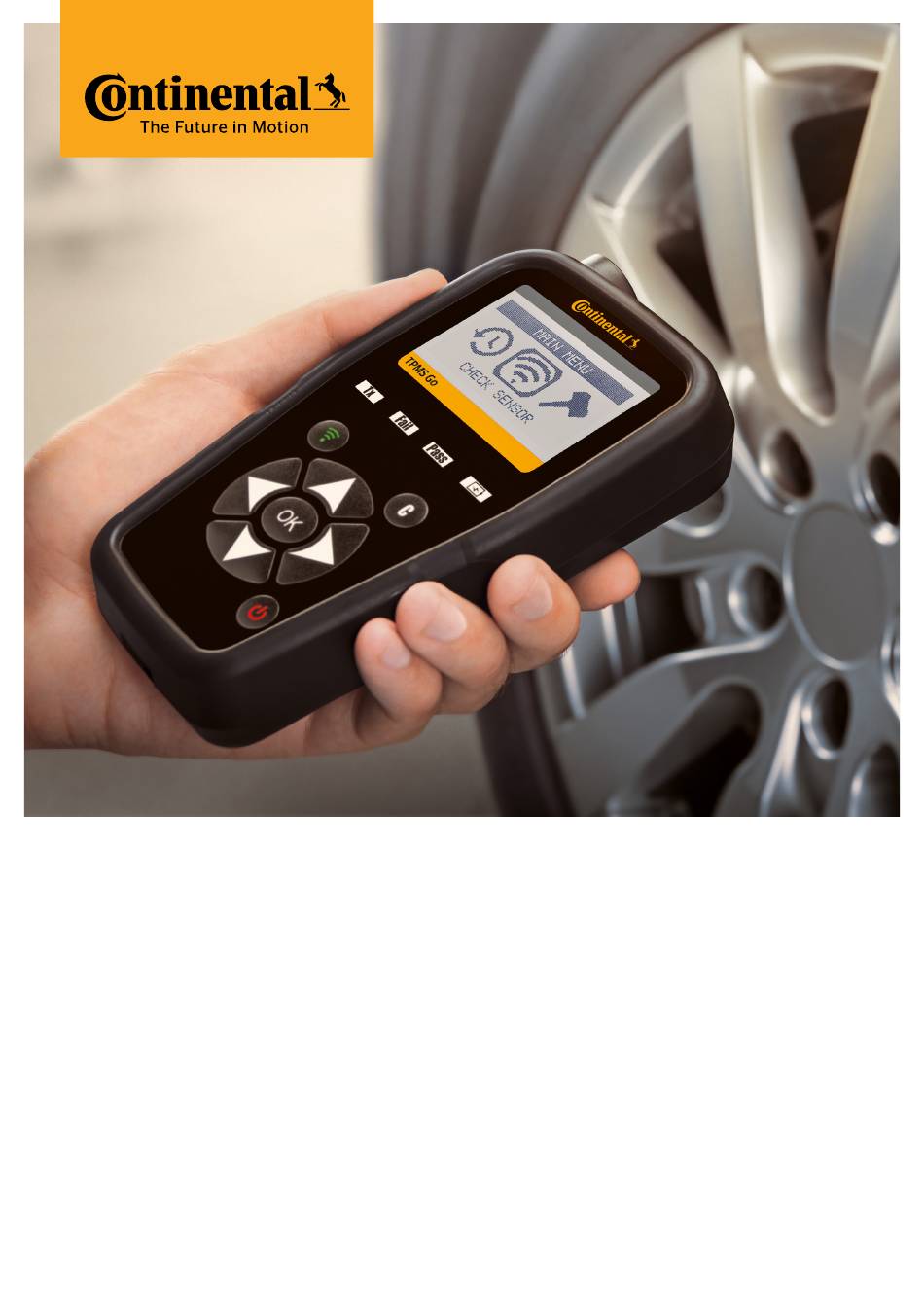

  • Page 1 TPMS Go User Manual www.continental-aftermarket.com/tpmsgo...

  • Page 2: Table Of Contents

    TPMS GO User Guide TABLE OF CONTENTS TPMS GO TOOL ..............................................2 1. SPECIFICATIONS ....................................................2 2. IMPORTANT SAFETY INSTRUCTIONS ........................................3 3. CAUTION ........................................................4 4. FUNCTION KEYS ....................................................5 5. POWER ON ......................................................6 6. OPERATING INSTRUCTIONS.............................................7 TPMS GO USE ..............................................8 1. CHECK SENSOR ....................................................8 2.

  • Page 3: Tpms Go Tool

    TPMS GO User Guide User Guide TPMS GO 1. SPECIFICATIONS Battery Type: Rechargeable Li-Po (Lithium-Polymer). Battery Life: Approximately 400 activations per full charge. Dimensions (Max. L,W,D): 16.5 cm x 9.5 cm x 3.8 cm (6.5" x 3.7" x 1.5") High Impact ABS.

  • Page 4: Important Safety Instructions

    TPMS GO User Guide 2. IMPORTANT SAFETY INSTRUCTIONS Do not discard. Retain for future reference. This device complies with: - CE standards - FCC rules - RCM standards - ROHS standards Operation is subject to the following two conditions: (1) This device will not cause harmful interference, and (2) This device will accept any interference received, including interference that may cause undesired or improper operation.

  • Page 5: Caution

    TPMS GO User Guide 3. CAUTION READ THESE INSTRUCTIONS BEFORE USE Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and reliable when properly used. All CONTINENTAL TPMS TOOLS are intended to be used only by qualified and trained automotive technicians or in a light industrial repair shop environment.

  • Page 6: Function Keys

    TPMS GO User Guide 4. FUNCTION KEYS Power ON /OFF switch Test or trigger sensor. Next, continue or confirm. Cancel, previous step. Navigate to select "up Navigate to down left right Antenna Battery charge indicator and low bat. light Result lights...

  • Page 7: Power On

    TPMS GO User Guide 5. POWER ON Press key to turn on the TPMS TOOL ➢ Displays the Continental Logo as Fig. 1. Fig. 1 ➢ The software version as Fig. 2. Fig. 2      ➢ At first start or after a factory reset, the work zone ...

  • Page 8: Operating Instructions

    TPMS GO User Guide 6. OPERATING INSTRUCTIONS 6.1. TPMS TOOL OVERVIEW Read and diagnose sensors. Service Procedure Read Sensor Test Before servicing tires/wheels, using your TPMS TOOL, trigger each of the vehicle's sensors to make sure they are working properly.

  • Page 9: Tpms Go Use

    TPMS GO User Guide TPMS GO USE IMPORTANT: Vehicle specific information in this manual is used as an example and may not represent specific instructions each make and model may require. When performing various functions with the tool, it is important to refer to the on-screen prompts and/or repair manual information.
  • Page 10 TPMS GO User Guide 1.3. S ELECT YEAR    1.4. S ELECT WHEEL NUMBER This option does not appear for all vehicles. The tool is ready to trigger the sensors. 1.5. T EST SENSOR Use keypad for tire selection.
  • Page 11 TPMS GO User Guide 1.6. T EST RESULTS 1: PASS 1: PASS: press to go to next tire. 2: FAIL 2/5: FAIL. 3: FAIL 4: FAIL 5: FAIL Page 10/31...

  • Page 12: Program A Blank Sensor

    TPMS GO User Guide 2. PROGRAM BLANK SENSOR This feature allows to recover a sensor ID in order to enter it in the spare blank sensor. If the "old" sensor can be read, use the "COPY ORIGINAL SENSOR" function to recover the ID. If it can't be read, use the "CREATE NEW SENSOR"...
  • Page 13 TPMS GO User Guide 2.1. S ELECT ANUFACTURER                   2.2. S ELECT VEHICLE MODEL 2.3. S ELECT YEAR    The list of compatible sensors depends on the vehicle selected 2.4.
  • Page 14 TPMS GO User Guide 2.5. S ELECT THE OPTION 2.6. "C " OPY ORIGINAL SENSOR   COPY ID : START Page 13/31...
  • Page 15 TPMS GO User Guide 2.6.1. Test results 1: PASS 1: PASS: See "Sensor reprogramming" section.   2: FAIL 2: FAIL: press to test again. NO SENSOR DETECTED : START 3: FAIL: reduce the tire pressure and 3: FAIL press to test again.
  • Page 16 TPMS GO User Guide 2.7. P ROGRAMMING SENSOR   F383834 25°C 2.50 bar BAT:OK 433 MHz : START Hold the new programmable sensor near the device antenna. 2.7.1. Results     PROGRAM SENSOR UPLOADING… 433 MHz : START...
  • Page 17 TPMS GO User Guide 2.8. "C " REATE NEW SENSOR Hold the new programmable sensor near the device antenna. 2.8.1. Results     UPLOADING… CREATE SENSOR 433 MHz : START : START Note: in this operation the ID is a random number.

  • Page 18: Part Lookup

    TPMS GO User Guide 3. PART LOOKUP This is a spare parts data base for all sensors available for each car. 3.1. S ELECT ANUFACTURER                ...
  • Page 19 TPMS GO User Guide 3.1. S ELECT YEAR    3.1. S ELECT PART NUMBER PART# LOOKUP > OE OE Sensor ref OE SERVICE KIT OE SERVICE VALVE Page 18/31...

  • Page 20: Settings

    TPMS GO User Guide SETTINGS 1. SETTINGS MENU                   Scroll up and down to select function or settings.      ...
  • Page 21 At first start or after a factory reset, the zone option appears on the screen. To apply a factory reset to the device, please use the WebTPM software. Connect the TPMS Go device to the PC, open WebTPM and then click on the "Factory reset" button in the header menu.
  • Page 22 TPMS GO User Guide 1.3. C HANGE ORMAT SETTINGS Complete listing.          Scroll up or down to select the desired change. Scroll up and down to select function or settings. Press to confirm the change and return to settings.
  • Page 23 TPMS GO User Guide 1.5. C HANGE ONTRAST SETTINGS Change from 0% (clear) to 100% (dark).                    Scroll up and down to select function or settings.

  • Page 24: About

    TPMS GO User Guide ABOUT 1. THE ABOUT MENU Displays the current software version and information about the device.          Page 23/31...

  • Page 25: Language

    TPMS GO User Guide LANGUAGE 1. LANGUAGE MENU     English / German / Spanish / Czech / French / Italian / Slovenian / Swedish / Scroll up and down to select language. Danish / Hungarian / Slovak / Dutch /...

  • Page 26: Recent Sensor Data

    TPMS GO User Guide RECENT SENSOR DATA 1. RECENT SENSOR DATA When a new vehicle is triggered the result is automatically stored in the RECENT SENSOR DATA menu. You may recall the result and continue to trigger the entire vehicle. The data is automatically replaced if a new vehicle is triggered.

  • Page 27: Miscellaneous

    TPMS GO User Guide MISCELLANEOUS 1. CHARGE Low Battery Indication Your TPMS TOOL incorporates a low battery detection circuit. Battery life is an average of 400 sensor tests per battery full charge (approximately 80-100 cars). A full charge takes about 6 hours.

  • Page 28: Troubleshooting

    TPMS GO User Guide 2. TROUBLESHOOTING If the TPMS TOOL is unable to trigger one or more of the sensors, please use the following troubleshooting guide: 1) The vehicle does not have a sensor even though a metal valve stem is present. Be aware of Schrader rubber style snap-in stems used on TPMS systems.

  • Page 29: Install Webtpm

    TPMS GO User Guide 3.1. I TPM PC S NSTALL UITE 1) Connect the TPMS tool to the USB port and power the tool ON. 2) Insert the USB key supplied with your tool into any available USB port or go to www.continental-aftermarket.com/webtpm...

  • Page 30: Warranty

    Warranty Periods This warranty does not cover problems or damage resulting from (1) accident, abuse, misapplication, or The warranty period for the TPMS Go device is two any unauthorized repair, modification or disassembly; years. (2) improper operation or maintenance, usage not in accordance with product instructions or connection to improper voltage supply;...

  • Page 31: Ce Statements

    Disconnect the charger and place the tool in an isolated area The manufacturer of the TPMS Go device declares for at least 15 minutes. DO NOT USE THE that this device complies with the requirements of: BATTERY AGAIN, but return the device to your seller.

  • Page 32: Fcc Statements

    For further information, please The manufacturer of the TPMS Go declares that this contact CONTINENTAL. device complies with the requirements of: - PART 15B 2005 - PART 15C 47 CFR FCC PART 15.209 8.
  • Page 33 Index About ....................23 Tire selection ................9 Tool update ................27 Auto off ..................22 Troubleshooting ..............27 Battery .................... 30 Units ....................20 Buzzer ..................... 21 Use ......................8 Use Instructions ..............4 Caution ..................4, 30 CE Conformity ..............31 Warning .....................
  • Page 34 Continental Aftermarket & Services GmbH Legal notice Sodener Straße 9 The information in this brochure contains only 65824 Schwalbach general technical descriptions and performance Germany characteristics, the applicability of which can T. +49 6196 87-0 depend on further factors in case of actual use. info@continental-aftermarket.com It is not meant or intended to be a specific www.continental-aftermarket.com...
