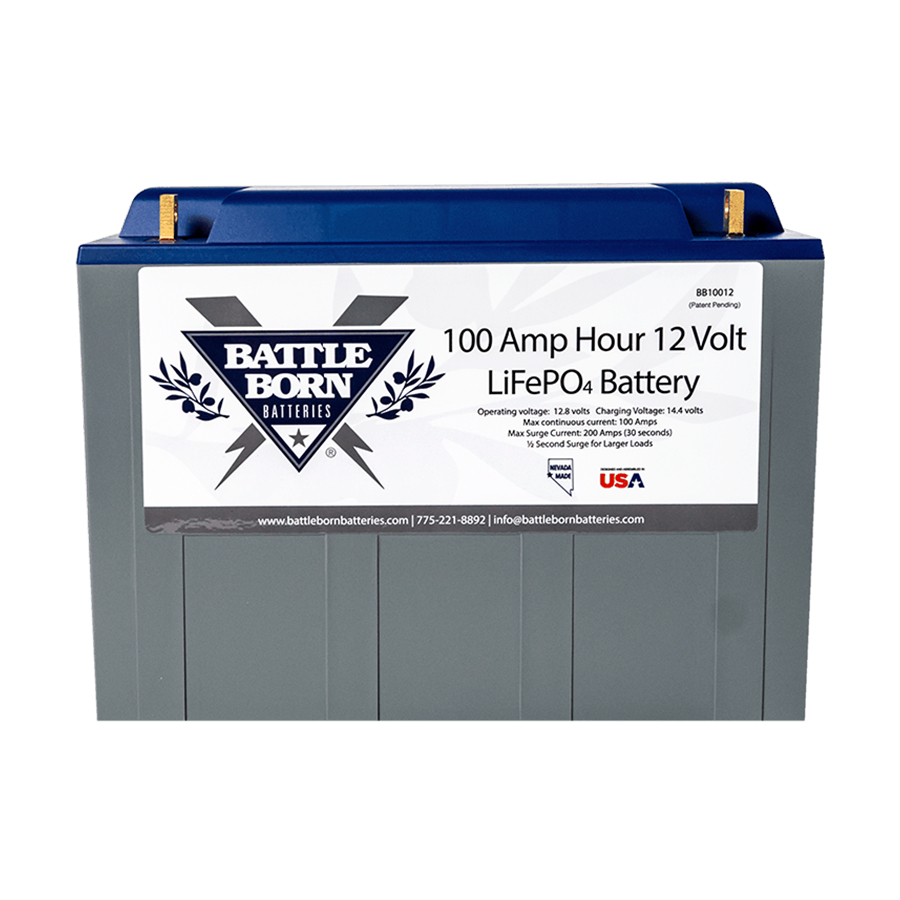

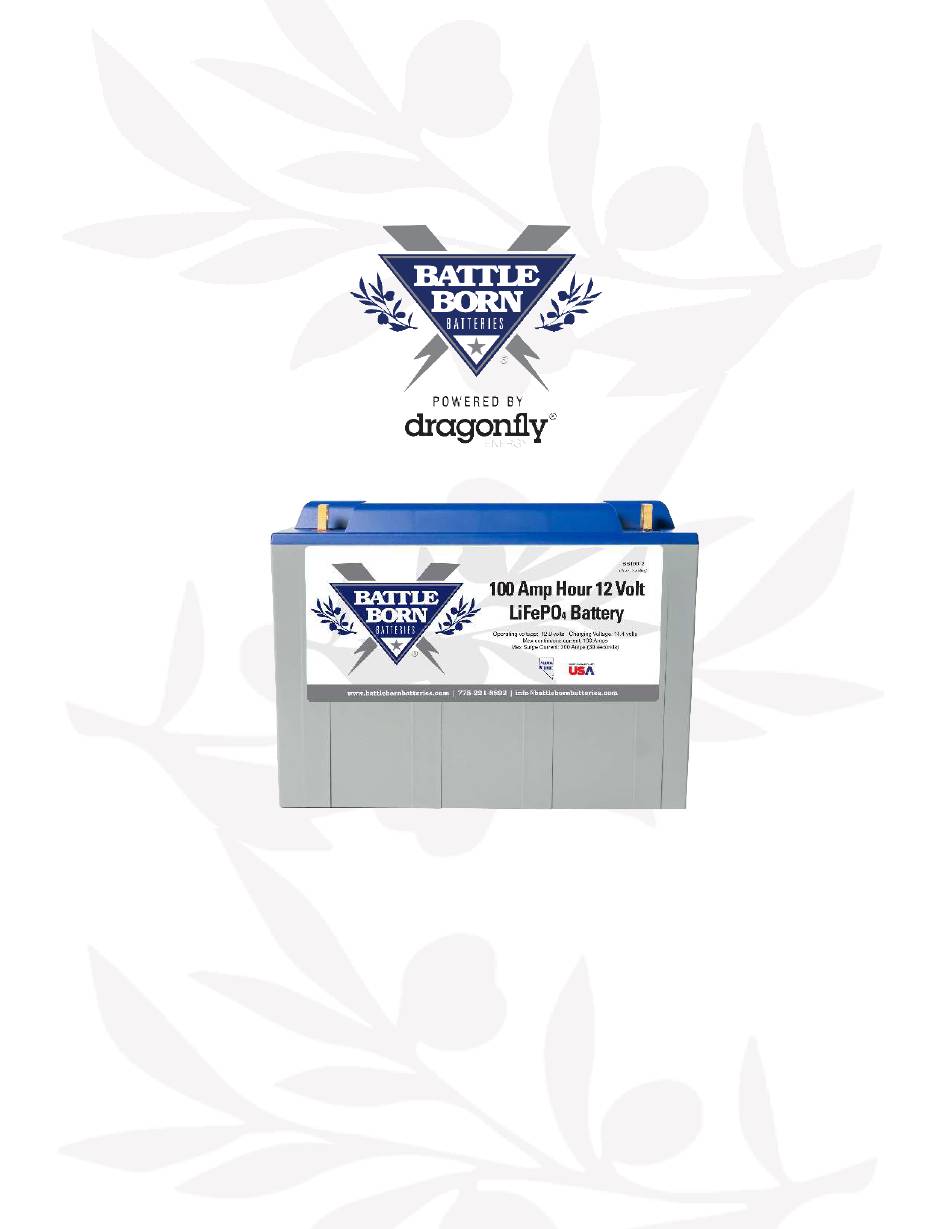

- Page 1 Dragonfly Energy Battle Born Batteries Model BB10012 | BB10012H 100Ah 12V Deep Cycle LiFePO4 Battery Manual and Installation Guide Dragonfly Energy, Corp. Phone: 855-292-2831 Email: info@battlebornbatteries.com...
- Page 2 Please read this manual prior to installation and use. Thank you for investing in a Battle Born Batteries System and welcome to the Battle Born Batteries family. This manual provides important information on how to install, operate, and care for your Battle Born Batteries. If you have purchased with us before, you will find this manual useful as a reference tool.
- Page 3 What is in the Box? Included with every purchase of a Battle Born Battery is: (1) BB10012/H Battle Born Battery • Dimensions (L x W x H): 12.76” x 6.86” x 8.95” Weight: 31 lbs. BB10012 Assembly Drawing Comes with standard flag style terminal posts with a 3/8” hole to accommodate either a 3/8”...
- Page 4 Figure 2: Proper and Improper Terminal Connections Connecting the Batteries in Parallel Why Connect in Parallel? Multiple BB10012/H batteries may be connected in parallel to increase the capacity and current of the system. When batteries are connected in parallel, the voltage of the system does not change, but the capacity and current limits are additive.
- Page 5 28.8V, and a float voltage of 27.2V. How to Make a Series Connection Note: Battle Born BB10012/H Batteries are capable of being connected in series up to 48V. DO NOT exceed a 48V setup or you will void the battery’s warranty 1.
- Page 6 How Does the BMS Protect the Batteries? All Battle Born Batteries come with a built-in battery management system (BMS) that protects the cells from many strenuous circumstances to protect the life cycles of the cells and your electrical system from potential damage. The BMS protects against the following conditions: High Voltage Disconnect (>...
- Page 7 Dragonfly Energy Corp. (“the Manufacturer”) warrants each Dragonfly Energy and Battle Born Batteries branded Li-ion battery (“the Product”) sold by Dragonfly Energy, Battle Born Batteries, or any of its authorized distributors or dealers, to be free of defects for a period of 10 years (“the Warranty Period”) from the date of sale as determined by either the customer’s sale receipt, the shipping...
- Page 8 Dragonfly Energy, Corp. Copyright © 2021, Dragonfly Energy, Crop., all rights reserved. Battle Born Batteries® is a registered trademark of Dragonfly Energy, Corp. All other trademarks, trade names, service marks, and logos referenced herein belong to their respective owners.
