- Page 1 MICRO COMPONENT SYSTEM RM-421 INSTRUCTION MANUAL HELPLINE NUMBER: 0870 100 2525...

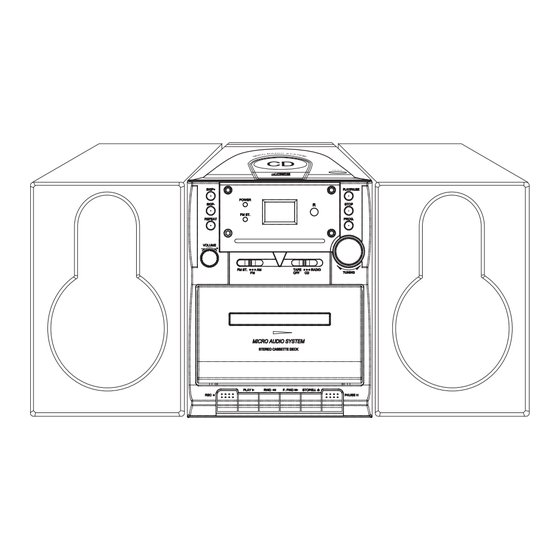

- Page 2 LOCATION OF CONTROLS 1.) VOLUME CONTROL 2.) REPEAT BUTTON 3.) SKIP DOWN BUTTON 4.) SKIP UP BUTTON 5.) POWER INDICATOR 6.) FM STEREO INDICATOR 7.) LED INDICATOR 8.) REMOTE SENSOR 9.) CD PLAY/PAUSE BUTTON 10.) CD STOP BUTTON 11.) PROGRAM BUTTON 12.) DIAL POINTER 13.) TUNING KNOB 14.) FM/AM MODE SELECTOR...
- Page 3 LISTENING TO RADIO OPERATION SET THE FUNCTION SELECTOR TO "RADIO" POSITION. SELECT THE DESIRED RADIO FREQUENCY BAND WITH BAND SELECTOR. TURN THE TUNING CONTROL TO SET THE DIAL POINTER AGAINST THE STATION FREQUENCY AS DESIRED. ADJUST VOLUME CONTROLS FOR THE DESIRED VOLUME LEVEL. FM &...
- Page 4 CD PROGRAMMING UP TO 20 TRACKS CAN BE PROGRAMMED FOR DISC PLAY IN ANY ORDER. TO PROGRAM SET IN CD MODE. PRESS THE PROGRAM BUTTON, THE DISPLAY WILL SHOW "01". AND FLASH, AND THEN IT CHANGE TO "00" TO WAIT THE KEY INPUT. SELECT A DESIRED TRACK BY USING THE SKIP BUTTONS.
- Page 5 B. RECORDING FROM CD • SET FUNCTION SELECTOR TO "CD" POSITION. • INSERT A CASSETTE SUITABLE FOR RECORDING, PRESS PAUSE KEY THEN PRESS RECORD KEY. RECORDING FUNCTION WILL BE ON STAND BY. • ACTIVATE THE CD PLAYER, AND THEN PRESS (TO RELEASE) PAUSE KEY TO START RECORDING. •...
- Page 6 SAFETY INSTRUCTIONS 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed. 3. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, Kitchen sink, laundrytub, swimming pool or in a wet basement.
- Page 7 SPECIFICATIONS GENERAL Power Supply: 220V-230V/50Hz Power Consumption: 13Watt Output Power(RMS): 1.8W x 2 Terminal impedence: Speaker 4ohms,Phones 32ohms Unit Dimensions: 223.5(L) x 150(W) x 206.5(H)mm Unit Weight: 5.4kgs CASSETTE SECTION Tape Speed: 4.75cm/sec Recording System: AC BIAS Erasing System: DC MAGNET Frequency Response: 125-6300Hz CD SECTION...
