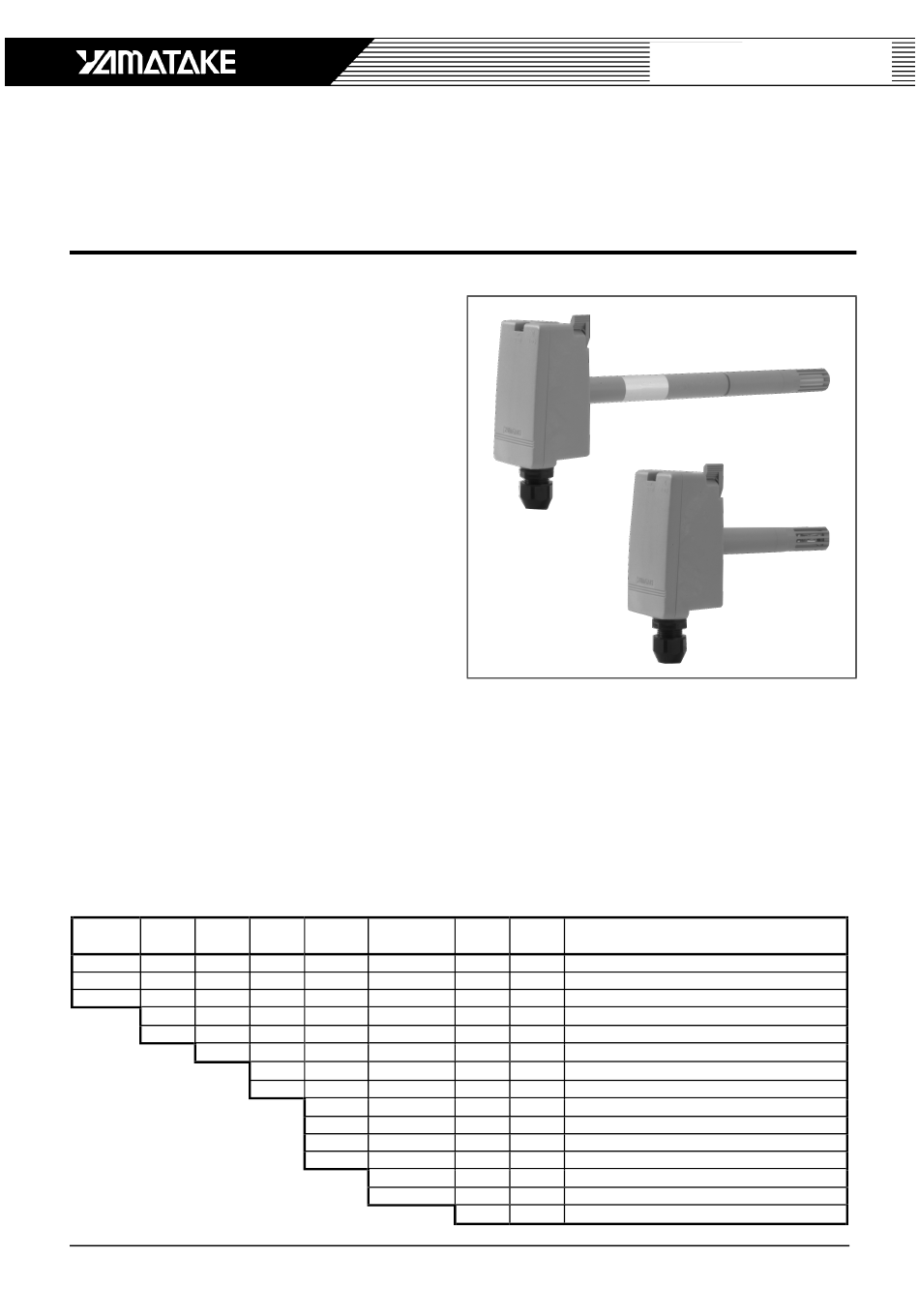

Insertion Temperature/Humidity Sensor
General
Insertion temperature/humidity sensor HTY78X3 series
uses a Pt100 platinum film temperature sensing element
and a polymer capacitive film humidity sensing element
(FP3 specially developed by Yamatake) which ensures
highly accurate and reliable temperature/humidity sens-
ing. It is designed to be installed in return air ducts of
commercial buildings, in return air chambers of air han-
dling units or in ventilated shield for meteorological in-
struments. TY78X3 series for sensing temperature only
and HY78X3 series for sensing humidity only are also
available.
Features
1) Wide sensing range
2) Excellent long term stability
3) Highly resistant to environment.
4) Quick response and high repeatability.
5) Easy to install in a duct (bracket prepared)
6) Splash-proof housing (IP54)
7) No need of maintenance for the head of TY series
(splash-proof without filter)
Models
Model No.
Shape
Type
HTY78
TY78
HY78
0
1
3
HTY78X3/ TY78X3/ HY78X3
Power
Humidity
Temperature
supply
output
output
T
Z
0
1
4
6
0
P
▲HTY7803
Fixed
Fixed
Insertion temperature/humidity sensor
Insertion temperature sensor
Insertion humidity sensor
Insertion length: Long
Insertion length: Short
―
24 V DC or 24 V AC
No power supply needed
W/o humidity sensor
Humidity output 1-5 V
Humidity output 4-20 mA
Humidity output 0-10 V
W/o temperature sensor
Temperature Pt 100
0
0
―
1
AB-5961
Specifications/Instructions
▲TY7813
Description
Advertisement
Table of Contents
Summary of Contents for Yamatake HTY78 3 Series
- Page 1 Pt100 platinum film temperature sensing element and a polymer capacitive film humidity sensing element (FP3 specially developed by Yamatake) which ensures highly accurate and reliable temperature/humidity sens- ing. It is designed to be installed in return air ducts of...
-
Page 2: Safety Instructions
If this product is used in clean rooms or places where reliability or control accuracy is particularly required, please contact Yamatake’s sales representatives. Yamatake Building Systems Co., Ltd. bears no responsibility for any benefit, or lack of benefit, derived from the operation by the customer. -
Page 3: Specifications
Specifications Item Specifications Measurement range Temp. -20 to 60 °C Humid. 0 to 100 % RH (-5 to 55 °C) Ouput signal Temp. 100 Ω / 0 °C Humid. 1-5 V DC (linear to 0 to 100 % RH) (output impedance: min. 10 kΩ) 0-10 V DC (linear to 0 to 100 % RH) (output impedance: min. -
Page 4: Dimensions (Mm)
Dimensions (mm) 247.6 51.3 45.6 67.3 (1) 7803 series 108.6 51.3 45.6 67.3 (2) 7813 series φ30 62.5 72.3 (3) Mounting bracket AB-5961... -
Page 5: Installation
Installation bracket groove. Fix it by turning the stopper 45 ° in the clockwise direction. Important 1) Select a location where the typical temperature and 45° humidity of the measured fluid can be sensed and (1) ... - Page 6 Wiring (common instructions for 7803 series 2)Connect the wires to the terminals and close the cover. and 7813 series) Tighten the seal connector. (only when cable connected) 1) Dismount the cover. (i) Cable connection Prepare the proper seal connector (order separately) in advance, if required.
-
Page 7: Wiring Instructions
Connect an isolator to the controller input circuit if a • loop will be formed at common and the sen- removal ratio is unknown. sor/transmitter may be damaged. If you use a Yamatake controller, no problem will • occur. Transformer (24 V AC power supply) shared •... -
Page 8: Troubleshooting
Filter ② ① Specifications are subject to change without notice. Building Systems Company International Business Headquarters Totate International Building 1-12-19, Shibuya Shibuya-Ku,Tokyo, 150-8316 URL:http//www.yamatake.com AB-5961 Rev.2.1 Jun. 2002 Printed in Japan. AB-5961 3H-H (W)
