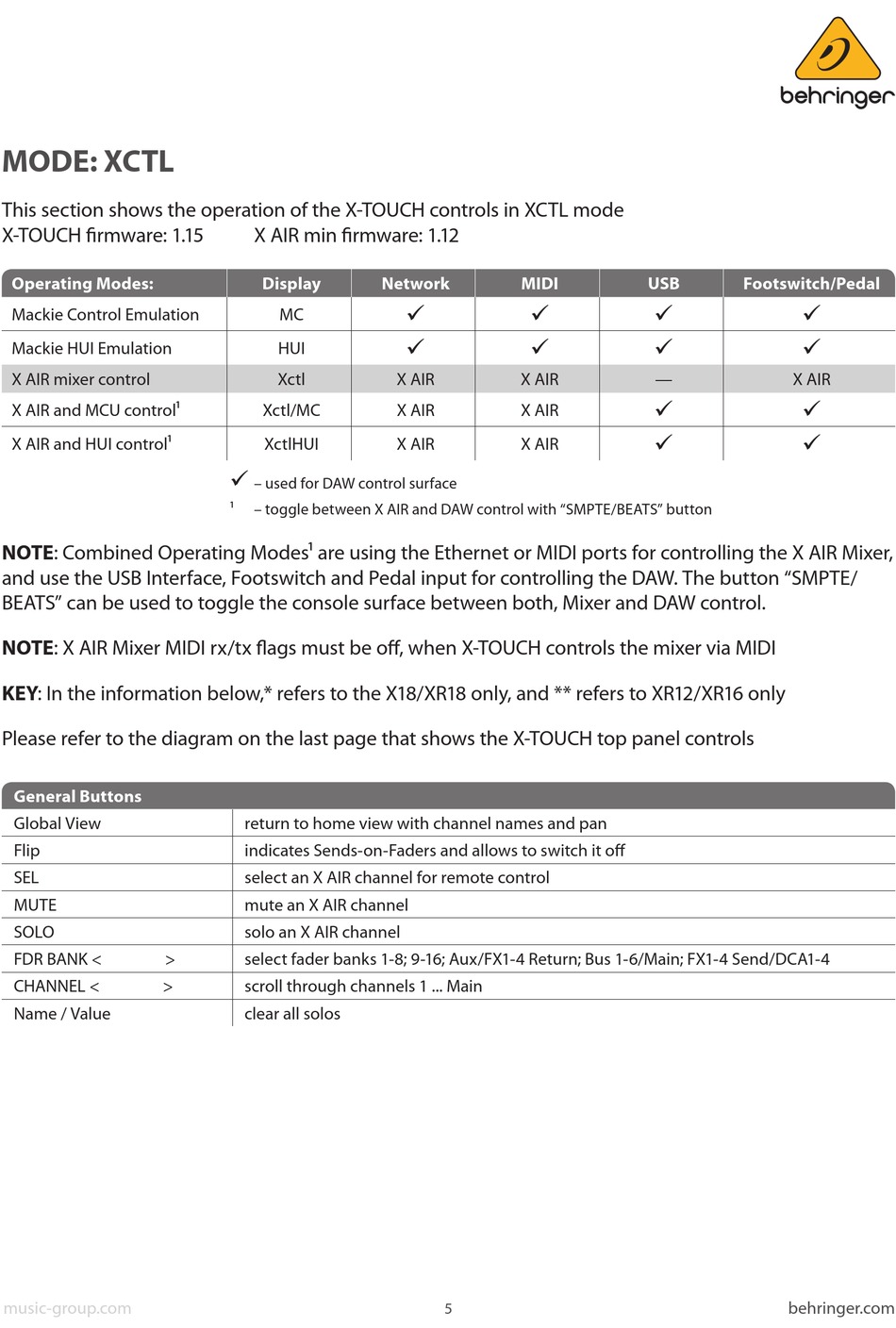

MODE: XCTL

This section shows the operation of the X-TOUCH controls in XCTL mode
X-TOUCH rmware: 1.15
Operating Modes:
Mackie Control Emulation
Mackie HUI Emulation
X AIR mixer control
X AIR and MCU control
X AIR and HUI control
NOTE: Combined Operating Modes are using the Ethernet or MIDI ports for controlling the X AIR Mixer,
and use the USB Interface, Footswitch and Pedal input for controlling the DAW. The button "SMPTE/
BEATS" can be used to toggle the console surface between both, Mixer and DAW control.
NOTE: X AIR Mixer MIDI rx/tx ags must be o , when X-TOUCH controls the mixer via MIDI
KEY: In the information below,* refers to the X18/XR18 only, and ** refers to XR12/XR16 only
Please refer to the diagram on the last page that shows the X-TOUCH top panel controls
General Buttons
Global View
Flip
SEL
MUTE
SOLO
FDR BANK < >
CHANNEL < >
Name / Value
music-group.com
X AIR min rmware: 1.12
Display Network
MC
HUI
Xctl X AIR
Xctl/MC X AIR
XctlHUI X AIR
– used for DAW control surface
– toggle between X AIR and DAW control with "SMPTE/BEATS" button
return to home view with channel names and pan
indicates Sends-on-Faders and allows to switch it o
select an X AIR channel for remote control
mute an X AIR channel
solo an X AIR channel
select fader banks 1-8; 9-16; Aux/FX1-4 Return; Bus 1-6/Main; FX1-4 Send/DCA1-4
scroll through channels 1 ... Main
clear all solos
MIDI
X AIR
X AIR
X AIR
5
USB Footswitch/Pedal
— X AIR
