Barthelme CHROMOFLEX I350 Manual

Barthelme CHROMOFLEX I350 Manual

Full-spectrum-colour-control

Advertisement

Quick Links

Chromoflex - Manual - English V1.07
- www.barthelme.de
Rev. 02.07.2006
Full-Spectrum-Colour-Control

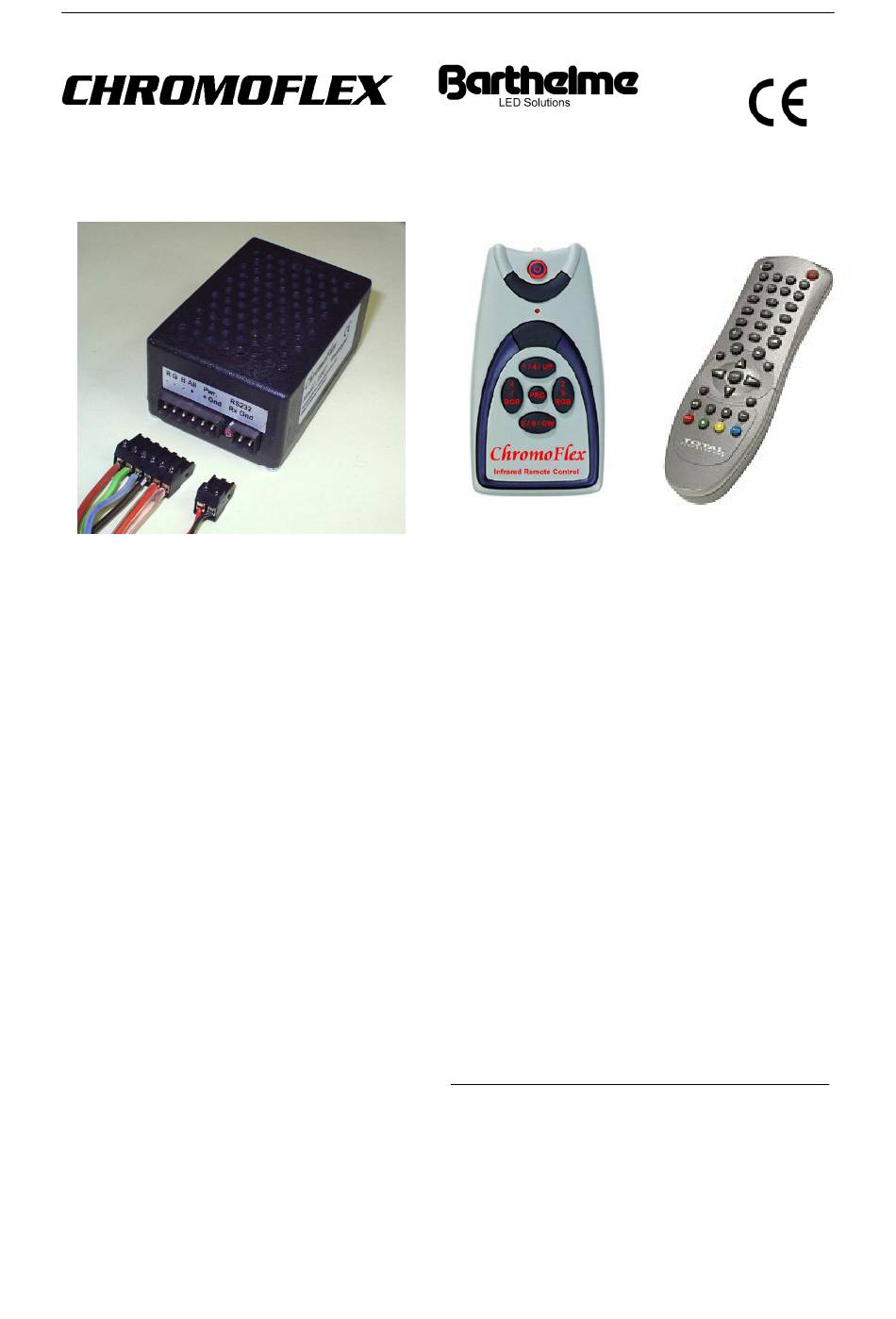

Chromoflex-Module V1.0 (Model „I350")
Infrared-Remote Control(s) (optionally)
Overview
Chromoflex is an excellent value full colour control and was designed for use with modern High-Power
RGB LEDs. There are two models available „I350" for use with constant current LEDs and „STRIPE"
for use with LED stripes. Chromoflex is able to synthesise up to 16 millions of different colours with 3
(optionally 4) channels. Hence it is the ideal control for all kind of sophisticated effect illuminations,
deco and wellness lighting.
Chromoflex comes with several built in effects (from calming colour change, up to show effects).
External manual buttons, DIP switches or a PC software can be used to control the modules. Up to 30
modules can be connected as a network.
The complete network can be controlled by standard push-buttons or (very convenient) with a infrared
remote control
Usage
The modules were designed for in-house use in dry places, but the LEDs (if suited) might also be used
in wet environments or outdoor.
Important: The modules must be operated with a power supply, that is matched to the used LEDs!
Other loads than LEDs (especially inductive loads like motors, coils, ..) might destroy the module.
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHROMOFLEX I350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Barthelme CHROMOFLEX I350

  • Page 1 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Full-Spectrum-Colour-Control Chromoflex-Module V1.0 (Model „I350“) Infrared-Remote Control(s) (optionally) Overview Chromoflex is an excellent value full colour control and was designed for use with modern High-Power RGB LEDs. There are two models available „I350“ for use with constant current LEDs and „STRIPE“...
  • Page 2: Safety Instructions

    Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Safety Instructions The modules might produce some heat. Care must be taken for unrestricted air ventilation. Connecting the power in reverse polarity (even for a short time) can destroy the module. A fuse is built in, but it can only be changed by soldering.
  • Page 3 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Connecting the LEDs / Power Supply Important: The module must be operated with a power supply, that is matched to the used LEDs! Important: Matched LED lamps, including power supplies are available from us. Also we supply complete kits, including plug-n-play connectors.
  • Page 4 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 LED1 LED3 ChromoFlex-Module "I350" LED2 Common + Power Supply + Power Supply - (GND) Common + RS232-RX RS232-GND Power Supply 110/230V Inp., ca. 10-12V/1.2A ~ 10-12V/1.5A Outp. 110/230V~ to PC The example above uses 3 LEDs.
  • Page 5: First Test

    Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 In the picture a low cost 5 Watts power resistor, mounted on an aluminium plate was used. Its value can be calculated with the formula: R = U / 0,35...
  • Page 6 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 As first test the module will perform a standard colour change (this is the factory default). This effect consists of 8 colours, each hold for 5 seconds, colour transition time is 2.5 seconds.
  • Page 7 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 to LEDs/Stripes LEDs Pwr+ optionally Buttons to Power Supply Buttons Pwr- (GND) RS232-RX RS232-GND to LEDs/Stripes LEDs Pwr+ to Power Supply Buttons optionally Buttons Pwr- (GND) RS232-RX RS232-GND to LEDs/Stripes...
  • Page 8 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Button 1: 1. pressed: effect 1 (normal colour change) 2. pressed: effect 5: „LSD“ Button 2: 1. pressed: effect 2 (Soft colour change) 2. pressed: effect 6: Fire „Fire“ Button 3: 1.
  • Page 9 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Group 3 Magenta Group 4 Orange Group 5 Light Blue Group 6 Yellow Group 7 Remark: The colour „indigo“ with index 5 is not available by design. Important: All changes of the DIP switches are recognised only after reset or power on! Colour Tables - „Cold- and Warm Colours“...
  • Page 10 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Important: If polarity of the infrared receiver is reversed, receiver and Chromoflex module can be damaged! Infrared-Remote-Control - Operating In general most universal remote control can be used, whereas only 6 keys are used. The small „Zapper“...
  • Page 11 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Group „Under-Water“: Start with „Blue“ as first colour. Group „Walls“ Start with „Green“ Group „Ceiling“ Start with „Red“. The colours should change slowly and each colour should be hold for 2 minutes. All modules should transit to the next colour simultaneously.
  • Page 12 Pulsed constant voltage, maximum current 2.5 Ampere per channel (3 channels) at 12 Volts, and 1.25 Ampere per channel at 24 Volts. Contact / Internet Download of PC-Software, data sheets , technical support: www.chromoflex.com , www.barthelme.de Contact (technical support only by Internet / Email): www.barthelme.de - 12 -...
  • Page 13 Chromoflex - Manual - English V1.07 - www.barthelme.de Rev. 02.07.2006 Attachment - Module Pinout: - 13 -...
