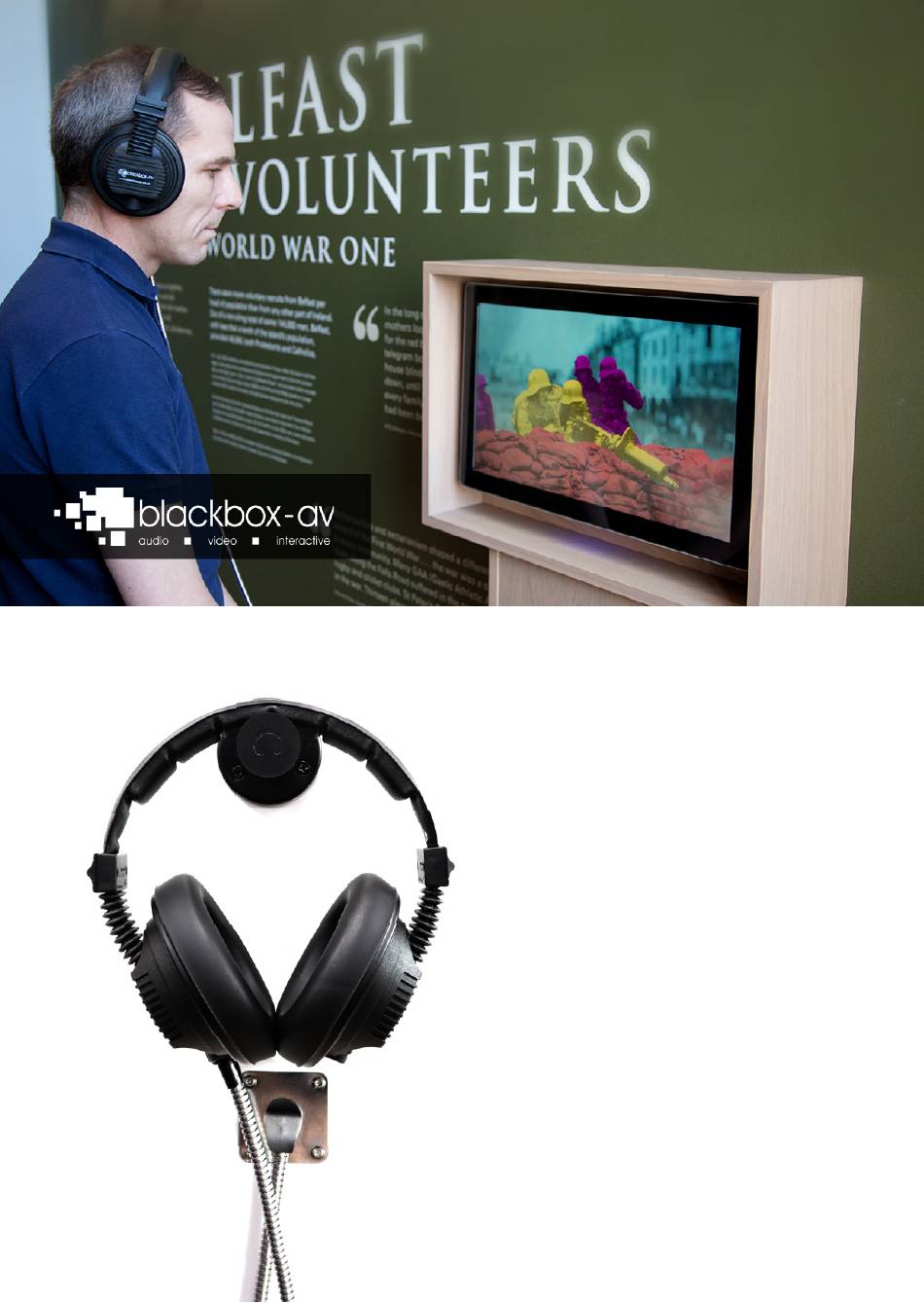

- Page 1 MKII Headphones Manual...
-
Page 2: Safety Guide
Damage caused by other users. defective audio equipment will void the warranty. Warranty Blackbox-av provides a 12 month warranty with this product. For further information or advice please contact info@blackboxav.co.uk www.interpretationshop.co.uk... - Page 3 (supplied with AutoPlay version) Multi-Purpose Screws Manual MKII Headphones Our MKII Headphones are reliable, vandal resistant and suitable for any application within the public domain, thanks to the audio cable being protected inside a larger steel armoured conduit. AutoPlay Functionality...
- Page 4 Replacement Parts duty strain relief, offering further protection. The design of the MKII Headphones is so ro- bust they are likely to last for many years. Over Fantastic Sound Quality this time there tends to be wear on the perish-...
- Page 5 Identifying AutoPlay vs Standard You will be able to identify whether your headphones have AutoPlay functionality through the existence of a dimple shown in the diagram below. It’s located on the left side of the headphones next to the audio cable. With Dimple Without Dimple www.interpretationshop.co.uk...
- Page 6 AutoPlay Version AutoPlay Functionality When used with a compatible device, the AutoPlay version allows the triggering of playback unit upon pickup. When the headphones are lifted, a sensor triggers your content. When returned to the hanger, the content will stop. Connecting to a SoundClip AutoPlay functionality is supported by our SoundClip range of audio players.
- Page 7 Connecting a VideoClip Although designed primarily to be utilised If you purchased a VideoClip set-up for alongside our range of media players, the MKII AutoPlay functionality, you will have recieved an Headphones can be connected to a I/O adapter with your headphones.
-
Page 8: Installation
Installation The Hanger The Hanger needs to be mounted flush to a surface to allow the headphones to sit securely - the headphone icon displayed on the hanger should be installed the right way up. The Knuckle & Mounting Plate The knuckle plate should be mounted to a structure with a suitable hole for the knuckle nut to fit through (see technical drawings). -
Page 9: Technical Information
Technical Information Unit Weight 562g 572g Packaged Weight 285 x 145 x 195mm Package Dimensions 180 x 100 x 195mm Unit Dimensions 100Ω x 2 Nominal Impedance Frequency Range 16 - 21.000 Hz Sound Pressure Level 96dB (1mW / 1kHz) Input Power (W) Rated: 30Mw - Max: 50mW Input Power (V) -
Page 10: Technical Drawings
Technical Drawings Note: 12mm is maximum depth of panel. Swivel Knuckle Knuckle Mounting Plate 37.24 4.20 www.interpretationshop.co.uk... -
Page 11: Related Products
3W Amp. Connect to any device with the 3.5mm jack. Replacement Parts The design of the MKII Headphones is so robust they are likely to last for many years. Over this time there tends to be wear on the...
