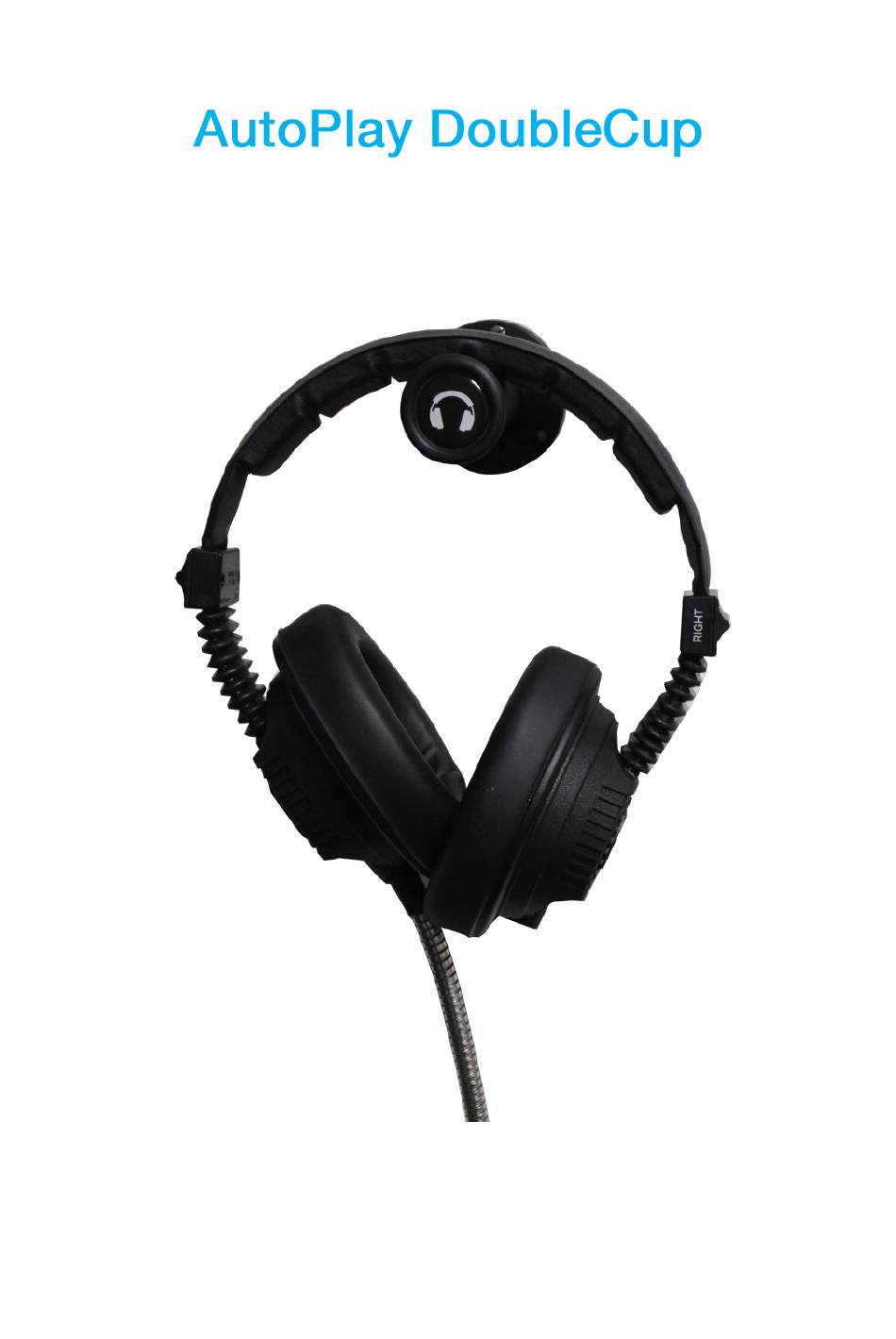

- Page 1 Manual v2.2 Jan 2019...
- Page 2 AP-DC v2 Jan 2017...
- Page 3 AP-DC v2 Jan 2017 Contents 1. What is the AP-DC? ................ 4 2. Identifying your Headphone ............5 2. Connecting to SoundClip and Videoclip ......... 6 3. Connecting to your own device ............. 8 4. Installation ..................9...

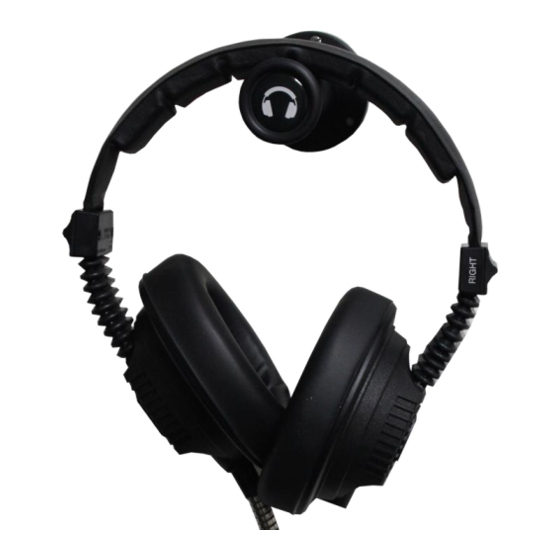

- Page 4 AP-DC v2 Jan 2017 Thank you for purchasing the AutoPlay Double Cup headphones The AP-DC is one of a range of products we offer specific to the heritage marketplace. We are confident that we have other products you will find useful and look forward to hearing from you again soon.
- Page 5 AP-DC v2 Jan 2017 You will be able to identify whether your headphone has AutoPlay functionality through the existence of the dimple shown in the image below. Without Dimple With Dimple...
- Page 6 AP-DC v2 Jan 2017 Connecting the AP-DC to our range of SoundClip audio players couldn’t be easier. The Hanger is responsible for activating content and must be connected to the SoundClip like so; Simply plug the activation wires (black/yellow wires attached to the green terminal block) into button 1.
- Page 7 AP-DC v2 Jan 2017 Connecting to the Videoclip player we need to use the I/O adapter and connect the wires as follows: Yellow trigger and ground to one connector, then the blue is connected to the other with the red wire. The videoclip only provides 5v power so we use the Blue wire...
- Page 8 AP-DC v2 Jan 2017 For use with your own device the hanger is supplied with 5 bare- end cables; Although designed primarily to be utilised alongside our own range of media players, the AP-DC can be connected to a device of your own (we recommend you check compatibility with us) - to do so you must be aware of the following cable connections;...
- Page 9 AP-DC v2 Jan 2017 The hanger needs to be mounted flush to a surface to allow the headphones to sit securely - the headphone icon displayed on the hanger should be installed right way up. All headphones are supplied with a 90°...
- Page 10 AP-DC v2 Jan 2017 For additional help please contact us: www.blackboxav.co.uk/support Tel: +44 (0)1639 874 100 Email: sales@blackboxav.co.uk...
