- Page 1 AutoPlay SingleCup Manual v2 Oct 2016...
- Page 2 AP-SC v1.2 Oct 2016 Contents 1. What is the AP-SC? ................ 4 2. Connecting to SoundClip ............... 4 3. Connecting to your own device ............. 5 4. 3.5mm Jack ..................6 5. Installation ..................6 5.1 Optional Teardrop ..............7...

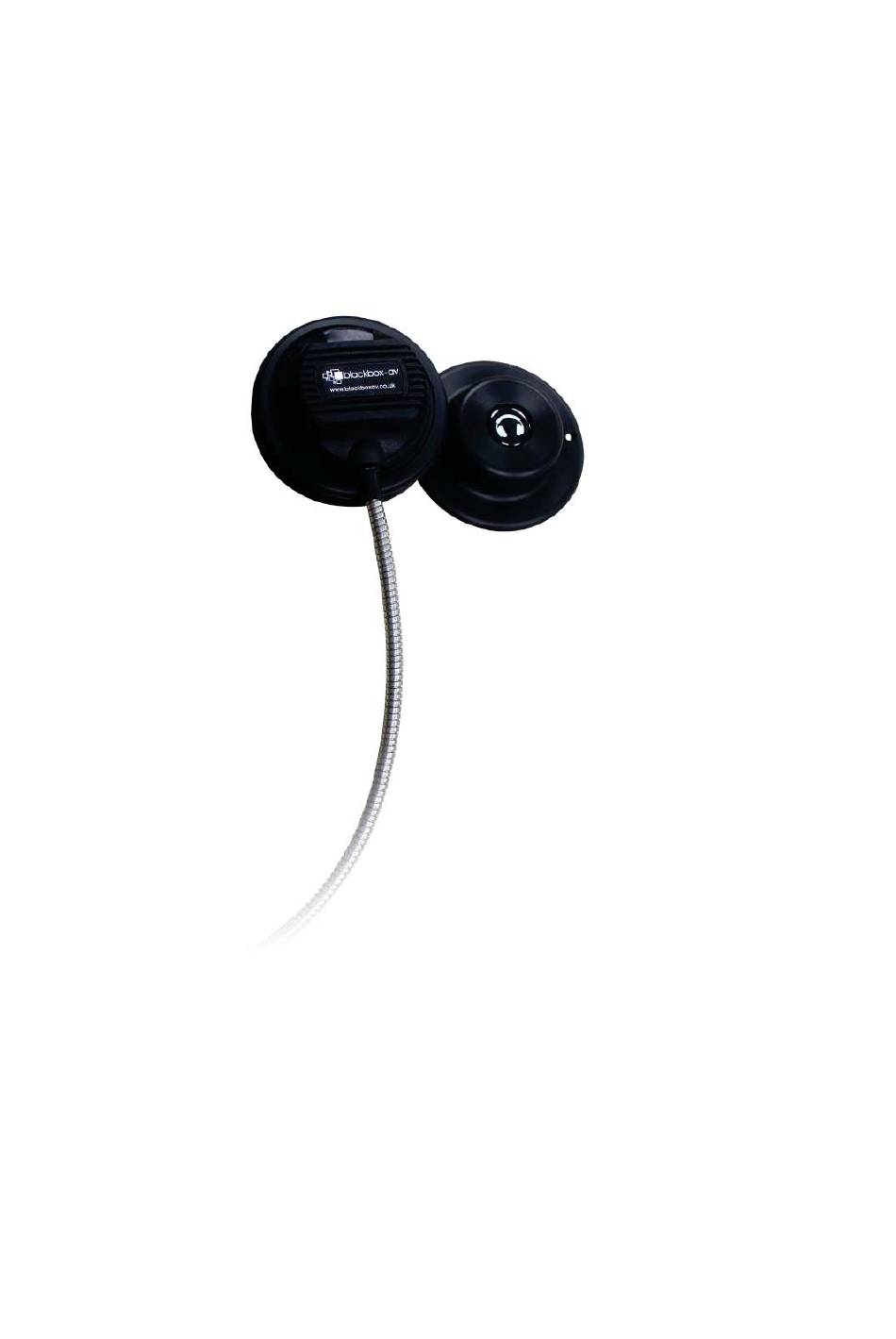

- Page 3 T: +44 (0)1639 767007 | W: www.blackboxav.co.uk 1. What is the AP-SC? The AutoPlay Singlecup headphone is an easily installed headphone system which allows content to be played upon ‘pickup’ of the handset. The Headphone is magnetically attached to the wall mounted handle when not in use.
- Page 4 AP-SC v1.2 Oct 2016 Plug the audio jack into the Headphone socket Set the configuration dipswitch to 5 in the ‘on’ position like so; See individual SoundClip user manual for information on programming content to be activated. Essentially the handset will now play content programmed to activate upon trigger of Button 1.
- Page 5 AP-SC v1.2 Oct 2016 4. 3.5mm Jack The 3.5mm jack outputs mono audio from the right hand channel. Audio is only output from the tip. 5. Installation The magnetic hanger needs to be mounted flush to a surface to allow the headphones to sit securely - the headphone icon displayed on the hanger should be installed right way up.
- Page 6 AP-SC v1.2 Oct 2016 A cutout for the knuckle will need to be made to the following measurements (in mm). This secures the otherwise weak point should the cable simply be fed through the panel. 5.1 Optional Teardrop The AP-SC can be supplied with a Teardrop mounting plate which combines both the Knuckle and Magnetic Hanger into a compact...
- Page 7 AP-SC v1.2 Oct 2016 Not to scale...
- Page 8 AP-SC v1.2 Oct 2016 For additional help please contact us: www.blackboxav.co.uk/support Tel: +44 (0)1639 874 100 Email: sales@blackboxav.co.uk...
