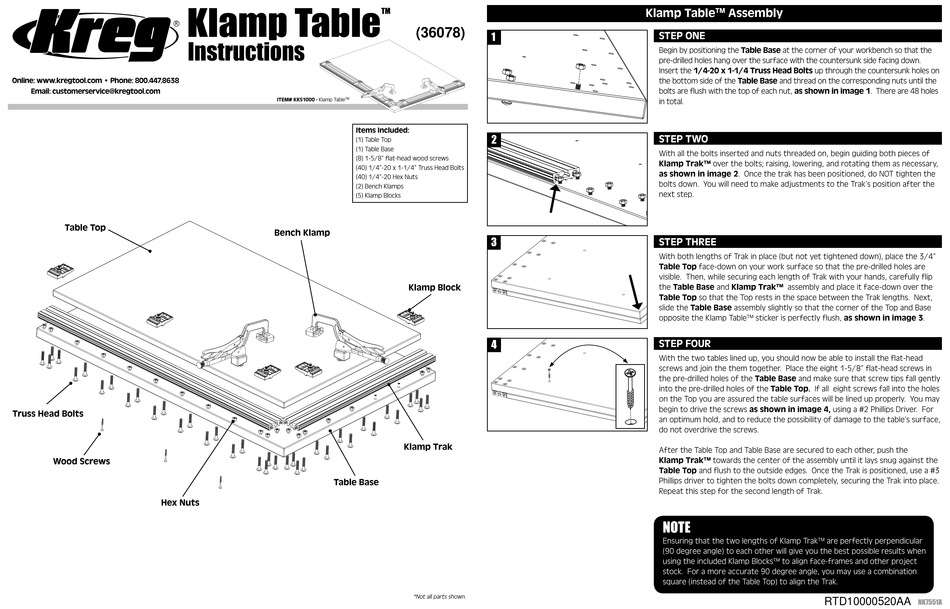

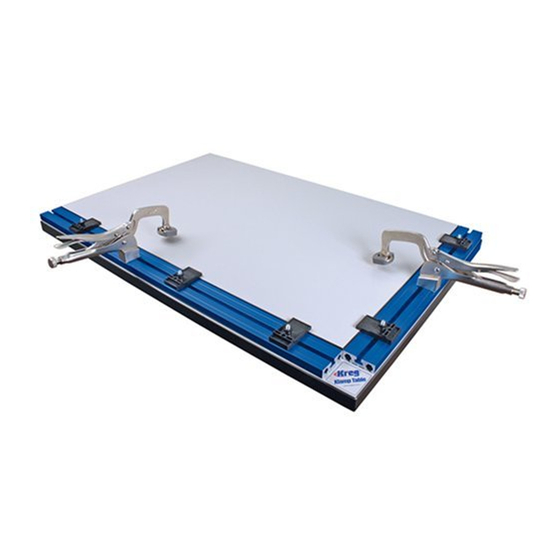

Kreg Klamp Table KKS1000 Instructions

Klamp Table
Instructions
Online: www.kregtool.com • Phone: 800.447.8638
Email: customerservice@kregtool.com
Table Top
Truss Head Bolts
Wood Screws
Hex Nuts
TM
(36078)
ITEM# KKS1000 - Klamp Table TM

Items Included:

(1) Table Top
(1) Table Base
(8) 1-5/8" flat-head wood screws
(40) 1/4"-20 x 1-1/4" Truss Head Bolts
(40) 1/4"-20 Hex Nuts
(2) Bench Klamps
(5) Klamp Blocks
Bench Klamp
Klamp Block
Klamp Trak
Table Base
*Not all parts shown.
Klamp Table

STEP ONE

1
Begin by positioning the Table Base at the corner of your workbench so that the
pre-drilled holes hang over the surface with the countersunk side facing down.
Insert the 1/4-20 x 1-1/4 Truss Head Bolts up through the countersunk holes on
the bottom side of the Table Base and thread on the corresponding nuts until the
bolts are flush with the top of each nut, as shown in image 1. There are 48 holes
in total.

STEP TWO

2
With all the bolts inserted and nuts threaded on, begin guiding both pieces of
Klamp Trak™ over the bolts; raising, lowering, and rotating them as necessary,
as shown in image 2. Once the trak has been positioned, do NOT tighten the
bolts down. You will need to make adjustments to the Trak's position after the
next step.

STEP THREE

3
With both lengths of Trak in place (but not yet tightened down), place the 3/4"
Table Top face-down on your work surface so that the pre-drilled holes are
visible. Then, while securing each length of Trak with your hands, carefully flip
the Table Base and Klamp Trak™ assembly and place it face-down over the
Table Top so that the Top rests in the space between the Trak lengths. Next,
slide the Table Base assembly slightly so that the corner of the Top and Base
opposite the Klamp Table™ sticker is perfectly flush, as shown in image 3.

STEP FOUR

4
With the two tables lined up, you should now be able to install the flat-head
screws and join the them together. Place the eight 1-5/8" flat-head screws in
the pre-drilled holes of the Table Base and make sure that screw tips fall gently
into the pre-drilled holes of the Table Top. I f all eight screws fall into the holes
on the Top you are assured the table surfaces will be lined up properly. You may
begin to drive the screws as shown in image 4, using a #2 Phillips Driver. For
an optimum hold, and to reduce the possibility of damage to the table's surface,
do not overdrive the screws.
After the Table Top and Table Base are secured to each other, push the
Klamp Trak™ towards the center of the assembly until it lays snug against the
Table Top and flush to the outside edges. Once the Trak is positioned, use a #3
Phillips driver to tighten the bolts down completely, securing the Trak into place.
Repeat this step for the second length of Trak.
NOTE
Ensuring that the two lengths of Klamp Trak™ are perfectly perpendicular
(90 degree angle) to each other will give you the best possible results when
using the included Klamp Blocks™ to align face-frames and other project
stock. For a more accurate 90 degree angle, you may use a combination
square (instead of the Table Top) to align the Trak.
TM Assembly
RTD10000520AA
NK7551A
