Z-Series: Metric Components

Service Manual

This service manual includes installation, operation, and maintenance instructions for

Ampco Pump Company's Z-Series: ZCM and ZCHM. Failure to learn the correct procedures

for installing and servicing the pump from this manual could result in equipment failure.

Need help?

Do you have a question about the Z Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ampco Pumps Company Z Series

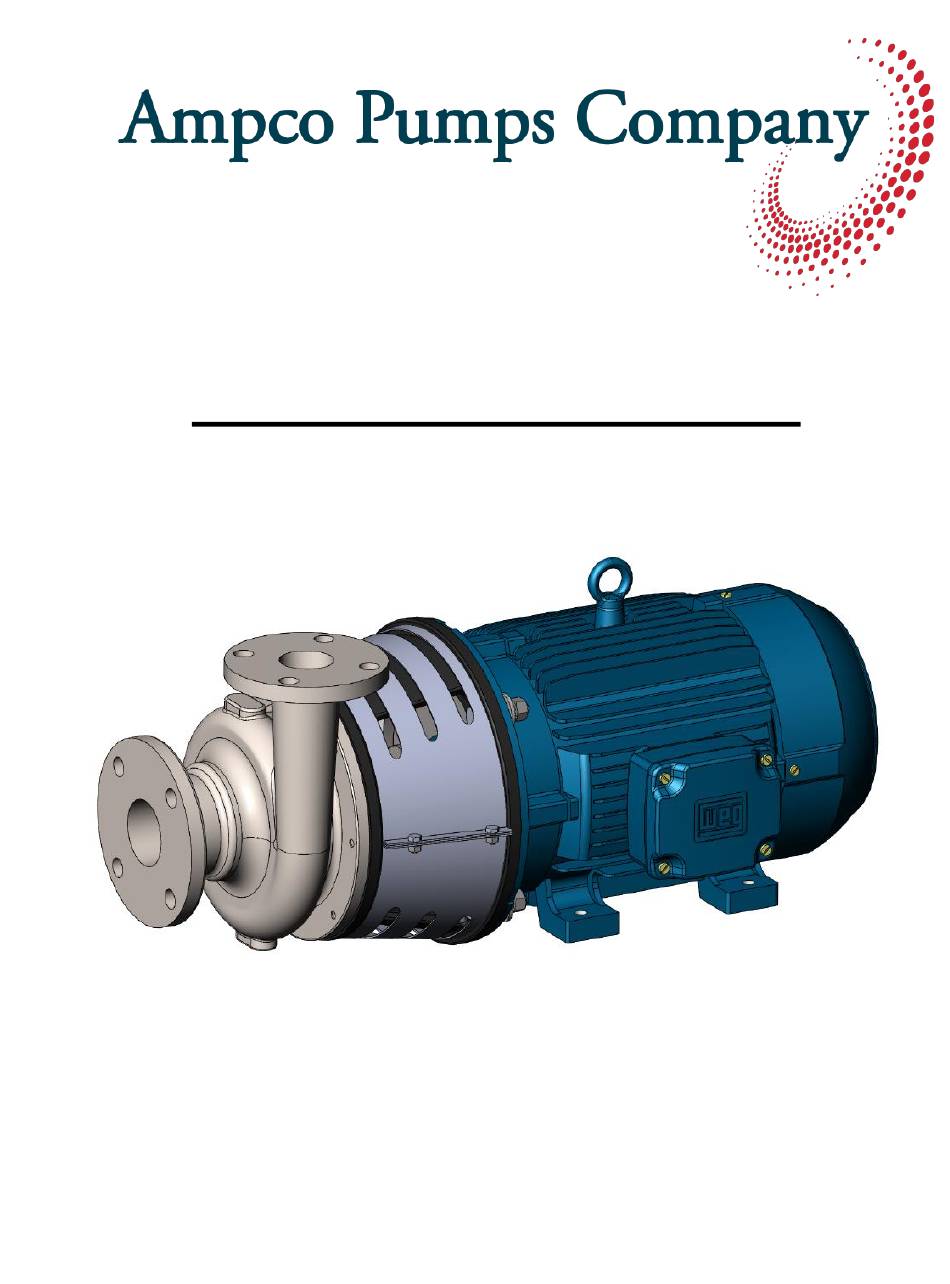

Page 1 Z-Series: Metric Components Service Manual This service manual includes installation, operation, and maintenance instructions for Ampco Pump Company’s Z-Series: ZCM and ZCHM. Failure to learn the correct procedures for installing and servicing the pump from this manual could result in equipment failure.
Page 2: Pump Installation
PUMP INSTALLATION Receiving pumps: Visually inspect shipping crate(s)/pallet(s) for damage. Ampco pumps will be shipped in boxes labeled Ampco Pumps or in crates. If there is any damage it is imperative to notify the driver at the time of delivery. Failure to do so will make it difficult, if not impossible, to file a damage claim and Ampco Pumps will not be held accountable.
Page 3 General Piping Notes  Pipe hangars or other supports must be used at proper intervals to ensure proper piping support near the pump. Do not use the pump to support piping!  When flange bolts are tightened no strain should be transmitted to the pump, thus suction and discharge piping should be supported independent of the pump and care should be taken that the pump and piping are properly aligned.
Page 4  High point such as loops or arcs must be avoided as they may create air pockets, throttle the system, and produce erratic pumping.  A valve must be installed in the suction piping in order to isolate the pump during shutdown and maintenance, and to facilitate pump removal.
Page 5 Priming The Z-Series pump is not a self-priming pump and must be completely filled with the pumping liquid before operation. If the system has a positive suction head priming can be done by opening the valve in the suction piping as well as the pump’s air vents to allow the liquid to enter the pump casing.
Page 6 4. As soon as the pump reaches operating speed, open the discharge gate slowly until complete system flow is achieved. There may be valve chatter during transient period during valve adjustment. Be aware that the pump’s motor is specified for the flow and pressure specified by the customer and that higher flow rates could damage the motor.
Page 7 The remaining pump assembly is now ready to be performed. (For double seal assembly refer to instructions listed in Appendix B) First the stationary seal [16+17] must be pressed into the cover or stuffing box [4]. Temporary rubber emulsion or water should be used on the elastomer, and the seal should be pressed in by hand.
Page 8 and then place the seal spring into the rotating seal element. Once the shaft sleeve is prepped, push it onto the stub shaft until it Ensure the impeller does not rub against seats against the the cover by turning it by hand. You are now shoulder.
Page 9 Figure 9: Type 21 seal cross section parts diagram F-750-025-A / rev 12.20 – ZCM- ZCHM Series Metric Manual...
Page 10 Appendix: A Parts List Number Description Qty. per pump Pump Casing Casing Wear Ring Impeller Rear cover Motor Adapter Stub Shaft Shaft Collar Adapter Guard Cover Gasket Impeller Screw Impeller O-Ring Shaft Sleeve Shaft Sleeve O-Ring 1 Shaft Sleeve O-Ring 2 Seal: Spring Seal: Cup Seal: Seat...
Page 11 Appendix: B Double Seal Assembly Instructions *Refer to Figure 11 for part numbers referenced within double seal assembly instructions. The double seal-supplied pumps require sub-assembly of the stuffing box prior to installation on the pump. Below are the steps required (Refer to Figure 10 and Figure 11): 1.
Page 12 Appendix: B Double Seal Assembly Instructions 4. Place the gland [9] with the outboard stationary seal so that it locates on its pilot in the rear of the stuffing box. Do not forget the o-ring [8] (GX5042814) 5. Tighten the 4 screws [11/10] (GX5501110) evenly and carefully. Prepare the shaft sleeve: Place the O-ring in the groove inside the sleeve, and the O-ring on –...
