MAIntenAnCe
1.) Before performing any maintenance or cleaning, always unplug the unit from the power
source.
2.) Compressor Diaphragm: Over time the compressor diaphragm can become worn. This
will greatly reduce the air output of the unit. We recommend to replace the diaphragm
once a year. Replacement Diaphragm Kit #120920. *PondAir™-4 requires two kits.
trOUBLeSHOOtInG
If you have loss of airflow, check the following:
• Has the air flow regulator been adjusted? Make sure that the air flow regulator hasn't been
turned down.
• Is the air filter blocked? This can happen if the compressor is placed in a dusty area.
• Are there leaks or blockages in the airline? Check the airline for any signs of leaks or
clogging.
• Is the airline kinked? Make sure there are no kinked restricting air flow.
• Are the air stones clogged? Over time air stones can become clogged and may need to be
cleaned or replaced. (Item #160161)
• If all of the above has been checked and you still have reduced air flow, they more than
likely the diaphragm will have to be replaced.
rePLACeMent PArtS
REPLACEMENT PARTS
Diaphragm Replacement Kit for PondAir™-2
Diaphragm Replacement Kit for PondAir™-4
Airline, 30' Roll
Replacement Blue Air Stone
Replacement Check Valve
WArrAntY:
All PondAir™ Pumps carry a 1 year warranty. This limited warranty is extended exclusively
to the original purchaser and begins from the date of original purchase receipt. Air stones,
airline and replacement diaphragms are wearable items and are not covered by this warranty.
Abuse or misuse of this product voids all warranty. Any sign of water damage inside the unit
voids all warranty. For warranty claims, product must be returned to the original place of
purchase with original receipt.
Airmax® Ecosystems
Natural. Clear Water. Guaranteed.™
www.airmaxeco.com
4
ITEM #
#120920
#120921
#490315
#160161
#490314
PondAir
PondAir
Airmax® Ecosystems
Natural. Clear Water. Guaranteed.™
www.airmaxeco.com
-2
™
-4
™

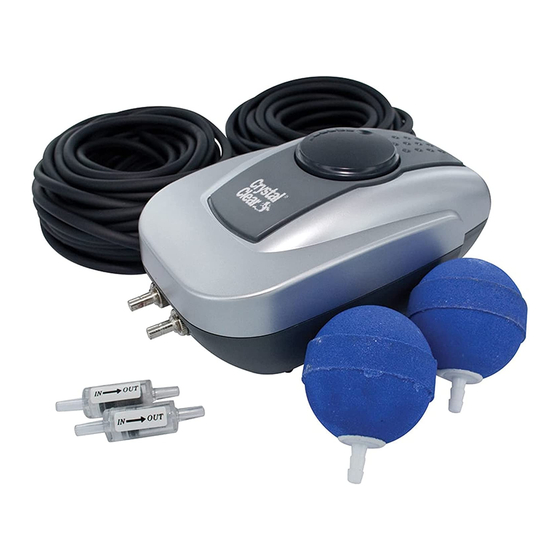

Installation & Maintenance
For Models:
• PondAir™-2
• PondAir™-4
(Item #120915)
(Item #120916)
1-YeAr WArrAntY
