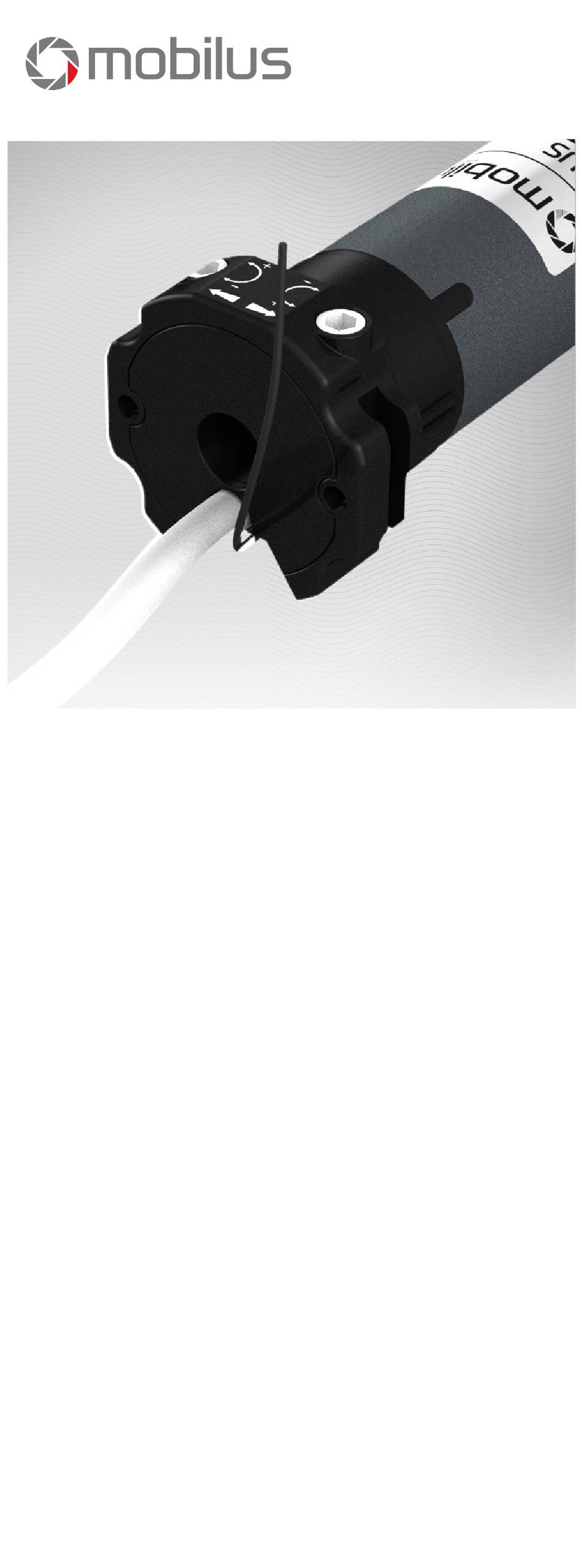

- Page 1 TUBULAR MOTOR MR INSTALLATION AND OPERATING INSTRUCTIONS MOBILUS MOTOR Spółka z o.o. ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO. PL9721078008 www.mobilus.pl...
- Page 2 01. SAFETY GUIDE • MOBILUS M35 MR, M45 MR rotatable tubular motor is used in automatic operation of roller blinders, grates, gates and awning. • After removing the device form the box, check if it is free form any visible damages made in transportation for instance.
- Page 3 04. READING THE MASTER CODE INTO THE TUBULAR MOTOR MEMORY ON OFF ON OFF Fig. 4.1 1. Enter the MR tubular motor in the PROGRAMMING MODE - Fig. 4.1a. 2. Press and hold STOP and UP for more than 1 second on the emitter. Drive shall make two micro-turns and confirming MASTER read in and tubular motor shall switch to work mode.
- Page 4 ATTENTION If within 20 seconds none of the procedures shall be commenced – tubular motor shall return to it’s work mode. 09. POWER SUPPLU SCHEME 230V~ 50Hz MOBILUS MR a) TUBULAR MOTOR PHASE b) CONNECTION BOX NEUTRAL...
- Page 5 10. BI-DIRECTIONAL COMMUNICATION, SIGNAL REPEATER FUNCTION Tubular motors with a built-in radio system also have the following functionality: BI-DIRECTIONAL COMMUNICATION - allows the exchange of information between the tubular motor and the remote control. Depending on the model of the radio controller, the user may obtain more or less extensive messages (location of the shutter, encounter of obstacles, etc.).
- Page 6 If you use control cables longer than those used in the factory, please contact the technical department of Mobilus Motor Sp. z o.o. The technical data of the tubular motor are given on its data plate.
