Ultravation UVPhotomax Signature SS-PTX-1224 Installation And Owner's Manual

• • Four self-tapping screws
One power supply with PCO lamp installed
• Two self-tapping lamp screws
• Four self tapping screws (for mounting)
• One light shield
• Two wire nuts (used with 24V units only)
• One magnet with mounting screw
• 24v power cord or 120v power cord depending
• One lamp mounting plate
on model
• One lamp mounting gasket
• UVC warning label
• One 12" or 17" UVC T3 germicidal lamp
• Replacement lamp log sheet
• One lamp cord w/connector
• Large square mounting gasket
• One "Y" connector
• Warranty card
Safety Precautions:
It is recommended that this unit be installed and maintained by a trained technician.
WARNING: UV Hazard. Always protect eyes from ultraviolet light. NEVER look at UV
lamps in operation. Unplug or disconnect power before re-lamping or servicing.
WARNING: Severe eye damage or temporary blindness may occur.
WARNING: DO NOT operate outside of air handler. Mount product in preferred
location first.
WARNING: No openings should be allowed which would give direct line-of-sight to the UV
light.
Note:
In the event of accidental breakage or replacement of the ultraviolet lamp, please
ensure that the lamp is disposed of in accordance with local and state environmental laws
regarding fluorescent lamps containing mercury.
Notice:
All wiring inside of the air handler in direct line of site of the UV lamp must be shielded with
aluminum foil tape or equivalent non-combustible material. When installing this unit, select
a mounting location that prevents ultraviolet light exposure to synthetic or other plastic com-
ponents with unknown resistance to ultraviolet light. Ultraviolet light may cause color shift
or structural degradation of plastic internal components.
Maintenance:
Typical maintenance of the Air Purifying System is recommended replacement of the UVC
lamp every year.
UV lamps undergo a photochemical process during operation. This slowly reduces the
amount of UV light generated to disinfect against airborne pathogens.
Note:
For the Signature Series models you must reset the service indicator light after each
lamp replacement. with the power on press and hold the RESET button for 10 seconds using
a non-metallic implement. The LED should turn blue while the button is depressed. Release
the RESET button, and the LED should remain blue.
Important:
When installing new lamps, ensure that the lamp glass is free from any fingerprints or debris,
as this may alter the path of the UV energy. Use rubbing alcohol and a dry cloth to remove
any surface contaminants.
Replacement Lamp Log Sheet:
Included with the product is a replacement lamp log sheet. It is provided as a label so it can
be attached near the installation to ensure lamp replacements are being tracked.
Replacement Lamp Part Numbers:
UVPhotoMax System............................12" Dual Spectrum Lamp ......................AS-IH-1013
UVCatalyst System..............................12" UVC T3 germicidal Lamp..................AS-IH-1001
Replacement lamps for Remote EZLight Option
12" UVC T3 germicidal Lamp (Provides 2 years increase HVAC efficiency)...AS-IH-1001
17" UVC T3 germicidal Lamp (Provides 2 years increase HVAC efficiency)...AS-IH-1003
Whole House Air Cleaning
To further enhance your indoor air quality try an
Ultravation ProgressiveMedia Air Cleaner with your
Advanced Oxidtion Air Purifier. We manufacture the
filter frames that house our Progressive Media filters
to the same quality standards as our high
performance filter media. Built with 100% U.S origin,
galvanized steel and powder coat finish, we back all of
our filtration equipment with a ten year waranty.
For more information on Progressive
Media Whole House Air Cleaners go to:
www.ultravation.com
Warranty:
Ultravation® UVPhotoMAX™ and UVCatalyst offers the Ultravation ten year warranty,
Signature Series models have the Utravation lifetime warranty, with the exception of the
ultraviolet lamp(s), which are warranted for a period of one year after date of consumer
purchase.
This warranty does not include damage to the unit from accident, misuse or improper
installation.
If this product should become defective, Ultravation will elect to repair or replace the
product free of charge. Ultravation will return repaired or replaced warranted products
pre-paid to the customer, provided that the product was delivered pre-paid.
Ultravation shall have no responsibilities for charges incurred by the customer for
installation or removal of warranted items. Liability is limited only to the replacement or
repair of this product.
This warranty gives you specific legal rights, and you may also have other rights, which vary
from state to state. All returns must be accompanied by a return authorization number,
which may be obtained by contacting Ultravation, Inc.

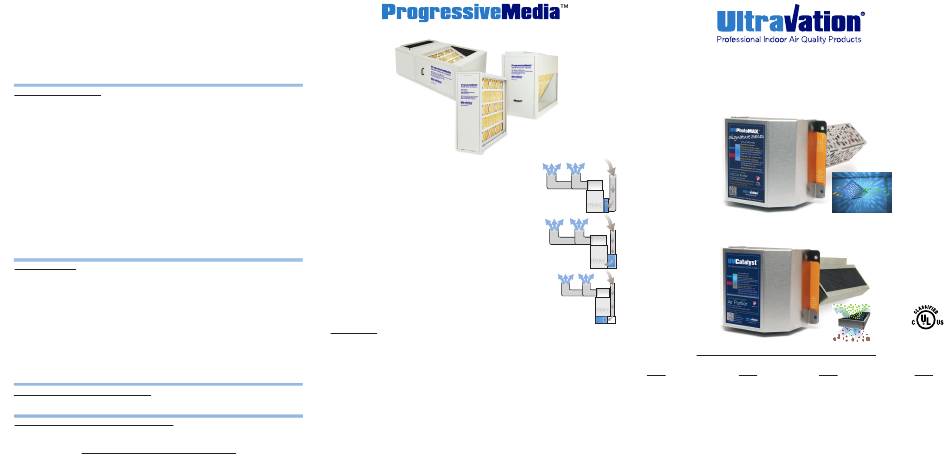

Installation and Owners Manual
Straight-
Through
UVPhotomax Series
Right
Angle
Support
Box Style
UVCatalyst Series
This manual is for the following models
Model#
SS-PTX-1224
SS-PTX-1224-12R
SS-PTX-1224-17R
SS-PTX-1200
SS-PTX-1200-12R
SS-PTX-1200-17R
PTE-1224
PTE-1224-12R
PTE-1224-17R
PTE-1200
PTE-1200-12R
PTE-1200-17R
Advanced Oxidation
Air purifier
Signature Series
models shown
Operating Operating
Voltage Model#
24V SS-UVCatalyst-1224
24V SS-UVCatalyst-1224-12R
24V SS-UVCatalyst-1224-17R
120-240V SS-UVCatalyst-1200
120-240V SS-UVCatalyst-1200-12R
120-240V SS-UVCatalyst-1200-17R
24V UVCatalyst-1224
24V UVCatalyst-1224-12R
24V UVCatalyst-1224-17R
120-240V UVCatalyst-1200
120-240V UVCatalyst-1200-12R
120-240V UVCatalyst-1200-17R
5TA2
Voltage
24V
24V
24V
120-240V
120-240V
120-240V
24V
24V
24V
120-240V
120-240V
120-240V
