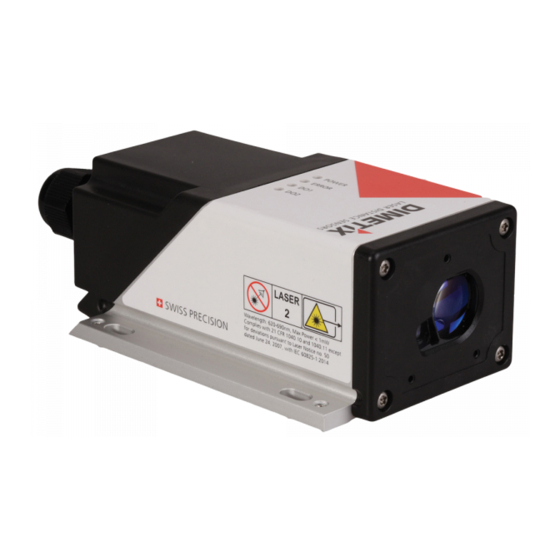

- Page 1 SWISS PRECISION LASER DISTANCE SENSORS D-Series – Laser Distance Sensor Quickstart Guide V0.11 17.07.2020 File: QuickStartGuide_DSeries_V011.odt Dimetix AG Degersheimerstr. 14 9100 Herisau Switzerland Phone +41 71 353 00 00 Fax +41 71 353 00 01 info@dimetix.com www.dimetix.com • • •...
-
Page 2: Table Of Contents
5 Important links ..............................5 1 Document scope This document describes the frst steps of using a Dimetix D-Series laser distance sensor. It contains a step by step instruction how to execute a frst measurement and some additional information to improve the measurements. -
Page 3: Starting With The Sensor
3.2 Preparation Do the described steps to prepare the Dimetix laser distance sensor for the frst measurement with the Laser Sensor Utility software. The required equipment is listed below: PC (only Windows) with USB or RS-232 interface •... -
Page 4: Doing The Frst Measurements
For short range: White matt surface (e.g. white matt sprayed boards as an economical solution), or (0...40 m) Dimetix orange refective target for more performance (only for DPE, DEN & DEH devices) For wide range: Dimetix orange refective plate: Size 210 x 297 mm, Part Number 500113 (>... -
Page 5: Overview Confguration Possibilities
SWISS PRECISION LASER DISTANCE SENSORS 4.2 Overview confguration possibilities There are several confguration possibilities with a Dimetix laser sensor. The following examples can improve the measurement performance. Further information can be found in the Technical Reference Manual on our website (www.dimetix.com).
