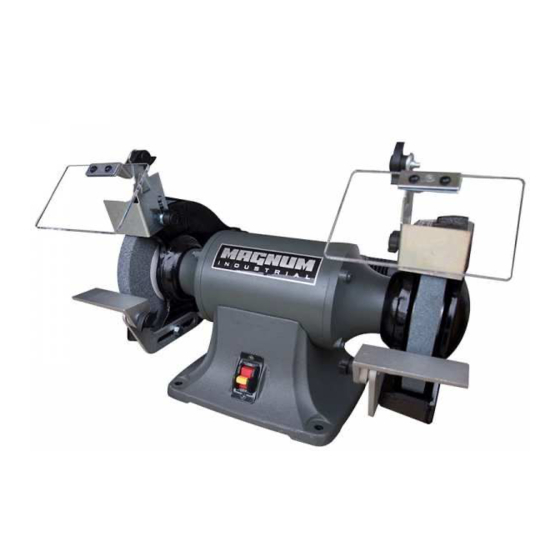

Summary of Contents for Magnum Industrial MI-15300
- Page 1 MODEL NO.: MI-15300、MI15350、 MI-15450 MI-15450_10 '' BENCH GRINDER MI-15300 & MI-15350_8 '' BENCH GRINDER OPERATING MANUAL...
- Page 2 115 / 230 ALUMINUM OXIDE VITRIFIED WHEELS GRIT 1 ea. 36 Coarse and 1 ea. 60 Medium SIZES MI-15300 : 8 Dla., 1 " Face, 5/8" Bore 8" MI-15350 : 8 Dla., 1 " Face, 5/8" Bore 8" MI-15450 : 10" Dia., 1 " Face, 1" Bore General Safety Information WARNING For your own safety, read operating instructions manual before operating tool.
- Page 3 2. Do not use power tools in dangerous environments. Do not use power tools in damp or wet locations. Do not expose power tools to rain. 3. Work area should be properly lighted. 4. Proper electrical plug should be plugged directly into properly grounded, three-prong receptacle. 5.
-
Page 4: Eyeshield Assembly
A 3/8-16 x 3/4" Hex bolt, 2 each B 3/8" Flat washer, 4 each C Tool rest bracket (left & right), 2 each D Tool rest (left & right), 2 each E 5/16" Flat washer, 2 each F 5/16-18 x 1" Knob, 2 each G #10-24 x 1/2"... -
Page 5: Installation
receive two 1/4"- 20 screws. Fasten bracket assembly to wheel guard with two screws provided with eyeshields. Installation MOUNT GRINDER 1. Mount grinder to a solid horizontal surface (hardware not provided). If mounted to metal pedestal, align mounting holes with corresponding holes in pedestal. Insert a 1/4-20 x 1%" hex head bolt with flat washer through base of grinder. -
Page 6: Extension Cords
Do not use a 3-prong to 2-prong grounding adapter unless permitted by local and national codes and ordinances. Installation (Continued) (A 3-prong to 2-prong groundlng adapter is not permitted in Canada.) Where permitted, the rigid green tab or terminal on the side of the adapter must be securely connected to a permanent electrical ground such as a property grounded water pipe, a properly grounded outlet box or a properly grounded wire system. -
Page 7: Maintenance
1/16" maximum gap cannot be maintalned, the wheels should beaced. 3. Models MI-15300 and MI-15350 : acement wheels should have a minimum rated speed of at least 3600 RPM. Model MI-15450 : acement wheels must have a minimum rated speed of 1800 RPM. - Page 8 PARTS LIST FOR MI-15300 & MI-15350...
- Page 9 PARTS LIST FOR MI-15300 & MI-15350 ITEM NO. DESCRIPTION Q'ty ITEM NO. DESCRIPTION Q'ty MI-15300-01 #10-24 x 3/4" Pan head screw MI-15300-33 Stator with housing (4 POLE) MI-15300-02 Wheel guard MI-15350-33 Stator with housing (2 POLE) MI-15300-03 Spark guard (set of 2)
- Page 10 PARTS LIST FOR MI-15450...
- Page 11 PARTS LIST FOR MI-15450 MI-15450-01 1/4-20 x 3/4" Pan head screw MI-15450-33 Stator with housing " 8 i l e i l e " 1 c t i MI-15450-08 Grinding wheel (36 coarse grit) MI-15450-40 Switch pl MI-15450-09 Grinding wheel (60 med. grit) MI-15450-41 5/16"...
