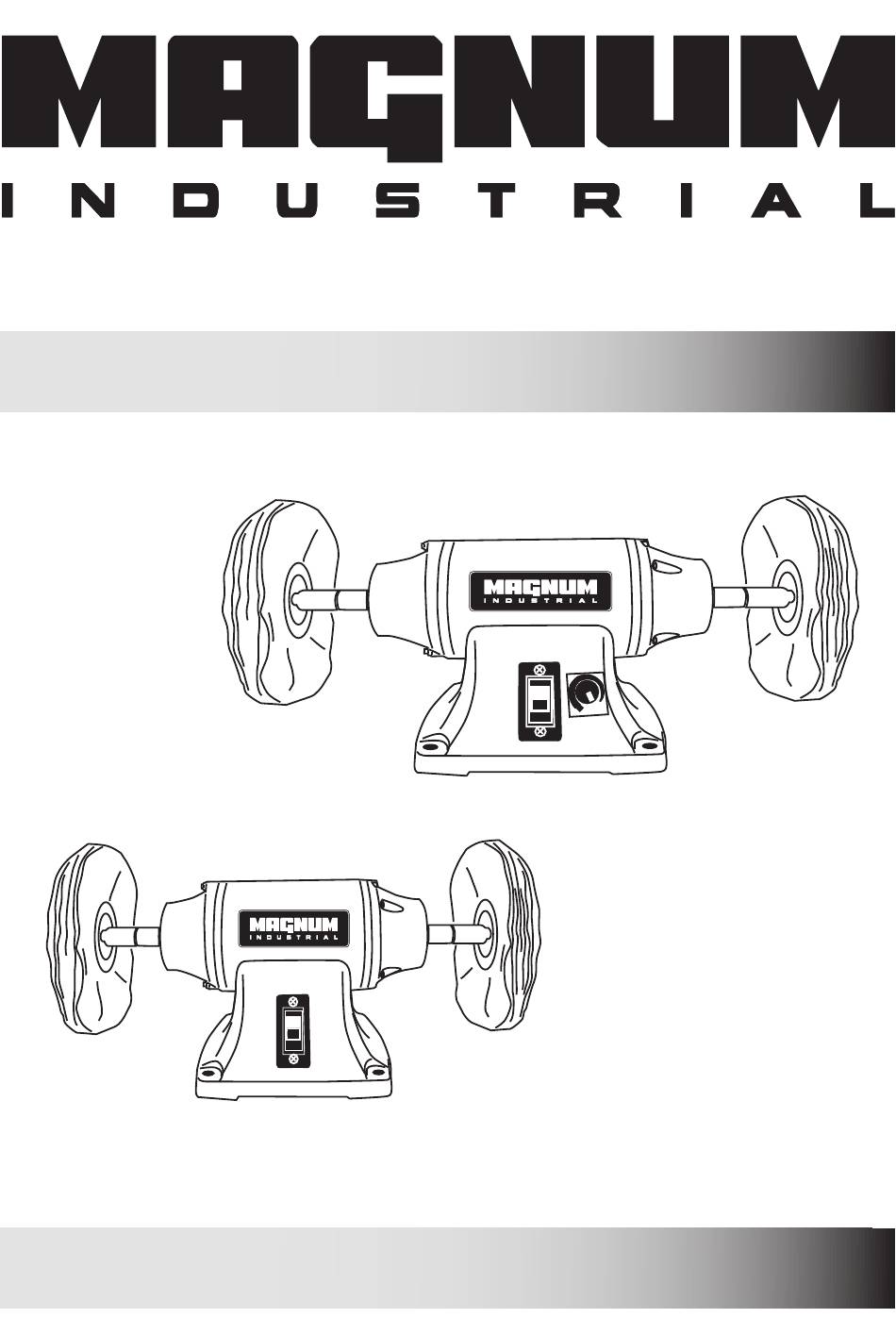

- Page 1 MODEL NO.: MI-14150、MI-14350 MI-14350_8'' POLISHER GRINDER MI-14150_6'' POLISHER GRINDER OPERATING MANUAL...
- Page 2 Motor housing is compact so long pieces of work can press against both buffi ng wheels without touching the motor frame. Buffi ng wheels are included The 6” Buffer, MI-14150, operates at a single speed of 3600 rpm. The 8” Buffer, MI-14350, operates at 3600 rpm and also can be operated at any speed from 2000 to 3300 rpm.
- Page 3 intended function. 6. Check for damaged parts. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other condition that may affect a tool's operation. 7. Do not perform makeshift repairs. (Use the parts list to order repair parts.) KNOW HOW TO USE TOOL 1.
-
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS WARNING Improper connection lof equipment grounding conductor can result in the risk of electrical shock. Equipment should be grounded while in use to pro- tect operator from electrical shock. Check with a qualified electrician if grounding instructions are not under- stood or if in doubt as to whether the tool is properly grounded. -
Page 5: Operation
Maintenance 1. Replacement wheels must have a mini- mum rated speed of 3600 RPM. 2. Maximum wheel diameter is 6" for MI-14150 and 8" for MI-14350. 3. Disconnect unit from power source before replacing buffing wheels or before performing any maintenance work. - Page 6 PARTS LIST FOR MI-14150...
- Page 7 PARTS LIST FOR MI-14150 ITEM NO. DESCRIPTION Q'ty MI-14150-01 1/2"-12 Hex nut (LH Thread) MI-14150-02 Wheel flange MI-14150-03 Spacer MI-14150-04 5-0.8mm Hex nut MI-14150-05 #10 Serrated washer MI-14150-06 Endshield MI-14150-07 6202ZZ Bearing MI-14150-08 Motor fan MI-14150-09 Armature MI-14150-10 Stator with housing MI-14150-11 1/2"-12 Hex nut...
- Page 8 PARTS LIST FOR MI-14350...
- Page 9 PARTS LIST FOR MI-14350 ITEM NO. DESCRIPTION Q'ty MI-14350-01 5/8"-12 Hex nut (LH Thread) MI-14350-02 Wheel flange MI-14350-03 Spacer MI-14350-04 5-0.8mm x Flange screw MI-14350-05 Endshield MI-14350-06 Wavy washer MI-14350-07 6202ZZ Bearing MI-14350-08 Armature MI-14350-09 Grommet MI-14350-10 Stator with housing MI-14350-11 Motor fan MI-14350-12...
