Parker FastSeal Assembly Instructions & Troubleshooting

FastSeal Assembly Instructions & Troubleshooting
FastSeal assembly consists of the
™
following steps:
1. Prep - cutting, deburring and cleaning of the tube
2. Pre-set
3. Pre-set inspection
4. Final installation
1. Prep
To start, please select your tubing OD and wall thickness using Table 1.
Tube Wall Thickness
OD 0.035 0.049 0.065
1/4" X X
3/8" X
1/2" X
Table 1
For proper tube end preparation see the
Parker's Catalog 4300 or watch our
2. Pre-set
FastSeal connections require pre-setting that can be accomplished by hand with a wrench and is best done with the
assistance of a fixed vice.

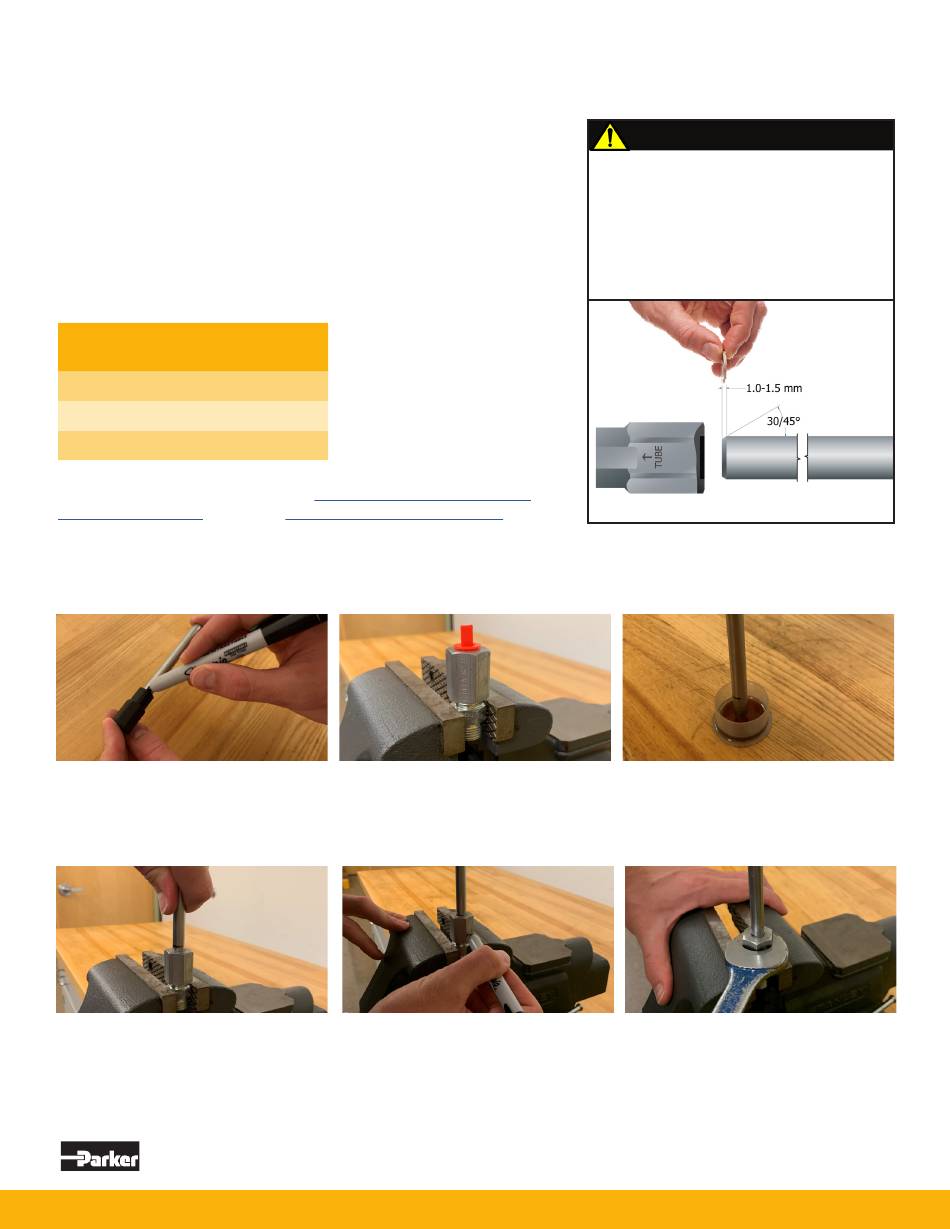

Step 1 – Place marking tool on tube
until it bottoms out. Mark around
OD as shown. If marking tool is not
available, use insertion depths shown
in Table 2.
Step 4 – Insert the tube into the
FastSeal nut to the tube depth
mark. Twist and push tube to aid the
insertion. You will feel the tube pop
past the O-ring and bottom out.
0.083
X
X X
Assembly and Installation Section
techConnect Tube End Prep
Step 2 – Thread FastSeal nut onto
fitting body or mandrel hand tight.
This is best completed with the
assistance of a fixed vice if available.
Step 5 – Mark the nut and body as
shown to assist with the FFFT preset.
CRITICAL STEP:
A heavy deburr, per Figure 1 of at least 1
mm on the tube is recommended to prevent
damage to the internal O-ring. Ensure tube
is clean and all chips and debris have been
removed from the tube. The deburr dimension
can be checked visually (roughly the
thickness of a coin) or with the depth gauge
on the back end of the marking tool.
Figure 1: Recommended deburr
Video.
Step 3 – Lubricate the end of the tube
with hydraulic oil to help with insertion
in the next step.
Step 6 – Tighten the nut to specified
FFFT of 7-8 flats. You should feel a
perceptible torque rise around 7 flats.
