  • Page 1 User guide M-9589-9081-02-A diagnostic kit TONiC ™...

  • Page 2: Table Of Contents

    1.6. Dongle interface dimensions 1.7. Signals 2. Software installation 3. Using Renishaw’s TONiC diagnostic kit 3.1. Connecting the system 3.1.1. TONiC with a digital Ti interface (Ti0004 - Ti4000) 3.1.2. TONiC with digital Ti interface (Ti10KD or Ti20KD) or analogue Ti interface (Ti0000) 3.2.

  • Page 3: General Information

    Renishaw office. Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty.
  • Page 4 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user’s authority to operate the equipment.

  • Page 5: Dongle Kit Contents

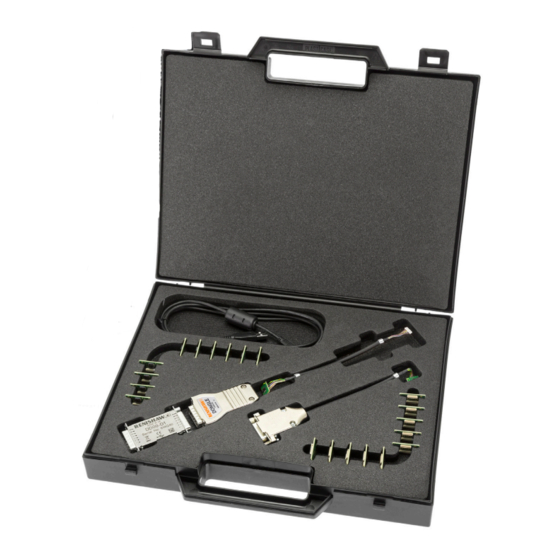

    TONiC diagnostic kit TONiC User guide User guide 1.4. Dongle kit contents  A-9411-0011: Item Description Quantity Dongle Dongle interface USB cable Interface cable for ATOM 15-way D-type readheads ™ Interface cable for TONiC and ATOM readheads Sacrificial interconnect PCB for TONiC and ATOM cabled readheads Sacrificial interconnect PCB for ATOM FPC readheads The dongle interface/Ti interface connector is not designed for multiple insertions and removals.

  • Page 6: Dongle Dimensions

    TONiC diagnostic kit TONiC User guide User guide 1.5. Dongle dimensions Dimensions and tolerances in mm 12.5 33.3 33.3 USB port Communication LED 1.6. Dongle interface dimensions Dimensions and tolerances in mm Diagnostic LED Requires 2 mm hex key CAL/AGC push switch access hole Ø2.4...

  • Page 7: Software Installation

    The software will have installed an icon on the desktop. 3. Using Renishaw’s TONiC diagnostic kit The TONiC diagnostic kit can be used to connect the TONiC system, via a USB link, to a PC to assist with the set-up. The software displays: ...

  • Page 8: Connecting The System

    TONiC diagnostic kit TONiC User guide User guide 3.1. Connecting the system Choose the appropriate interconnect cabling for your system from the options below and connect the TONiC readhead to the dongle. Readhead Interface Section TONiC Ti0004 - Ti4000 3.1.1.

  • Page 9: Starting The Software

    TONiC diagnostic kit TONiC User guide User guide 3.2. Starting the software ON FIRST USE DO NOT CONNECT THE SYSTEM TO THE USB PORT BEFORE STARTING THE SOFTWARE. On first use the software will automatically install the hardware drivers (‘5. Hardware driver installation’, page 13).

  • Page 10: Using The Software

    TONiC diagnostic kit TONiC User guide User guide 3.3. Using the software This section explains the functions of software. It should be used in conjunction with the relevant TONiC installation guide for details on how to install and set the system up. Only one copy of the software should be opened at a time with only a single TONiC system connected to it.

  • Page 11: Reference Mark Phasing

    TONiC diagnostic kit TONiC User guide User guide 3.3.2. Reference mark phasing This shows the phasing of the reference mark. The bar in the centre will move and change colour depending upon the phasing of the reference mark. When the reference mark is correctly phased the bar will flash green as the readhead passes over the chosen reference mark with the start and end of the bar in the boxes at either end.

  • Page 12: Cal Button

    TONiC diagnostic kit TONiC User guide User guide 3.3.5. CAL button Before system calibration, ensure AGC is switched off and signal is maximised the along the full axis of travel. Refer to the relevant TONiC installation guide for details of system installation and calibration procedure.

  • Page 13: Faultfinding

    TONiC diagnostic kit TONiC User guide User guide 4. Faultfinding 4.1. Driver installation failure If, during installation, the software does not find the hardware drivers, ’Device driver software was not successfully installed’, the drivers should be manually installed (‘5.2. Manual hardware driver installation’, page 13).

  • Page 14: Calibration Failure

    TONiC diagnostic kit TONiC User guide User guide 4.3. Calibration failure The software does not display if the calibration routine has failed. To check calibration status use the CAL LED on the TONiC readhead. If calibration fails restore factory defaults by pressing and holding the CAL button on the dongle interface whilst cycling the power.

  • Page 15: Hardware Driver Installation

     Click Finish and the software is ready to use. 6. Repairing/uninstalling the software  Ensure there are no copies of Renishaw’s TONiC software running before attempting to uninstall.  Go to Control panel >>Programs and Features.  Select TONiC diagnostic.
  • Page 16 New Mills, Wotton-under-Edge, uk@renishaw.com Gloucestershire, GL12 8JR, United Kingdom www.renishaw.com *M-9589-9081-02* For worldwide contact details, visit www.renishaw.com/contact Renishaw plc. Registered in England and Wales. Company no: 1106260. Part no.: M-9589-9081-02-A Registered office: New Mills, Wotton-under-Edge, Gloucestershire, GL12 8JR, UK. Issued: 02.2021...
