Behringer EUROPOWER EP2000 User Manual

Professional 2000-watt and 4000-watt stereo power amplifier with atr technology
Hide thumbs Also See for EUROPOWER EP2000:
Table of Contents

Advertisement

Quick Links

Enlarged version

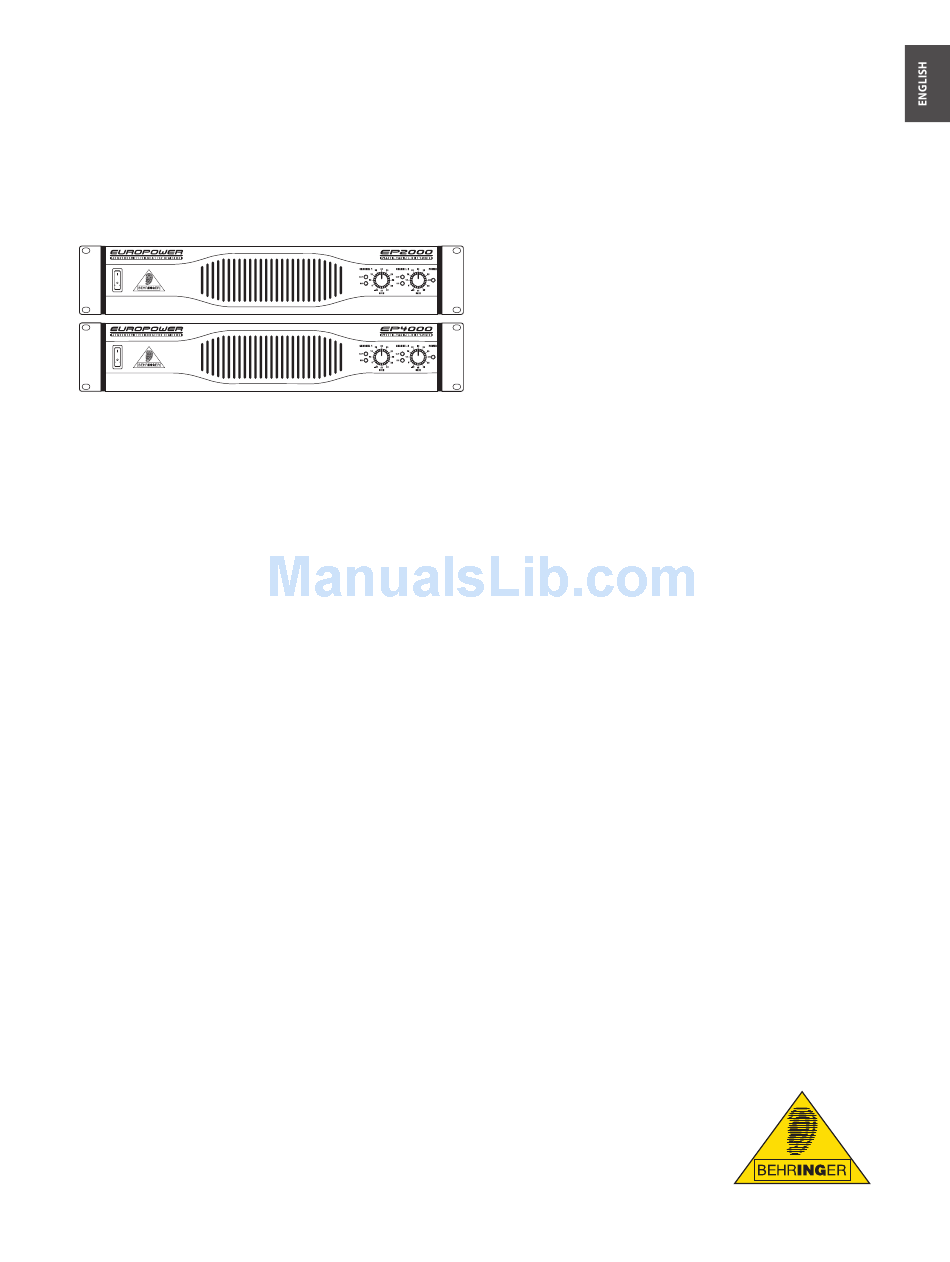

User Manual

Thank you

Thank you for choosing a BEHRINGER EUROPOWER amplifier.
This piece of high-end gear was developed for professional use
in live applications, and its many features make it a useful and
dependable part of your sound system.
The EUROPOWER amps feature an input filter for each channel,
enabling you to remove the low-frequency portion of the
signal, if desired. Additionally, there is a limiter that protects
your loudspeakers. Various operating modes, such as parallel or
mono-bridged mode, open up various possibilities for effective
implementation with the rest of your audio equipment for almost
any application.
This manual first describes the controls and connection points
so that you fully understand the EUROPOWER amplifier and its
functions. Then it delves into the various applications where the
EUROPOWER amp can be used, and finishes with more details on
installing and making the connections to the amplifier.
Have fun with your new amplifier.
This manual is available in English, German, French,
Spanish, Italian, Russian, Polish, Dutch, Finnish, Swedish,
Danish, Portugese, Greek, Japanese and Chinese. There may
also be more current versions of this document. Download them
by going to the appropriate product page at:
www.behringer.com
A50-A3830-08001
EUROPOWER
EP2000/EP4000
Professional 2,000-Watt
and 4,000-Watt Stereo Power
Amplifier with ATR
(Accelerated Transient
Response) Technology

Table of Contents

Thank you ..................................................................... 1
Important Safety Instruction ..................................... 2
1. Introduction ............................................................ 3
1.1 Before you get started ..................................................................3
2. Control elements .................................................... 4
2.1 Front panel ........................................................................................4
2.2 Rear panel ..........................................................................................4
3. Applications ............................................................ 6
mono-bridged operating modes ...................................................6
3.2 Bi-amping ...........................................................................................9
4. Installation ............................................................. 10
4.1 Connections ...................................................................................10
4.2 Audio connections ......................................................................11
5. Specifications ........................................................ 12
Legal Disclaimer ........................................................ 13
Warranty ..................................................................... 14

Advertisement

Table of Contents
loading

Related Manuals for Behringer EUROPOWER EP2000

Summary of Contents for Behringer EUROPOWER EP2000

  • Page 1: Table Of Contents

    User Manual Thank you Thank you for choosing a BEHRINGER EUROPOWER amplifier. This piece of high-end gear was developed for professional use in live applications, and its many features make it a useful and dependable part of your sound system.

  • Page 2: Important Safety Instruction

    EUROPOWER EP2000/EP4000 User Manual Caution { 1 } Read these instructions.

  • Page 3: Introduction

    Should your BEHRINGER product malfunction, it is our inten- tion to have it repaired as quickly as possible. To arrange for warranty service, please contact the BEHRINGER retailer from whom the equipment was purchased.

  • Page 4: Control Elements

    To prevent faulty operation, please assure that the unit is ◊ kept at a distance from other appliances emanating heat. EUROPOWER EP2000/EP4000 User Manual The CLIP LED lights up when the signal is distorted. [ 3 ] Should distortion occur, reduce the input level, so that the CLIP LED stops lighting up.

  • Page 5: Configuration Switches (Mode Switches)

    EUROPOWER EP2000/EP4000 User Manual BREAKER (automated fuse). After eliminating the cause of [ 1 3] faulty operation, simply depress the BREAKER and power up the unit again. The BREAKER acts in place of common discardable fuses. Caution Before engaging the BREAKER switch, you should power ◊...

  • Page 6: Applications

    8-Ohm or 4-Ohm load. To do so, set up the switches 6 and 7 to “BRIDGE MODE ON”. To use the binding posts as your output, you MUST use the two middle posts only. EUROPOWER EP2000/EP4000 User Manual The mono-bridged mode puts added demands on amplifier ◊...
  • Page 7 EUROPOWER EP2000/EP4000 User Manual Examples: 2-channel (stereo) playback • Two independent mono signals, e.g. instrument signal • and monitor mix Bi-amp operation, whereby bass frequencies are run • on channel 1, and high frequencies on channel 2 (see chapter 3.2 “Bi-amping”).
  • Page 8 • Driving a single 4-Ohm loudspeaker. • Fig. 3.5: Mono-bridged mode EUROPOWER EP2000/EP4000 User Manual Fig. 3.6: DIP switch positions for mono-bridged mode When the amp is overdriven for longer periods of time, ◊ the output signal may occasionally be muted for several seconds.

  • Page 9: Bi-Amping

    However, to do that you need two 2-way speakers or 4 separate speakers, two EUROPOWER amps and an active 2-way stereo crossover. The BEHRINGER SUPER-X PRO CX2310 is optimally suited for this task and offers additionally a single mono-subwoofer output. By deploying a...

  • Page 10: Installation

    Please assure that enough cool air reaches the rack, especially when other rack equipment emanates a lot of heat. In the case of the EUROPOWER EP2000 and EP4000, hot air circulates at the front of the unit to thermally relieve the rack enclosure.

  • Page 11: Audio Connections

    EUROPOWER EP2000/EP4000 User Manual When using binding post connectors, please make sure that insulation on cables is not removed too high. Insert the naked part of the cable fully so that no metal is visible. Cable clamps must be isolated to avoid the possibility of electric shock. When running the amp in mono-bridged mode, always use the middle two binding post connectors, paying attention to correct polarity.

  • Page 12: Specifications

    20 Hz - 20 kHz, +0/-1dB at -3 dB points 5 Hz - 50 kHz Damping Factor EP2000/EP4000 > 300 @ 8 Ω EUROPOWER EP2000/EP4000 User Manual Noise unweighted, 20 Hz to 20 kHz -100 dB Voltage gain EP2000 40x (32 dB)

  • Page 13: Legal Disclaimer

    EP4000 approx. 16.6 kg / 36.6 lbs BEHRINGER makes every effort to ensure the highest standard of quality. Necessary modifications are carried out without notice. Thus, the specifications and design of the device may differ from the information given in this manual.

  • Page 14: Warranty

    Any repair or opening of the unit carried out by unauthorized personnel [ 5 ] (user included) will void the warranty. If an inspection of the product by BEHRINGER shows that the defect in [ 6 ] question is not covered by the warranty, the inspection costs are payable by the customer.
  • Page 15 EUROPOWER EP2000/EP4000 User Manual...
  • Page 16 This manual is available in English, German, French, Spanish, Italian, Russian, Polish, Dutch, Finnish, Swedish, Danish, Portugese, Greek, Japanese and Chinese. There may also be more current versions of this document. Download them by going to the appropriate product page at: www.behringer.com...

This manual is also suitable for:

Europower ep4000
