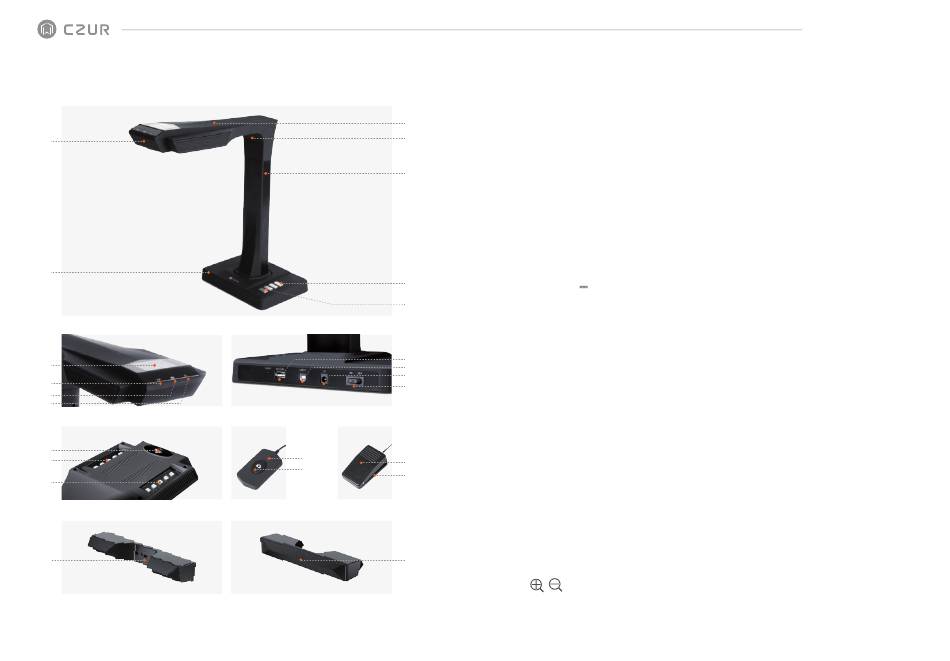

1.3 Product Appearance

1
2
8
9
10
11
12
13
14
Top Casing
23
Side Lights Port
3
CZUR Scanner
LCD Connection Ports
19
20
Hand Button Foot Pedal
Side Lights Touch Button
1. Microphone
2. Base
3. Top casing
4. Laser light
3
5. Vertical bar
4
6. LED brightness(high/low)
7. Scan (start next scan) (see Note A below)
5 8. LCD (see LCD Notes below)
9. Wi-Fi indicator light (see Note B below)
10. Scan indicator light (see Note C below)
11. Power indicator light (White)
12. HD CMOS camera
13. Bank of LED lights
14. Bank of LED lights
15. Power on/off switch
6
16. DC 9V 1.5A, AC volt 100-240V 50/60Hz
17. To USB cable for computer connection
7
18. USB port for Foot Pedal or Hand Button
19. Hand button light "Scan in progress"
20. Hand button (to start next scan)
21. Foot pedal cover
18
17
22. Foot pedal base
16
23. Side lights port
15
24. Side lights touch button
Notes
A. In Wi-Fi mode, press and hold the scan button for 3 seconds to quickly release your
21 account from the scanner.
22
B. Green & Blue lights flash. Wait for sound.
C. Red light on = scanning (don't flip the page). Red light off = scan is complete.
LCD Notes
· LCD= Liquid Crystal Display, a type of flat-panel display screen.
· When connected to a PC, displays if uploading or not to the PC.
24
, , Reset Notes
· These buttons are only for maintenance. Function are not open to users.
