USER MANUAL（ET16 Plus）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET16 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Czur ET16 Plus

Summary of Contents for Czur ET16 Plus

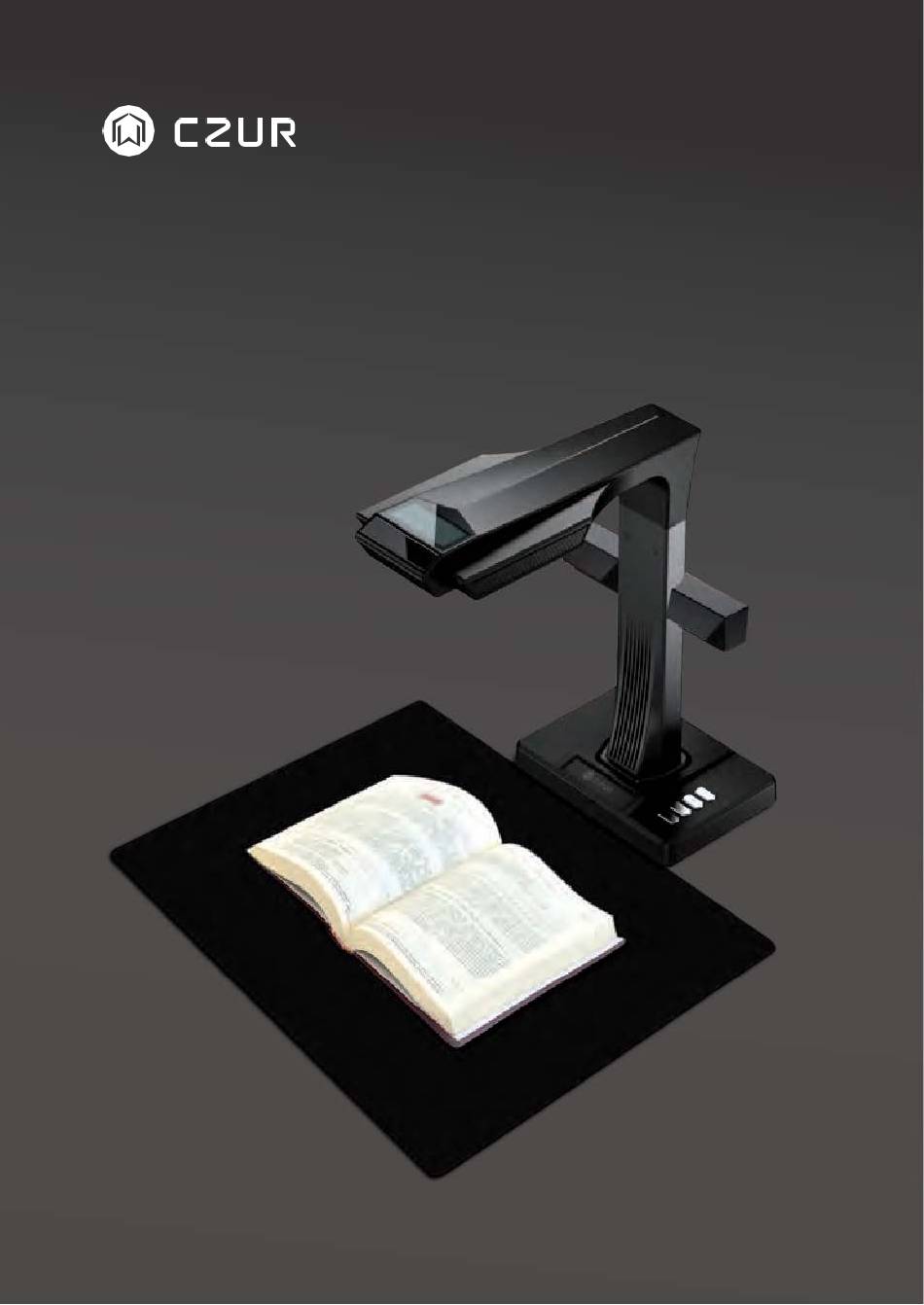

  • Page 1 USER MANUAL（ET16 Plus）...
  • Page 2 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 3: Table Of Contents

    Contents Chapter I Operation Guidelines 1.1 Scanning Preparation ................... 2 1.2 When Open the Software ................2 1.3 When Scanning ..................... 3 1.3.1 Four Processing Methods ..............3 1.3.2 Five Color Modes ................. 8 1.3.3 Other Functions ................... 8 1.4 After Scan...................... 9 1.4.1 Export Function ..................9 1.4.2 Batch Function ..................

  • Page 4: Chapter I Operation Guidelines

    CZUR TECH CO., LTD. Chapter I Operation Guidelines 1.1 Scanning Preparation Set up the scanner, and make sure the black document pad is placed like the picture below. Check the LCD and ensure the black document pad covers the entire screen without showing its edges.

  • Page 5: When Scanning

    CZUR TECH CO., LTD. 1.3 When Scanning: 1.3.1 Four Processing Methods 1. Flat Single Page: to scan unbounded non-curvature documents · The area within the yellowish line is what the after-scan JPG looks like. The lines can automatically adapt to the shape of the document.
  • Page 6 CZUR TECH CO., LTD. · When the other irrelevant objects are on the black document pad.
  • Page 7 CZUR TECH CO., LTD. · When the software is in flat single page mode, there is no auto curve-straightening function applied. 2. Facing Pages: to scan bounded books with curvature · Books must be placed under where the three red lasers are (see picture below). The length of the book must be more than 12cm.
  • Page 8 CZUR TECH CO., LTD. · Not all the three lasers are on the books. 3. Manual Selection: to manually select the specific area which needs to be scanned. Note: there is no auto curve-straightening technology used here...
  • Page 9 CZUR TECH CO., LTD. before after...

  • Page 10: Five Color Modes

    CZUR TECH CO., LTD. 4. No processing: to take a picture of the object and present the object as what it is. 1.3.2 Five Color Modes 1. Color: for docs with colors. 2. Patterns: for ID card. It maintains the background pattern of ID card or passport.

  • Page 11: After Scan

    CZUR TECH CO., LTD. 1.4 After Scan 1.4.1 Export Function: to export selected/all images to TIFF, WORD, PDF, Searchable PDF and Excel. Note: If converted to Word, the background color of the pages need to be white and clean without special characters. Otherwise the OCR might not be able to recognize the words properly.

  • Page 12: Auxiliary Correction

    CZUR TECH CO., LTD. 1. Standardize: To change the size, DPI (from 72 to 350), color (background color) and alignment of the selected images. 2. Quality: adjust the contrast, sharpness and thickness of the images. 1.4.3 Auxiliary Correction: to show what the docs look like when scanning with three laser lines.

  • Page 13: Visual Presenter

    CZUR TECH CO., LTD. 1.5 Visual Presenter Please see the video: https://www.youtube.com/watch?v=dE1jAfesPUU https://www.youtube.com/watch?v=072h9INK2Ys (from 29mins to the end) Chapter II Introduction 2.1 Product Dimensions...

  • Page 14: Product Appearance

    CZUR TECH CO., LTD. 2.2 Product Appearance CZUR Scanner Connection Ports Top Casing Hand Button Foot Pedal Side Lights Port Side Lights Touch Button...
  • Page 15 CZUR TECH CO., LTD. Microphone Base Top casing Laser light Vertical bar LED brightness(high/low) Scan(start next scan) LCD (see LCD Notes below) Video record indicator light Blinking green lights= Recording in progress. Green light off = Video record has been stopped.

  • Page 16: Product Specifications

    CZUR TECH CO., LTD. 2.3 Product Specifications Type ET16 Plus Model Pixel Resolution 4608*3456 ≈1.5S Scanning speed Basic ≤A3 Format characteristics Video format MJPG Picture format Export format PDF/TIFF/WORD/EXCEL/Searchable PDF Processor 32 MIPS CPU 1Gbit Configuration Laser rays 3 laser rays parameters √...

  • Page 17: Chapter Iii Terms Of Service

    CZUR TECH CO., LTD. Chapter III Terms of Service 3.1 After Sale Service and Guarantee · All after sales policy of this product shall be subject to the laws and regulations of the country of sales. · The scope of warranty covers the scanner device, the adapter, the hand button, and the foot pedal.

  • Page 18: Contact Information

    CZUR TECH CO., LTD. · Damages caused by repairs carried out by unauthorized repair centers. · Other errors and failures caused by software installation or software settings, or problems and failures caused by computer viruses. 3.2 Contact Information Get technical support and information by following ways.
  • Page 19 CZUR TECH CO., LTD. Website: http://www.czur.com E-mail: support@czur.com Skype: support@czur.com Room 1701, Oriental Science and Technology Building, No.16, Keyuan Road, Nanshan District, Shenzhen, China.
