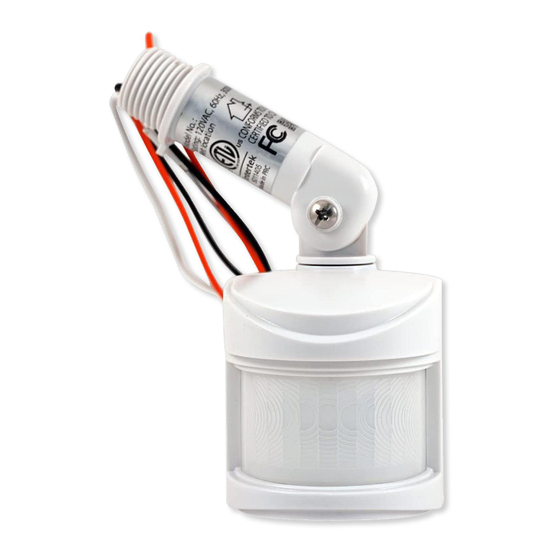

HS-FLS100-G2 | Z-Wave Plus Floodlight Sensor
Be sure to visit our website for the most up-to-date information about this product:
https://homeseer.com/support-home/
Overview
The HS-FLS100-G2 is a PIR module that's designed to retrofit onto existing
outdoor floodlights. It features a PIR sensor to detect motion through movement of
heat sources and a LUX sensor for determining brightness of its surroundings. It is
equipped with Z-Wave Plus wireless communication capability that will convert an
ordinary motion-activated floodlight into a smart home device.
Conventional Floodlight Mode
HS-FLS100-G2 can be used as a conventional motion-activated floodlight sensor
to power floodlights when motion is sensed during dark hours. Controls are
provided for manual adjustment of LUX sensitivity and floodlight ON times.
Smart Floodlight Mode
When added to a smart home system, HS-FLS100-G2 will send Z-Wave
commands to the smart hub or home controller when motion is sensed and when
the LUX level changes. Likewise, the smart hub or home controller can send
Z-Wave commands back to the HS-FLS100-G2 to turn floodlights ON and OFF.
This added functionality provides a very high level of flexibility not typically
available in conventional motion-activated floodlights.
Smart Sensor Mode
HS-FLS100-G2 can also be installed and used simply as an outdoor motion, LUX
and temperature sensor. Floodlight functionality is not required. This brings some
interesting security and smart home possibilities!
S2 Security
This product supports the S2 security protocol that uses encrypted Z-Wave Plus
messages to communicate to other security-enabled Z-Wave Plus products. A
security-enabled Z-Wave Plus controller must be used in order to fully utilize the
security features of this product.

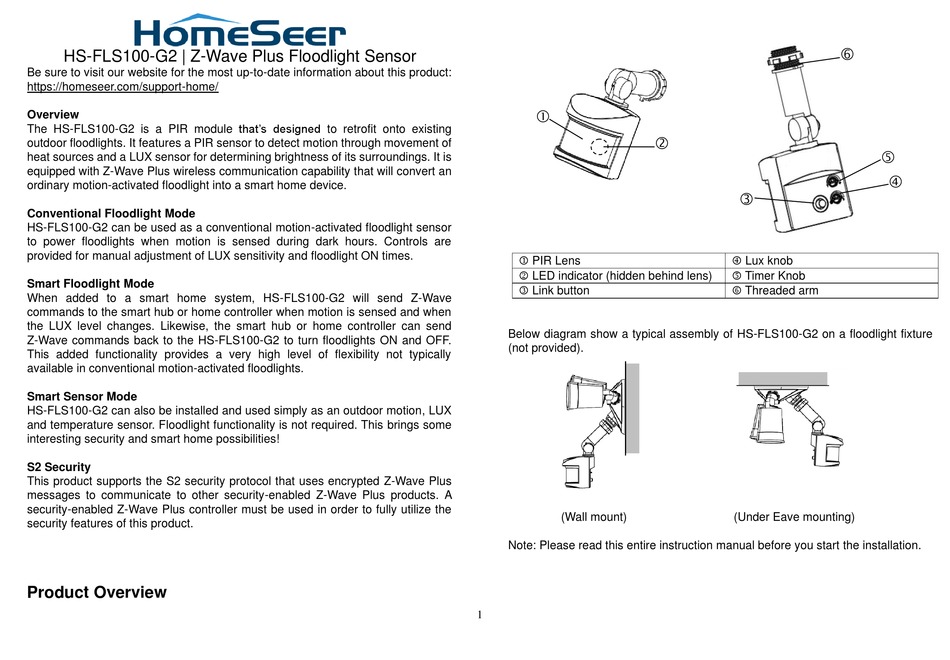

Product Overview
PIR Lens
LED indicator (hidden behind lens)
Link button
Below diagram show a typical assembly of HS-FLS100-G2 on a floodlight fixture
(not provided).
(Wall mount)
Note: Please read this entire instruction manual before you start the installation.
1
Lux knob
Timer Knob
Threaded arm
(Under Eave mounting)
Advertisement
Table of Contents
Related Manuals for HomeSeer HS-FLS100-G2
Summary of Contents for HomeSeer HS-FLS100-G2
- Page 1 This added functionality provides a very high level of flexibility not typically available in conventional motion-activated floodlights. Smart Sensor Mode HS-FLS100-G2 can also be installed and used simply as an outdoor motion, LUX and temperature sensor. Floodlight functionality is not required. This brings some interesting security and smart home possibilities!
- Page 2 7. Remove the old motion sensor from the mounting base by twisting its way. threaded arm counter clockwise. Wiring up HS-FLS100-G2 8. Screw the threaded arm of HS-FLS100-G2 into the mounting base. For typical wall installation, HS-FLS100-G2 should be located at the bottom of the mounting base.
- Page 3 9. Connect up the wiring as in the diagram below, using wire nuts to join the wires. If replacing an old motion sensor, simply follow the same wiring color as the old motion sensor. Assembling back the floodlight 12. Connect back the mains wire as before. Tuck the wire nuts and excess cable neatly inside the junction box.
- Page 4 If Auto Inclusion fails, refer to the Troubleshooting section regarding Manual Inclusion. Note: HS-FLS100-G2 also supports Z-wave SmartStart technology which allows inclusion of device with controller through automatic means, or through a quick scan of a QR code. The controller must support Z-wave SmartStart feature for it to work.
- Page 5 Hardware Version relevant relevant controller directly triggers. Par.5=0 Manufacturer Manufacturer ID Product Type Product ID Walk Test 0x000C (HomeSeer) 0x0201 0x000C Sends alert Lux knob Triggered On for 5 seconds whenever PIR AGI (Association Group Information) Table and Timer relevant triggers.
- Page 6 Notification 4. PIR Trigger alert : Enable/Disables PIR alerts sent from the unit through 1. Notification Report Notification report or Basic Report commands Event Parameters Event Parameter Size Range Default Event Type Event Length Parameters 0 : Disable alert 1 (Enable) First power up 0x08 0x01...
- Page 7 Sensor Type Precision Scale Size Sensor value Z-wave controller Out of range. 1. Relocate the controller closer cannot to the unit. 0x01 -4 ~ +122°F communicate with 2. Install a Z-wave repeater such the unit as smart plugs or other AC Read back the LUX level measured devices that can operate as a Sensor Type...
- Page 8 Be sure to visit our website for the most up-to-date information about this product: This equipment has been tested and found to comply with the limits for a Class B https://homeseer.com/support-home/ digital device, pursuant to Part 15 of the FCC Rules. These limits are designed...
