HS-FLS100+ | Z-Wave Plus Floodlight Sensor
Be sure to visit our website for the most up-to-date information about this product:
https://homeseer.com/support-home/
Overview
The HS-FLS100+ is a PIR module that's designed to retrofit onto existing outdoor
floodlights. It features a PIR sensor to detect motion through movement of heat
sources and a LUX sensor for determining brightness of its surroundings. It is
equipped with Z-Wave Plus wireless communication capability that will convert an
ordinary motion-activated floodlight into a smart home device.
Conventional Floodlight Mode
HS-FLS100+ can be used as a conventional motion-activated floodlight sensor to
power floodlights when motion is sensed during dark hours. Controls are provided
for manual adjustment of LUX sensitivity and floodlight ON times.
Smart Floodlight Mode
When added to a smart home system, HS-FLS100+ will send Z-Wave commands
to the smart hub or home controller when motion is sensed and when the LUX
level changes. Likewise, the smart hub or home controller can send Z-Wave
commands back to the HS-FLS100+ to turn floodlights ON and OFF. This added
functionality provides a very high level of flexibility not typically available in
conventional motion-activated floodlights.
Smart Sensor Mode
HS-FLS100+ can be installed and used simply as an outdoor motion and LUX
sensor. Floodlight functionality is not required. This provides some interesting
security and smart home possibilities!
S2 Security
This product supports the S2 security protocol that uses encrypted Z-Wave Plus
messages to communicate to other security-enabled Z-Wave Plus products. A
security-enabled Z-Wave Plus controller must be used in order to fully utilize the
security features of this product.

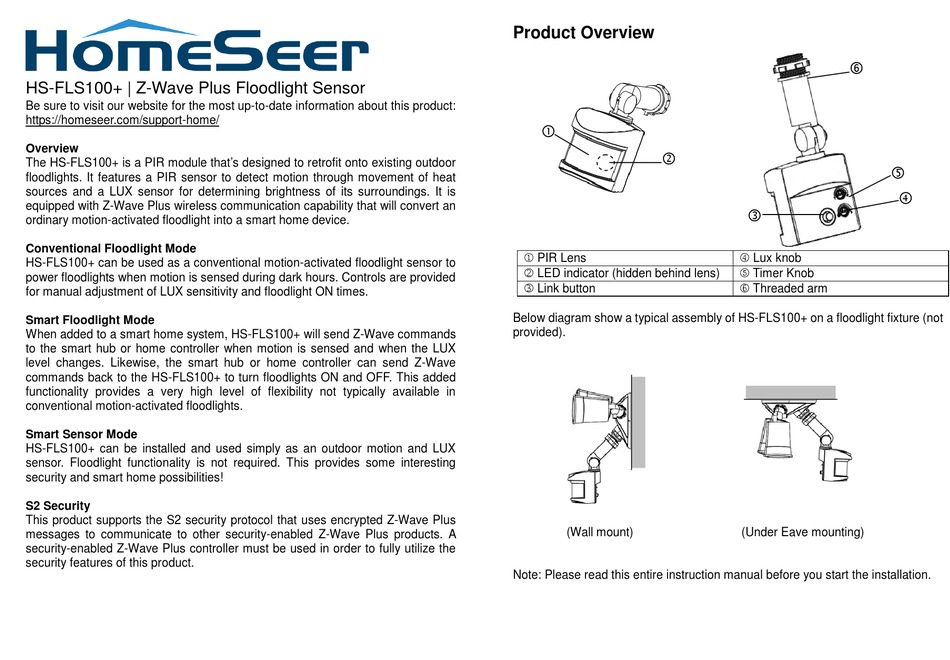

Product Overview
PIR Lens
LED indicator (hidden behind lens)
Link button
Below diagram show a typical assembly of HS-FLS100+ on a floodlight fixture (not
provided).
(Wall mount)
Note: Please read this entire instruction manual before you start the installation.
Lux knob
Timer Knob
Threaded arm
(Under Eave mounting)
