SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS

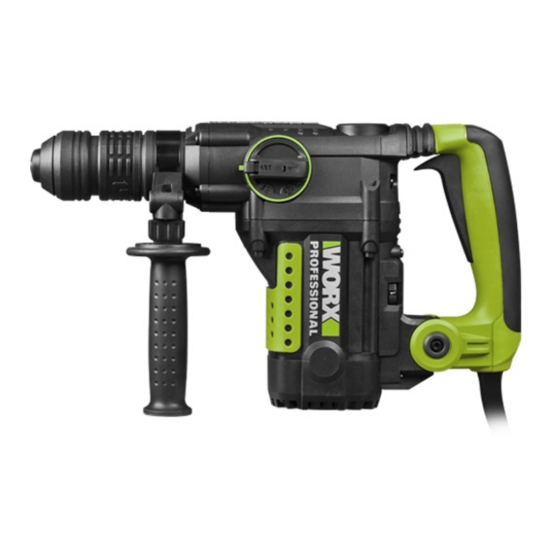

RotaRy HammeR
WU334

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WU334 and is the answer not in the manual?

Questions and answers

Related Manuals for Worx Professional WU334

Summary of Contents for Worx Professional WU334

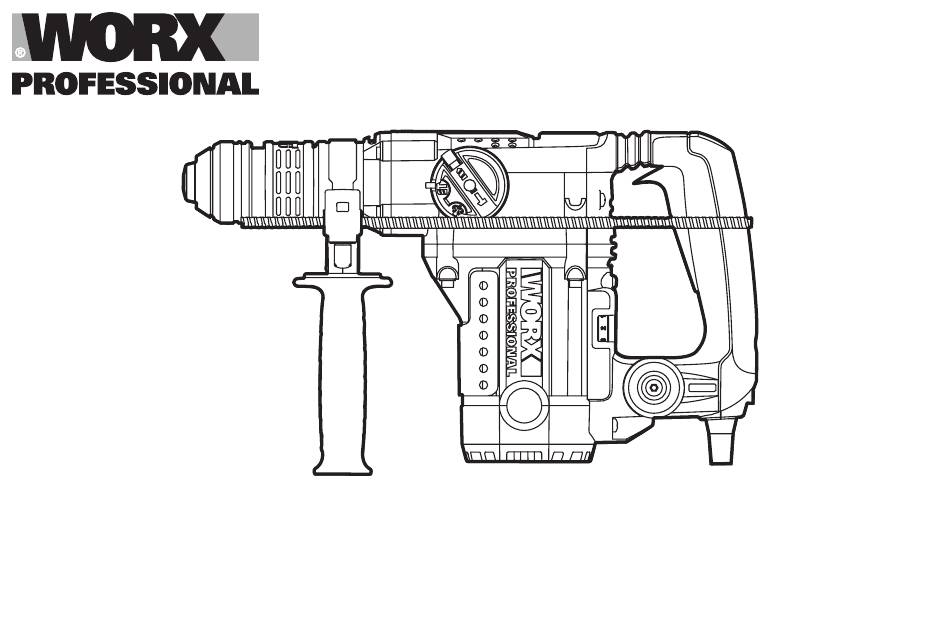

  • Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS RotaRy HammeR WU334...

  • Page 2: General Power Tool Safety

    General power tool safety c) do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. warnings d) do not abuse the cord. never use the cord for carrying, pulling or unplugging the power tool.
  • Page 3 the power tool may result in personal injury. poorly maintained power tools. e) do not overreach. keep proper footing and balance at all f) keep cutting tools sharp and clean. Properly maintained cutting times. This enables better control of the power tool in unexpected tools with sharp cutting edges are less likely to bind and are easier to situations.
  • Page 4 Symbols To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear dust mask Wear ear protection Double insulated Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

  • Page 5: Component List

    Component list SDS-plus chuck Depth gauge Function mode selection switch Grease box cover Anti-vibration handle On / off switch Thumbwheel switch for speed preselection/impact frequency preselection Auxiliary handle Not all the accessories illustrated or described are included in standard delivery.

  • Page 6: Technical Data

    Technical data Vibration information Type Wu334 (330~359-designation of machinery, Vibration total values (triax vector sum) determined according to • representative of Rotary Hammer drill) EN 60745: • Voltage 220-240V~50/60Hz Vibration emission value • =15.3m/s Power input 900W • Hammer drilling into concrete h,HD •...
  • Page 7 the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

  • Page 8: Intended Use

    Operating instructions note: Before using the tool, read the instruction book carefully. intended uSe The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. Warning! Before any work on the machine itself, pull the mains plug.
  • Page 9 attacHing and ReMoving tHe cHuck note: Ensure the Function Mode Selection Switch (3) is not in the chisel rotation mode( ) or the chuck cannot be removed. chuck icons: “ “unlock “ “lock 1) ReMoving tHe cHuck (See fig. B1) Firmly turn the Rotary Sheath(b) as far as possible in the direction noted by the unlock Icon“...
  • Page 10 uSing tHe dePtH gauge (See fig. c) The Depth Gauge(2) can be used to set a constant depth to the drill. Fit the drill bit into the chuck. Loosen the depth gauge by rotating the locking screw (c) anti-clockwise. Slide the depth gauge until the distance between the depth gauge end and the drill bit end is equal to the depth of hole/screw you wish to make.
  • Page 11 For drilling into steel, wood and plastics choose the Rotary drilling position. For simultaneous drilling and impacting of concrete or masonry, choose the Hammer drilling position. Chisel rotation position for adjustment of the chiselling position.(Non-work position) For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position.

  • Page 12: Overload Protection

    luBRication MacHine (See fig. f) The machine is grease-lubricated. A grease refill is only required during hammer work efficiency is low. Open the grease box lid at the top of the hammer using the pin spanner. Then refill approx 30g grease.

  • Page 13: Working Hints For Your Tool

    Working hints for your tool Trouble shooting Reduce the pressure on the drill bit when it is about to break through. The following table gives checks and actions that you can perform if This will prevent the drill from jamming. your machine does not operate correctly.

  • Page 14: Environmental Protection

    Environmental protection Plug replacement (UK & Ireland only) Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check If you need to replace the fitted plug then follow the instructions with your local authorities or retailer for recycling advice. below.

  • Page 15: Declaration Of Conformity

    Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description WoRX Rotary hammer Type Wu334 (330~359-designation of machinery, representative of Rotary Hammer drill) Function Hammering various materials Complies with the following directives, •...
