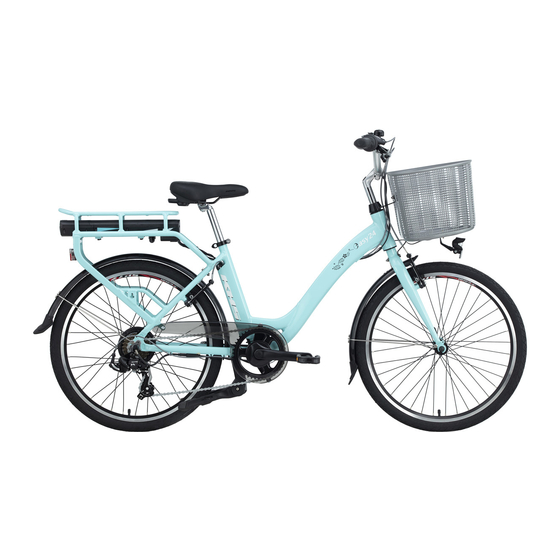

- Page 1 E-BIKE Easy 24 Envoy 200 Extended 2.0 Owner's Manual...
-
Page 2: Battery Installation Instructions
BATTERY INSTALLATION INSTRUCTIONS Press the switch the 'O' side to turn the battery OFF. Make sure the key is in the unlock position. With one hand holding the end of the battery and the other hand holding the end of the rear rack, slide and push the battery all the way into the battery rack. - Page 3 BATTERY REMOVAL INSTRUCTIONS For safety reasons and to meet regulation of international freight shipping, the lithium-ion battery was only partially charged, before being placed in sleep mode. Please fully charge the battery BEFORE the very first use. See page 4. Carefully read and follow all instructions and guidelines in this manual.
- Page 4 TURNING THE BATTERY ON Make sure the key is in the locked position and the battery is secure and stable in the rack. Once locked, pull out the key for safekeeping. We recommend keeping the spare key with the charger. Turn the battery power switch ON by turning it to the ( ) side.
-
Page 5: Charging The Battery
CHARGING THE BATTERY (a) Make sure the battery voltage is accordance Make sure the battery voltage is accordance with the charger. with the charger. 36V battery can only be charged by the 36V (42V) charger 1>36V battery can only be charged by 36V (42V) charger. 48V battery can only be charged by the 48V (54V) charger 2>48V battery can only be charged by 48V (54V) charger. - Page 6 CHARGING THE BATTERY Charger LED Indicator LED indicator (8) Red light indicates charging. Green light indicates fully charged. If after 8 hours of charging the LED indicator is still Red, please stop charging and contact the supplier for service.
-
Page 7: Battery Power Indicator
BATTERY POWER INDICATOR 」, push the When the battery power is turn on「 soft button (9) to activate the capacity meter. Flashing red light, means little or no power remaining. Needs to be charged. LED green bars indication 3 green lights = full energy capacity 2 green lights = mid energy capacity 1 green light = low energy capacity 1 steady red light = little or no energy remaining... -
Page 8: Battery Storage
"calendar fade". Performance also deteriorates with usage and this is known as "cycle fade". Follow these instructions to help extend the battery life and performance. Model / Battery / Charger Chart Model Battery Charger Easy 24 36(42)V Envoy 200 48(54)V Extended 2.0 48(54)V... -
Page 9: Lcd Operation
LCD OPERATION L CD OPERATION: On & Off Push for 1 second Push for 2 seconds LCD dashboard content description Power output and battery level indicators section (1) POWER output indicator: Each cell means 2A (current) of output (2) BATTERY level indicator: When the battery is empty, all six cells are blank and red light will flash. - Page 10 LCD OPERATION Power Assistance Level Indicator Section Push to increase power assistance level (0.1.2.3.4.5) Push to decrease power assistance level (5.4.3.2.1.0) Speed Indicator Selection : MPH vs. KM/H Push simultaneously for 2 seconds to change the speed unit between Miles Per Hour (MPH) and Kilometers Per Hour (KM/H).
- Page 11 LCD OPERATION Additional Information Section button briefly each time will cycle through Push the following functions： Screen cycles through the information modes automatically Odometer recorded by the system since the manual reset Time since the system was turned on Distance traveled since system was turned on Max Speed since system was turned on * NOTE 1: Distance and speed units will depend on the selected MPH or KM/H unit in the Speed Indicator section.
- Page 12 LCD OPERATION Throttle Push the throttle lever. The bike can start without pedaling. Walking Mode 3.8MPH (6Km/H) Press on control panel button for 2 seconds to start the walking mode. Button must be held to continue walking mode. Releasing the button will immediately stop the walking mode.
- Page 13 LCD OPERATION If shows up, there is an error. The indicated numeric codes are defined as follows: Error Definition Solution(s) code Voltage too low Charge battery, or replace. 48V is under 42V // 36V is under 32V 1. Check the brake to make sure it’s not stuck. Brake is stuck or shorted 2.
- Page 14 LCD OPERATION Controller temperature Power off and wait until the temperature decrease back to normal about 10 minutes. exceeds 158ºF (70ºC) 1. Is the connection between motor and controller loose or broken? Motor Hall is abnormal 2. Motor requires repair. 1.
- Page 15 NOTES...
- Page 16 KHS, Inc. 2840 E. Harcourt St. Rancho Dominguez, CA 90221 USA Tel: 310-632-7173, Press '2' khsbicycles.com...
