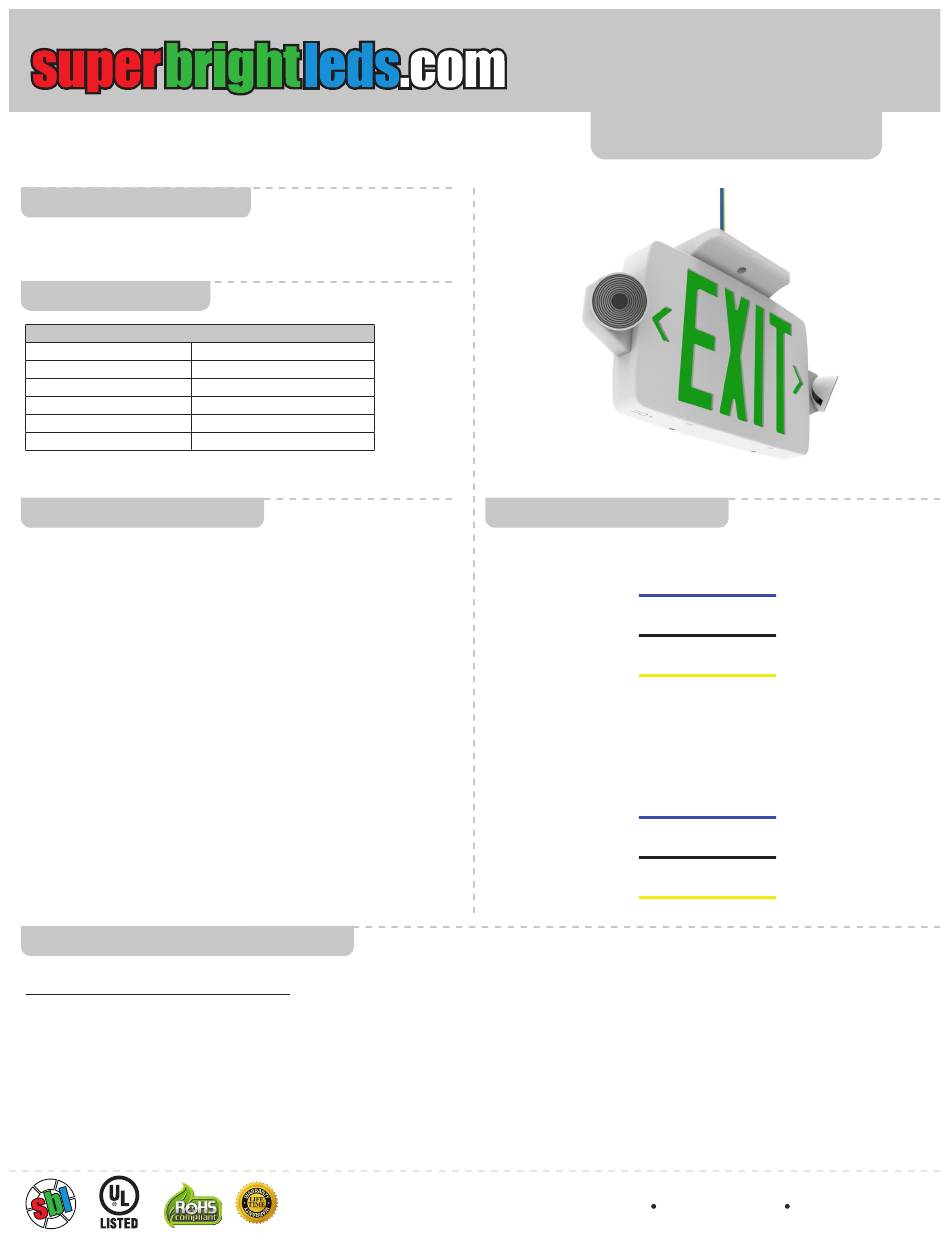

superbrightleds XSC Series User Manual

Important: Read all instructions prior to installation.
LED Exit and Emergency Light

Included Parts

1 - fixture
1 - hardware kit

Specifications

XSC-x
Total Power Consumption 3 Watts
Operating Voltage Range 120/277 VAC
Operating Temperature 23°–113° F (-5°–45° C)
Operating Humidity < 90%
Fixture Weight 1 lb 14 oz (0.85 kg)
Maximum Mounting Height 16 ft 9 in (5.11 m)

Safety and Notes

• This product should be installed and serviced by a certified electrician
in accordance with applicable national, state, and local building and
electrical codes.
• Light must be maintained, tested, and serviced in accordance with all
applicable National Fire Protection Association (NFPA) and local codes.
• To reduce the risk of electric shock, ensure that the main power source
and circuit breakers are switched off before performing any installation
or wiring procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of
the fixture. Failure to properly support fixture may result in damage or
injury, for which the manufacturer does not assume responsibility.
• Intended for indoor use only.
• Do not mount near radiant heat sources/heaters.
• Use caution when handling or servicing the battery pack.
• Do not break UL sticker seal.
Converting for Dual-Sided Operation
Converting for Dual-Sided Operation
1. Carefully remove the "EXIT" panel using a flat-head
screwdriver to release tabs.
2. Carefully remove the blank real panel using a flat-head
screwdriver to release four tabs around outside and two
inner tabs.
3. Install additional "EXIT" panel in place of blank panel.
¹Limited 2-year warranty on battery.
¹
4400 Earth City Expy, St. Louis, MO 63045
User Manual

Wiring Diagram

120 V Wiring
Blue
Black
Yellow
277 V Wiring
Blue
Black
Yellow
XSC-x
XSC-G
Neutral
120 V Power
Cap
Neutral
Cap
277 V Power
Rev Date: V2 04/09/2020
