Z H ⁄ 用户手册  ⁄  组装说明 
E N ⁄ Instructions for use ⁄ assembly instructions
A XOR 250 1jet
35287007
A XOR 300 1jet
35302007
A XOR 250⁄250 1jet
35309007
02
A XOR 300⁄300 1jet
03
35317007
I N S T A L L A T I O N

Advertisement

loading
Need help?

Need help?

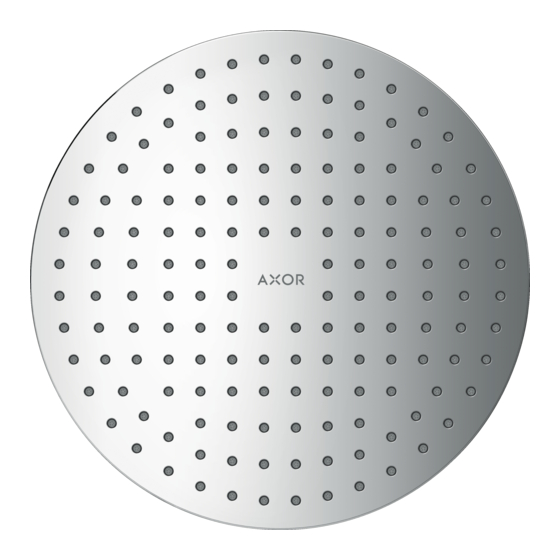

Do you have a question about the AXOR 250 1jet 35287007 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axor AXOR 250 1jet 35287007

  • Page 1 A XOR 250 1jet 35287007 A XOR 300 1jet 35302007 A XOR 250⁄250 1jet 35309007 Z H ⁄ 用户手册  ⁄  组装说明  A XOR 300⁄300 1jet E N ⁄ Instructions for use ⁄ assembly instructions 35317007 I N S T A L L A T I O N...
  • Page 2 安全技巧 符号说明 装配时为避免挤压和切割受伤,必须戴上手套。   请勿使用含有乙酸的硅胶! 本产品只允许作为洗浴、卫生和洁身之用。   大小 (参见第页 08) 头顶花洒夹持杆只为夹持头顶花洒而设计,不得   让其承载其它物品! 流量示意图 (参见第页 09) 不得让儿童和肢体、精神和⁄或意识有障碍的成人   备用零件 (参见第页 15) 在不受监管的情况下使用淋浴系统。受酒精或毒 品影响的人员不得使用淋浴系统。 电位均衡 (参见第页 06) 必须避免让身体敏感部位 (如眼睛) 接触到莲蓬头   清洗 (参见第页 10) 喷水。必须保持莲蓬头与人头之间有足够的距 离。 操作 (参见第页 09) 花洒必须按照 DIN DIN VDE 0100 部分 701 第    701.415.2 节的要求连接到线路中。 安装提示 ⁄ 安装前必须检查产品是否受到运输损害。 安装后 将不认可运输损害或表面损伤。 ⁄ 管道和阀门必须根据通用标准进行安装、冲洗和 检查。 ⁄ 请遵守当地国家现行的安装规定。...
  • Page 3 S A F E T Y N O T E S T E C H N I C A L D A T A Gloves should be worn during installation to prevent Operating pressure: max. 0,6 MPa crushing and cutting injuries. Recommended operating pressure: 0,25 - 0,4 MPa (1 MPa = 10 bar = 147 PSI) The product may only be used for bathing, hygienic Hot water temperature: max. 60°C and body cleaning purposes. Thermal disinfection: 70°C ⁄ 4 min The arm of the shower head is intended only to hold The product is exclusively designed for drinking water! the shower head. Do not load it down with other objects!
  • Page 4 35363187 SW 13 mm...
  • Page 5 SW 3 mm SW 13 mm...
  • Page 6 Ø 4 mm² SW 10 mm SW 24 mm Armaturenfett Grease 滑油 SW 3 mm SW 3 mm...
  • Page 7 Armaturenfett Grease 滑油 CLICK...
  • Page 8 A XOR 300 1jet 35302XX7 G1/2 G1/2 Ø 300 A XOR 250 1jet 35287XX7 G1/2 G1/2 Ø 250 A XOR 300⁄300 1jet 35317XX7 G1/2 G1/2 A XOR 250⁄250 1jet 35309XX7 G1/2 G1/2...
  • Page 9 A XOR 250 1jet A XOR 250⁄250 1jet A XOR 300 1jet A XOR 300⁄300 1jet 35287XX7 35309XX7 35302XX7 35317XX7 0,60 0,60 0,55 0,55 0,50 0,50 0,45 0,45 0,40 0,40 0,35 0,35 0,30 0,30 0,25 0,25 0,20 0,20 0,15 0,15 0,10 0,10 0,05 0,05 0,00 0,00 9 12 15 18 21 24 27 30 9 12 15 18 21 24 27 30 Q = l/min Q = l/min...
  • Page 10 ⁄ ⁄ ⁄ ⁄ ⁄ Hansgrohe Hansgrohe ⁄ www.hansgrohe-int.com/guarantee ⁄ ⁄ ⁄ Q U I C K C L E A N QuickClean ⁄ ⁄ QUICK CLEAN...
  • Page 11 C L E A N I N G R E C O M M E N D A T I O N F O R ⁄ After cleaning rinse thoroughly with clean water to H A N S G R O H E P R O D U C T S remove any cleaner residue.
  • Page 13 max. 10 min CLICK...
  • Page 15 XX = 颜色代码 ⁄ Colors A XOR 250 1jet 35287XX7 00 = Chrome A XOR 250⁄250 1jet 02 = Polished Chrome 35309XX7 13 = Polished Bronze A XOR 300 1jet 14 = Brushed Bronze 35302XX7 25 = Brushed Gold-Optic A XOR 300⁄300 1jet 26 = Brushed Chrome 35317XX7 30 = Polished Redgold 31 = Brushed Redgold 33 = Polished Black Chrome 34 = Brushed Black Chrome 80 = Stainless Steel Optic 82 = Brushed Nickel 93402000 83 = Polished Nickel 93 = Polished Brass SW 10 mm 95 = Brushed Brass...
  • Page 16 A XOR ⁄ Hansgrohe SE Auestraße 5–9 77761 Schiltach Deutschland info@axor-design.com axor-design.com...
