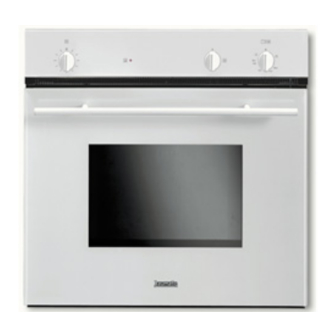

- Page 1 B602.1/B604.1/ B609.1 60 cm Gas fan-assisted oven...
- Page 2 User Manual for your Baumatic B602.1BL/W B604.1SS B609.1SS 60 cm Gas fan-assisted oven NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Switching the gas grill on Operation of the fan Cooking guidelines Warnings Setting a countdown time (B609.1SS only) Using the minute minder (B602.1 & B604.1 only) The oven light Cleaning and maintenance Replacing the oven bulb Removing the oven door for cleaning... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
Your new appliance is guaranteed against electrical or mechanical defects, subject to certain exclusions that are noted in Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic Service Engineers or their authorised service agent. - Page 6 This appliance complies with all current European safety legislation. Baumatic do wish to emphasise that this compliance does not remove the fact that the appliance surfaces will become hot during use and retain heat after operation. Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time.
- Page 7 oven door when it is open, as this can cause damage to the oven door hinges. Nobody should be allowed to sit or stand on any part of the oven. o Do not heat up unopened food containers, as pressure can build up which may cause the container to burst.
- Page 8 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 9: Specifications
Specifications (IMPORTANT: The above drawing does not show the ventilation requirements that are necessary for installing this appliance, please refer to the installation instructions for this information). Product Dimensions Height: 591 mm Width: 597 mm Depth: 525 mm Cooling fan o A tangential cooling fan is fitted inside of this appliance, to make the internal temperature of the oven stable and the external surface temperature lower. -
Page 10: Standard Accessories
o Removable side racks o 2 x safety shelves o Enamelled drip tray with handle o Trivet o LPG conversion jets Optional extras o BPS1 Pizza stone Electrical details Rated Voltage: Supply Connection: Fuse rating: Max Rated Inputs: Mains Supply Lead: For future reference please record the following information which can be found on the Rating Plate and the date of purchase which can be found on your sales invoice. -
Page 11: Control Panel
Control Panel B602.1/B604.1 B609.1... -
Page 12: Before First Use
o To remove any residue from the oven that may have been left from the manufacturing process, you should select the gas oven and set it to its maximum temperature setting. o It is perfectly normal for a smell to be produced during this process. -
Page 13: Switching The Gas Oven On
Switching the gas oven on The oven has electric ignition, to light it you should do the following:- o Open the door of the appliance. o Push the oven function and temperature control knob down slightly and then turn it anticlockwise to the word MAX. o Whilst it is pointed to the MAX position, fully push down this knob and hold it down. -
Page 14: Switching The Gas Grill On
Switching the gas grill on The grill has electric ignition, to light it you should do the following:- o Whilst it is pointed to the grill symbol, fully push down this knob and hold it down. o The gas grill should light within 15 seconds. o Once the burner has lit, continue to keep the oven function and temperature control knob held down for a further 10 seconds. -
Page 15: Operation Of The Fan
If the cooling fan does not operate and there is still power to the appliance, then DO NOT continue to use the appliance. Switch the oven off and contact the Baumatic Service Department to arrange for an engineer to attend the appliance. -
Page 16: Warnings
o Keep the oven door open when using the grill function and make sure that the grill deflector is fitted. o Do not use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil under the grill. The high reflectivity of the foil could potentially damage the grill element. -
Page 17: Setting A Countdown Time (B609.1Ss Only)
o Press button (C) and the numbers on the timer display will begin to advance and a symbol will illuminate. o Use buttons (B) and (C) to adjust the time on the timer display, until it shows the length of time that you want the oven to countdown for. -
Page 18: Using The Minute Minder (B602.1 & B604.1 Only)
The minute minder can be used independently of an oven cooking function for a time period of up to 60 minutes. o To set the timer, turn the knob fully clockwise until it stops and then turn it back anticlockwise to the required time. o The time period that has been set will expire when the control knob reaches zero, a brief audible signal will sound. -
Page 19: Cleaning And Maintenance
Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. -
Page 20: Replacing The Oven Bulb
IMPORTANT: The oven must be disconnected from your mains supply before you attempt to either remove or replace the oven bulb. o Remove all oven shelves and the drip tray to make it easier to access the bulb. o Remove the light cover by turning it anti-clockwise. o Unscrew the bulb clockwise and remove it from its holder. -
Page 21: Removing The Oven Door For Cleaning
To facilitate the cleaning of the inside of the oven and the outer frame of the oven, the door can be removed as follows:- o The hinges (A) have two movable bolts on them (B). o If you raise both of the movable bolts (B), then the hinges (A) are released from the oven housing. -
Page 22: Removing The Inner Door Glass For Cleaning
o Do not use any abrasive cleaner that could cause damage. o Remember that if the surface of the glass panel becomes scratched, this could lead to a dangerous failure. o To facilitate cleaning, the door glass can be lifted out after removing the fixing screws and turning the metal stoppers that hold the glass in position. -
Page 23: Positioning
on the terminal block, in order to gain access to the contacts inside. Make the connection, securing the cord in place with the cable clamp provided and then immediately close the terminal block cover again. o If you have to change the oven power cord, the earthing (yellow/green) conductor must always be 10 mm longer than the line conductors. -
Page 24: Installing The Oven Into The Kitchen Cabinet
Installing the oven into the kitchen cabinet Positioning the appliance o Ensure that the aperture that you will be fitting the oven into is of the size given in the above diagram. o The oven must be fitted into an oven housing with the ventilation cut-outs shown in the “Ventilation requirements”... -
Page 25: Ventilation Requirements
o You should remove the rear panel of the housing unit before attempting to install the oven. A full depth shelf must be incorporated into the housing and positioned 50 mm below the support shelf for the appliance. o A minimum ventilation gap of 90 mm must be allowed between the rear of the support shelf and the rear of the housing unit. - Page 26 o Remove the horizontal strengthening support at the upper front housing unit. o If your housing unit incorporates a domestic lower drawer, this must be made non-functioning with a ventilated false front. o A 5 mm ventilation gap must be allowed between the top of the appliance and the underside of the worktop.
-
Page 27: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Technical Department. o The oven must be installed by a qualified person, in accordance with the current edition of the Gas Safety (Installation and Use) Regulations and the relevant building/I.E.E. -
Page 28: Gas Safety (Installation And Use) Regulations
natural ventilation holes. o Prolonged intensive use of the appliance may call for additional ventilation. o This oven is not fitted with a device for discharging the products of combustion. Ensure that the ventilation rules and regulations are followed. o Your oven must stand on a flat surface so that when it is in position the oven is level. -
Page 29: Gas Connection
ALL INSTALLATION AND SERVICE WORK MUST BE CARRIED OUT BY A CORGI REGISTERED ENGINEER. o Prior to in stallation, ensure that the gas supply conditions (nature of the gas and gas pressure) and the adjustment conditions are compatible. The adjustment conditions for this appliance are stated on the rating plate which can be found on the back cover. -
Page 30: Gas Adjustment (Conversion To Lpg And Gas Adjustment)
IMPORTANT: Your appliance must be disconnected from the electric and gas supply before completing this process. Power inputs Natural Gas Oven 2.74 kW (injector size 115) 2.74 kW (injector size 80) Grill 2.4 kW (injector size 115) 2.4 kW Gas details Gas Connection Type: Gas Type (Natural Gas G20): Primary air gap (Natural Gas G20):... - Page 31 o Re-fix the grill burner, no further adjustments are necessary. o Disconnect the neon lamp at the rear of the fascia and then remove the control panel front. Then refit the thermostat control knob. o Ensure that the appliance is in a safe condition, and then reconnect it to the electric and gas supply.
-
Page 32: My Appliance Isn't Working Correctly
achieved. o Refit the control knob, then turn it to the Max position and then back to Min several times, checking that the flame is maintained. o Fully open and close the oven door several times and check that the flame is maintained. o Turn the appliance off and disconnect it from the gas supply. - Page 33 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee document on page 34 of...
-
Page 34: Baumatic Ltd. Conditions Of Guarantee
Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 35: Contact Details
Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone...
