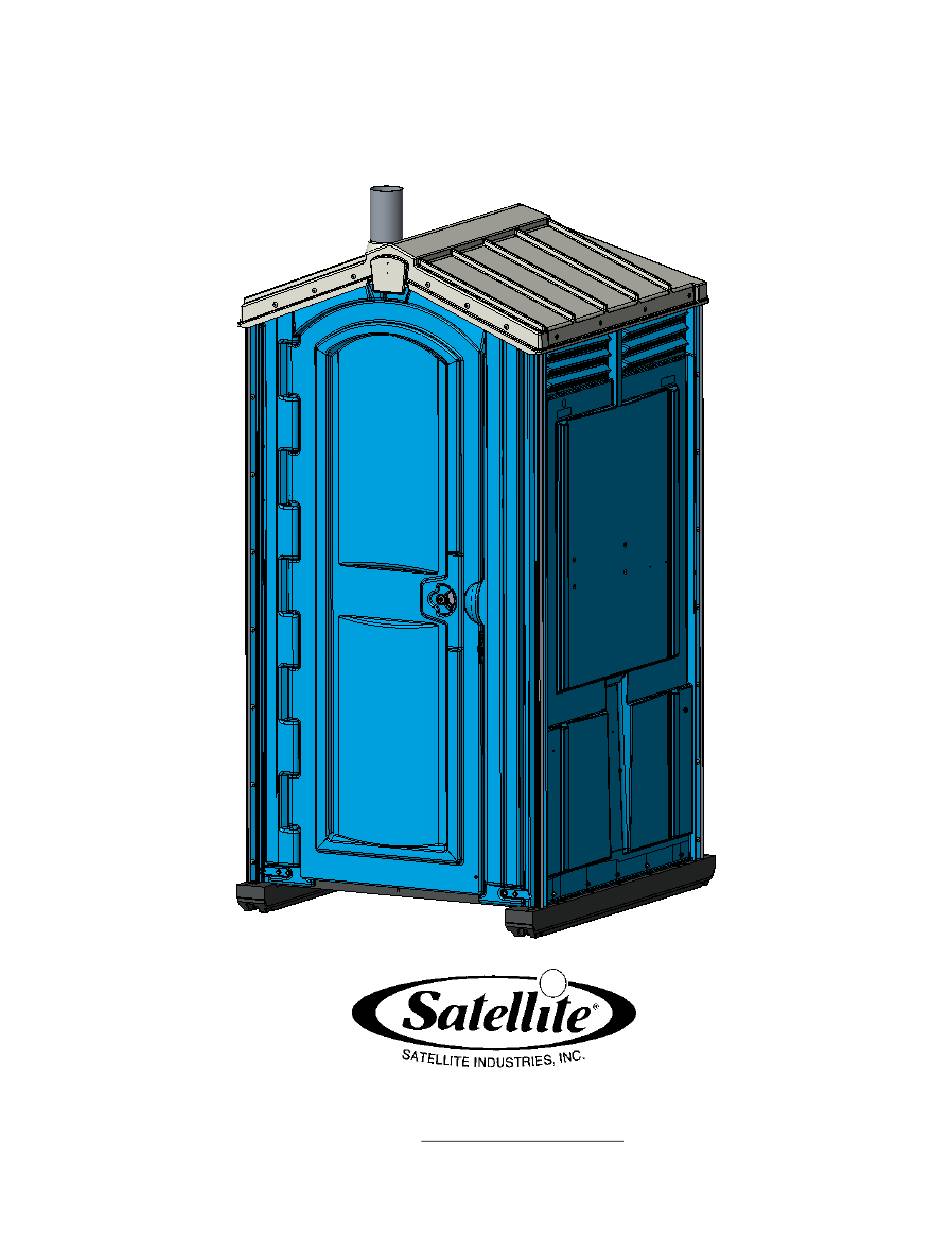

Assembly Instructions Global II Portable
Restroom T Extrusion Molding
(2018)
2530 Xenium Lane North, Minneapolis, MN 55441
Telephone: 763-553-1900 / Fax: 763-553-1905
800-328-3332/ www.satelliteindustries.com
The Most Rugged Portable Restroom and Parts in the Industry!
10/18/2018
40242 REVC
1
Advertisement
Related Manuals for Satellite Global II
Summary of Contents for Satellite Global II
- Page 1 Assembly Instructions Global II Portable Restroom T Extrusion Molding (2018) 2530 Xenium Lane North, Minneapolis, MN 55441 Telephone: 763-553-1900 / Fax: 763-553-1905 800-328-3332/ www.satelliteindustries.com The Most Rugged Portable Restroom and Parts in the Industry! 10/18/2018 40242 REVC...
- Page 2 NOTE: 1. Item #2 Bolt (22384) used only with Item # 1A Base Blowmolded (22234), also Item #2 Bolt (22384) QTY (6) Replaces Item #20 (13860) QTY (6). 10/18/2018 40242 REVC...
- Page 3 Tools Needed: 1. Drill / Driver 2. #10 Drill Bit 3. Rivet Gun 4. Phillips Screw Driver 5. 7/16” Nut Driver Bit 6. 1/4" Drill Bit Step 1: Assemble (3) side panels together using T extrusion: *Tip: may help to place panel on table or a stack of tanks before assembly. Slide T Extrusion between (2) panels.
- Page 4 Step 2: Assemble base to side panels: 1. Butt bottom of rear panel up against runners. Align rear panel center hole with center mark on base & fasten with Screw #13860. Finish remaining (4) holes. 2. Align side panel’s center holes with grooves on base sides down to top of base runner and fasten with Screws #13860. If using Blowmolded base: Step 2: Assemble Blowmolded Base to side panels Butt bottom of the rear panel up against the runners.
- Page 5 Step 3: Fasten Tank to Unit: 1. Position tank against the back wall and attach the tank starting with each side. Have (1) person stand in tank while lagging panels to tank. This ensures that the tank is in the correct position. Tighten screws #13860 until rubber washer begins to flatten.
- Page 6 Step 5: Assemble Urinal to unit: 1. Using #10 Drill Bit, Drill (2) holes in side panel at dimples. 2. Insert round tube of Urinal in tank urinal hole. 3. Fasten with (2) rivets #11054 and (2) washers #11315. Washers are installed on inside of Urinal. in dimple located on back of tank collar.
- Page 7 Step 7: Assemble coat hook to doorframe. 1. Drill at dimple using #10 drill bit and fasten Coat Hook to the frame using Rivet #17436. Step 8: Install Door Handle. 1. Assemble Door Handle to Door using (1) Screw #40052, (1) Washer Fender #11360, on the outside of front and (1) Handle #40057, (1) Washer Flat #12382 and (1) Nut #16307 on inside of front 2.
- Page 8 Step 10: Assemble Front to base (DIRT BUSTER BASE): 1. Fasten Front to Dirt Buster Base use (6) screws #13860 through pre-drilled holes in bottom of door frame. Note (2) of the pre-drilled holes are behind door, the door must be opened to install screws. 10/18/2018 40242 REVC...
- Page 9 Step 10: Assemble Front to base (BLOWMOLDED BASE): 1.Fasten Front to Blowmolded Base install (2) bolts # 22384 into middle holes ( see diagrams below). 2.Install (4) screws #13860 through pre-drilled holes in bottom of door frame. Note (2) of the pre-drilled holes are behind door, the door must be opened to install screws Screw #13860 Bolt #22384 10/18/2018...
- Page 10 Step 11: Assemble Roof to unit. 1. Place roof on top of unit. Fasten roof to unit using (18) Rivets #11030 and (18) Washers #11315 around the roof. Washers are installed on inside of unit. Step 12: Assemble Vent Pipe to unit. 1.
